Overview
4
ACR-5100 Acendo Core Administrators Guide
The rear panel features one 3.5mm mini-phono connector for stereo audio output jack with the right channel on the ring and the
left channel on the tip.
Microphone Audio Input
The rear panel features one 3.5mm mini-phono connector for audio Input jack with the right channel on the ring and the left
channel on the tip. This can be used to connect to AMX’s Alero 8-channel microphone mixer for conference room meetings.
Wireless
Included in the Acendo Core device is a built-in IEEE 802.11 a/b/g/n/ac plus Bluetooth 4.0 wireless network card.
The wireless card also supports Miracast communications for screen and content sharing. Miracast™ is a groundbreaking solution
for seamlessly displaying multimedia between devices, without cables or a network connection. Users can do things like view
pictures from a SmartPhone on a big screen television, share a laptop screen with the conference room projector in real-time, and
watch live programs from a home cable box on a tablet.
Specifications
The following table lists the specifications for Acendo Core:

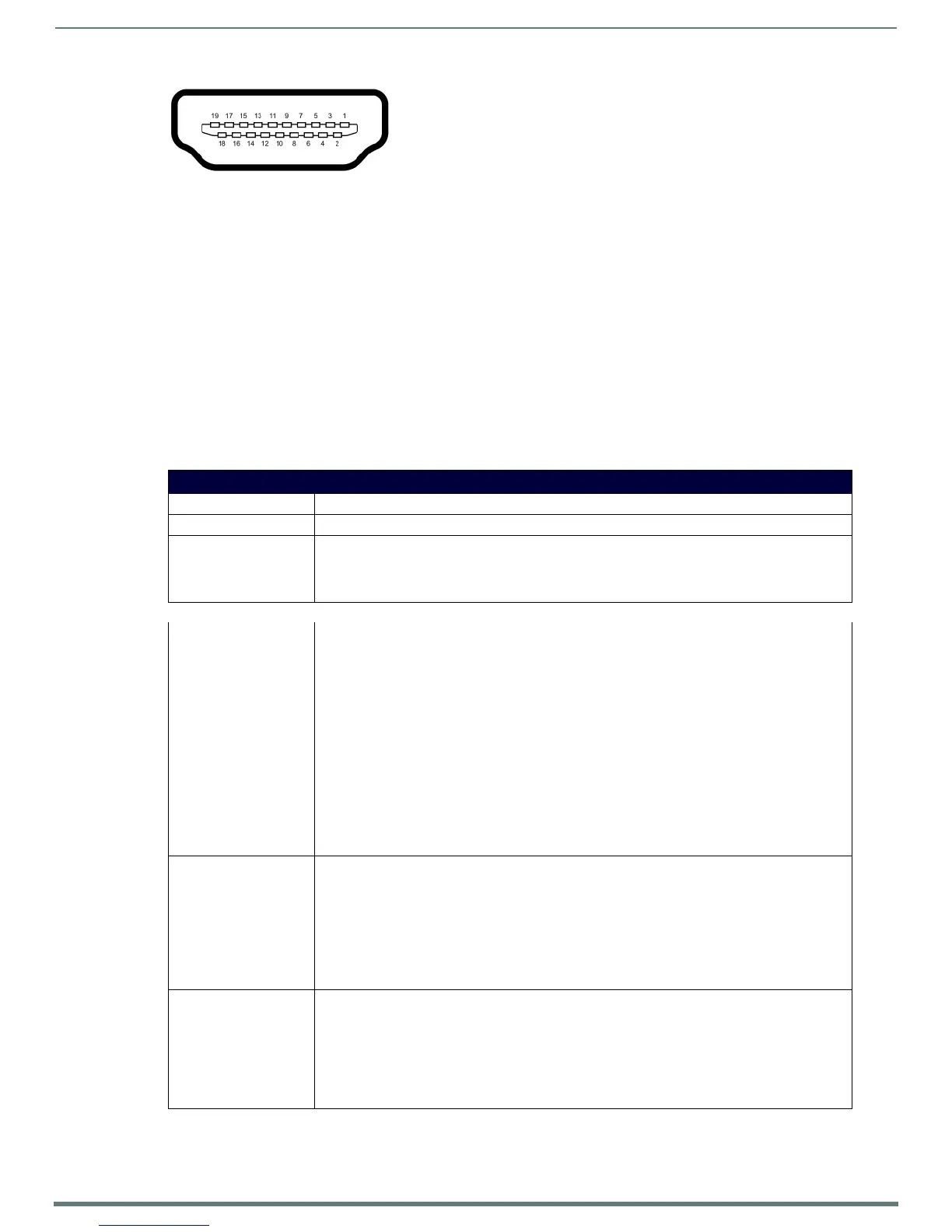

FIG. 6
HDMI Pin-outs
ACR-5100 Specifications
Dimensions: 1.37” x 7.06” x 7.937” (34.8mm x179 mm x 201.6 mm) H x W x D
Weight: 1.1 lbs. (1.1 kg) TBA
Mounting Options Surface Mount: Wall-Mount racket included
Rack Mount Adapter: NMX-MM-RKA, Acendo Core Rack Mount Adapter (FG3211-60), not included.
The rack mount adapter is designed for use with V Style Rack Mounting Tray (FG1010-720/721)
and V Style Rack Mounting Shelf (FG3201-60), also not included
Continued
Regulatory Compliance: FCC - 47 CFR Part 15, Subpart B, Class B/IEEE ANSI C63.4-2014
•IC
CE EN 55022 Class A
CE EN 55022 Class B
CE EN 55024
CE EN 60950-1
UL 60950-1
IEC 60950-1
IEC 61000-4-2-2008
•C-Tick
•VCCI
•RoHS
•REACH
•WEEE
Power Requirements: Power Consumption: 60W (Max)
Input voltage: 100 – 240Vac
Rated Output current: 5.417A
Rated Output Voltage: +12 VDC
Connector: 5.5mm barrel connector
External universal power supply with AC-DC converter brick, 100/240 VAC, 50/60 Hz, included.
Power Indicator: (1) LED (red/green), solid red at start of boot, blinking green during boot, solid
green after boot is complete
Environmental: Operating Temperature: 32° to 104° F (0° to 40° C)
Storage Temperature: –4º to 158º F (–20º to 70º C)
Rated Altitude: 5000 Meters
Operating Humidity: 5% to 85%, non-condensing
Storage Humidity: 5% to 90%, non-condensing
S/N (Signal-to-Noise) ratio, input to output, 90dB (weighted)
Audio Total Harmonic Distortion plus Noise (THD+N), input to output, 0.01%.
