Anderson Group Self-loading Bale Carrier TSR-3450 – Operator's Manual 29
4.2 Bale Guide
Bale guides prevent bales from falling when loading and transporting. They must be adjusted based
on the width of the bales being transported.
NOTE: There is no set rule foradjusting bale guides. The oper-
ator must determine which adjustment (position of
each bale guide and distance between them) is best
for the size of the bales being loaded.

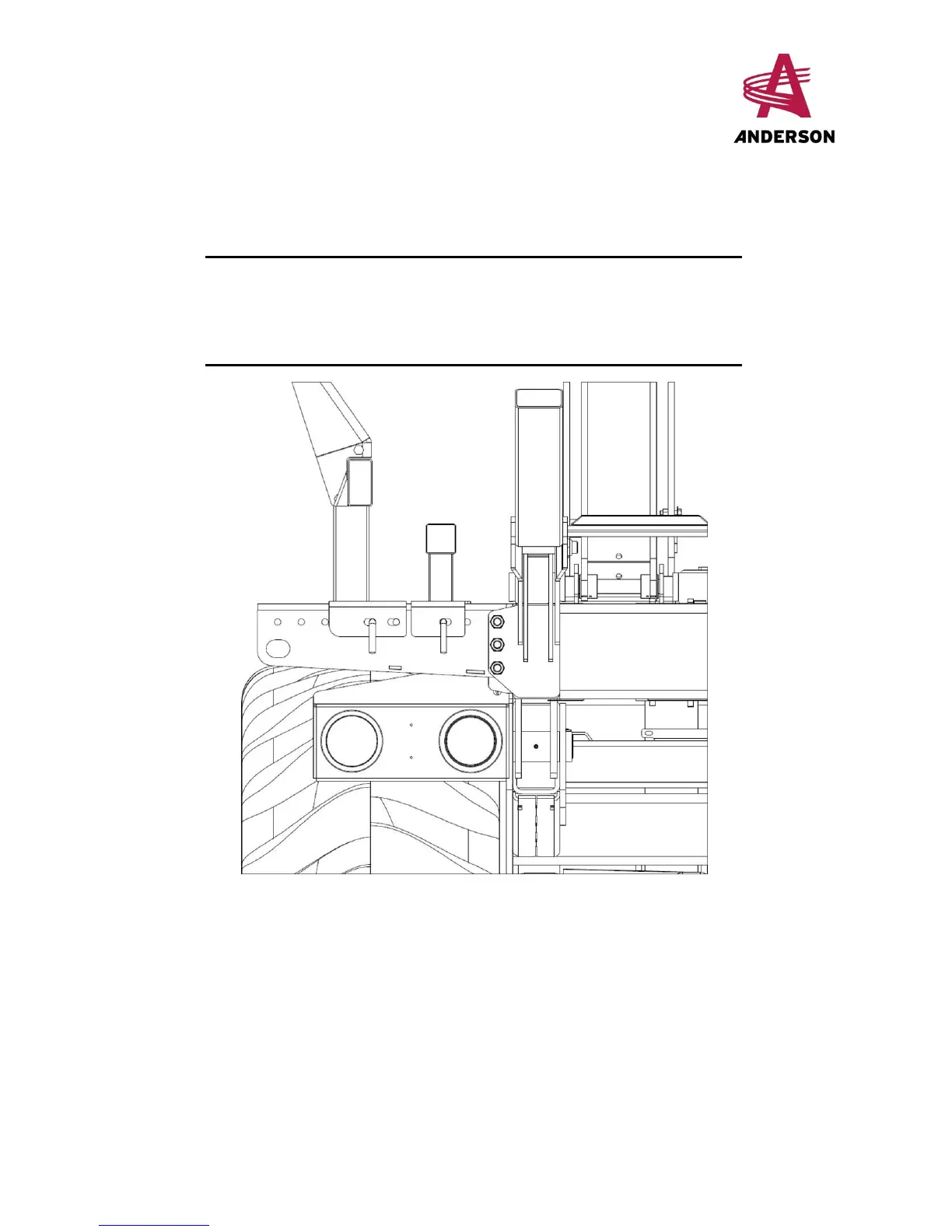

Figure 7– Bale Guide Adjustment
4.3 Grabber Width
The distance between the grabber arms may be modified to handle bales 80 cm or 120 cm (32 in or
48 in) wide. Two grabber widths are possible and depend on the holes in which the pins (A) are inser-
ted (see Figure 8 – Grabber Width).
