Anderson Group Self-loading Bale Carrier TSR-3450 – Operator's Manual 39

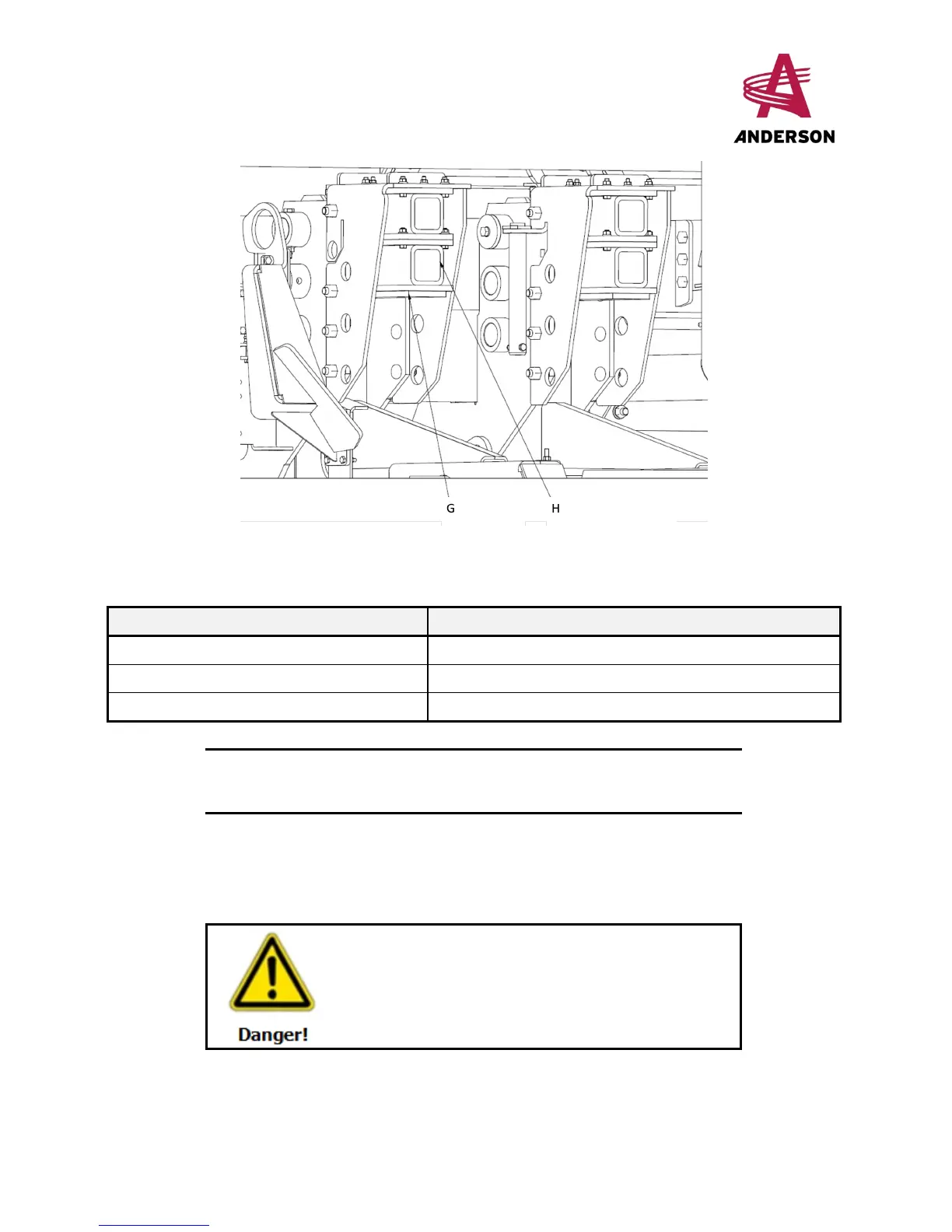

Figure 16- Loading Arm Travel Limit Adjustment
Table 5- Travel Limit Adjustment
Loading Arm Position Travel Limit Height
Upper Position Travel Limit (G) Alone
Central Position Travel Limit (G) and One Spacer (H)
Lower Position Travel Limit (G) and Two Spacers (H)
NOTE: Spacers are provided with the bale carrier, but they are
not installed at delivery.
4.7 Barrier Height
Barrier height must be adjusted based on the loading arm position. The higher the arm is attached
on the bale carrier, the higher the barrier must be.
The barrier is very heavy. In order to avoid
risks of injury, use a suitable lifting device to
hold the barrier while adjusting it.
In order to adjust the barrier (A), proceed as follows:
