40 Operator's Manual – Self-loading Bale Carrier TSR-3450 Anderson Group
1. Remove the 11 bolts (B) (6 for the right post and 5 for the left one) holding the barrier in
place.
2. Pull on the two barrier posts to free it from its base.
3. Replace the barrier at the desired height by inserting the ends of the posts in the appropriate
holes in the base (C).
4. Re-attach the bolts.

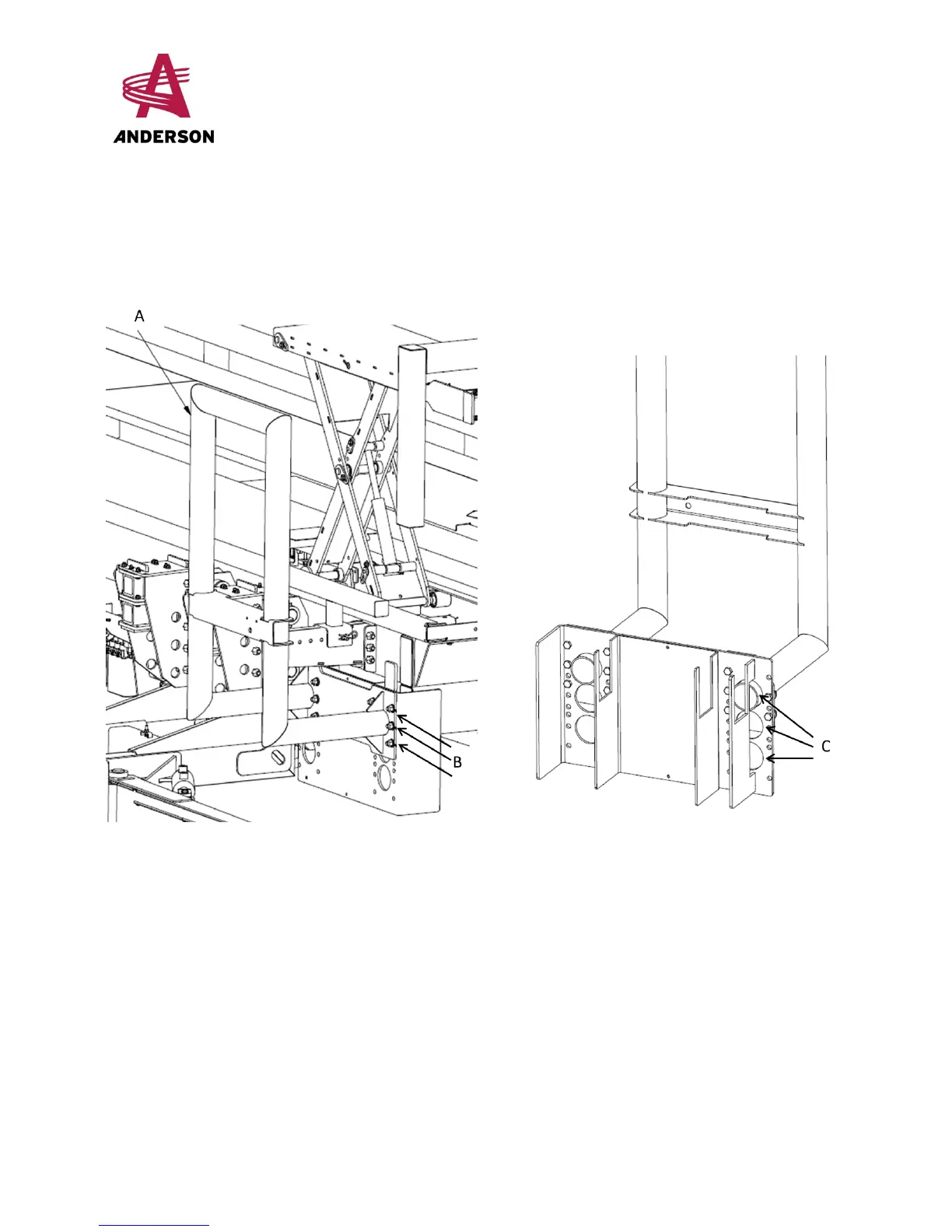

Figure 17- Barrier Adjustment
4.8 Pusher Frame Height
Pusher frame height must be adjusted based on bale height. In order to adjust the pusher frame
height, proceed as follows:
1. Remove the four bolts (A) holding the two pusher frame parts together.
2. Raise or lower the upper pusher frame part (B) to the appropriate height:
l 70 cm (27 in) tall bales: lower adjustment
l 90 cm (36 in) tall bales: upper adjustment
3. Replace the bolts to attach the pusher frame at this height.
