24 Operator's Manual – Self-loading Bale Carrier TSR-3450 Anderson Group

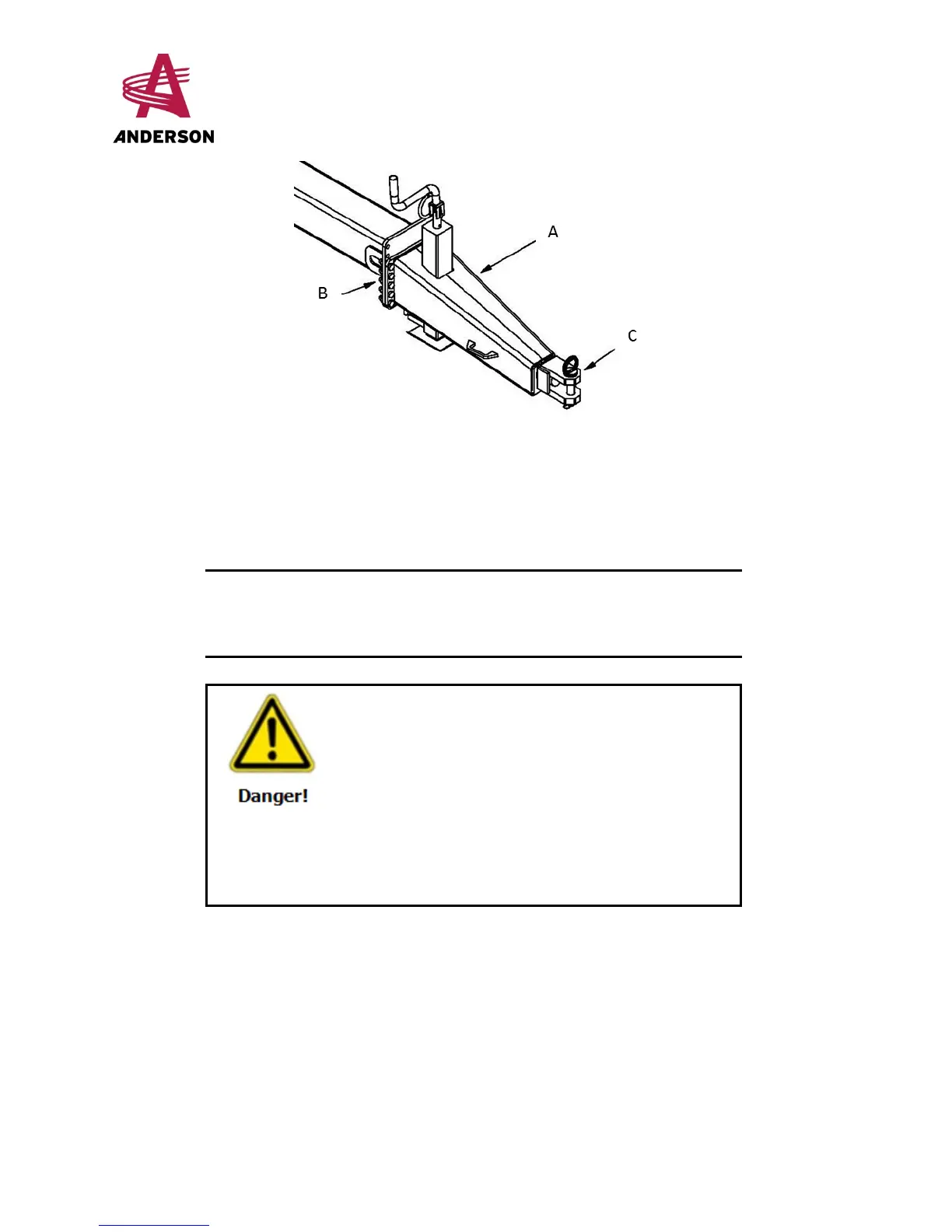

Figure 5– Drawgear Head Adjustment
1. With the connecting pin (C), hitch the bale carrier to the tractor’s drawbar.
2. Lock the connecting pin with the detent pin.
3. Connect the safety chains between the bale carrier and the tractor using the anchoring
points provided for this purpose.
NOTE: If you are driving on public roads, you must comply
with applicable identification and lighting regulations in
your area.
Before moving or using the machine, check
that the machine is correctly hitched to the
tractor, the safety chains are securely
fastened, and that there is no risk of the con-
necting pin falling.
If hitching is not done properly, the machine
may unhook during transport or use. This
could cause injury to the operator or other
people or damage the tractor or machine.
3.2 Hydraulic and Electrical System Hook-up
1. Hook-up the four (4) hydraulic hoses to the tractor.
