38 Operator's Manual – Self-loading Bale Carrier TSR-3450 Anderson Group

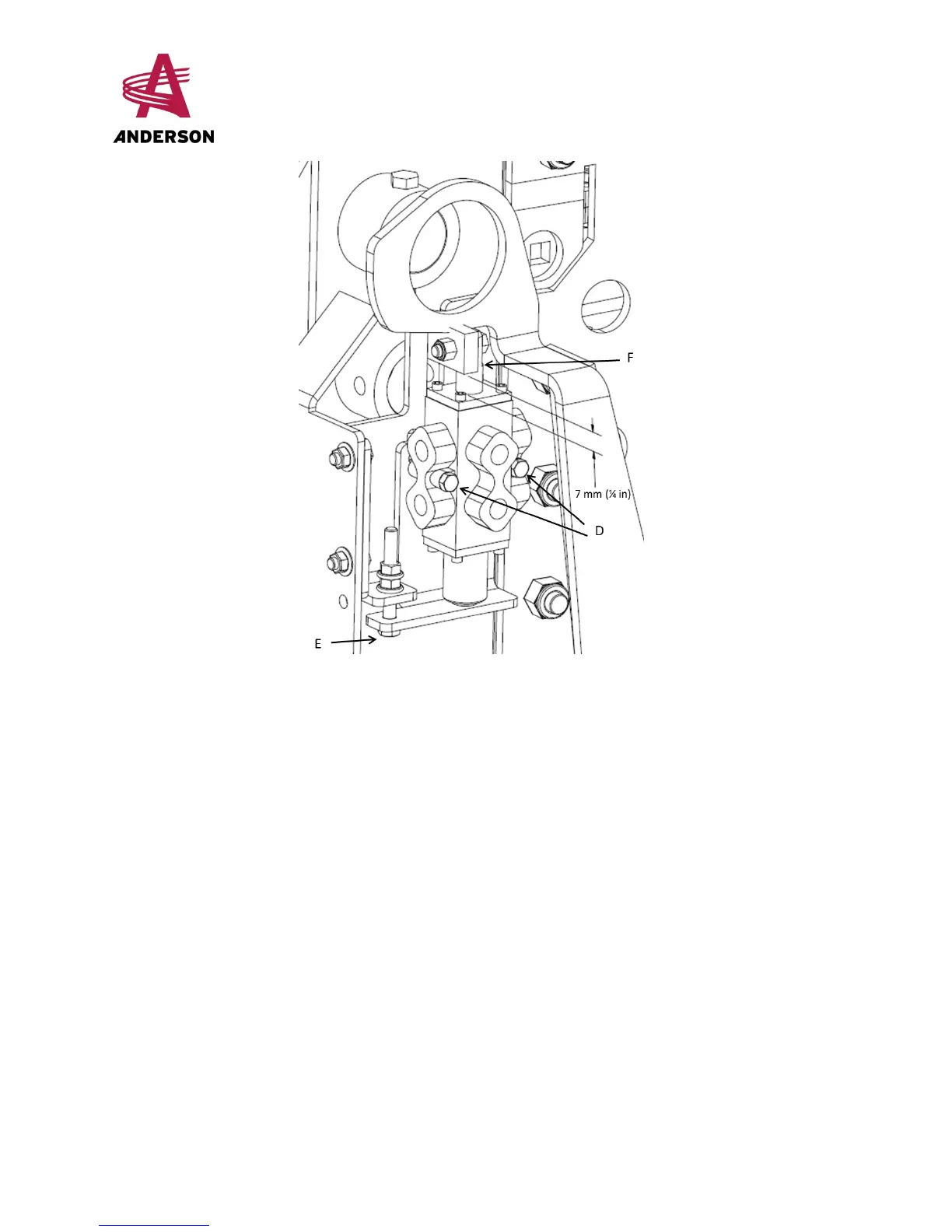

Figure 15- Diverter Valve Adjustment
13. As needed, adjust the loading arm travel limit height:
A. Unscrew the bolts holding the loading arm travel limits (G) in place (see Figure 16 -
Loading Arm Travel Limit Adjustment).
B. Add or remove spacers (H) so the travel limit height corresponds to the loading arm
height (see the indications in the next table).
C. Re-attach the travel limits.
