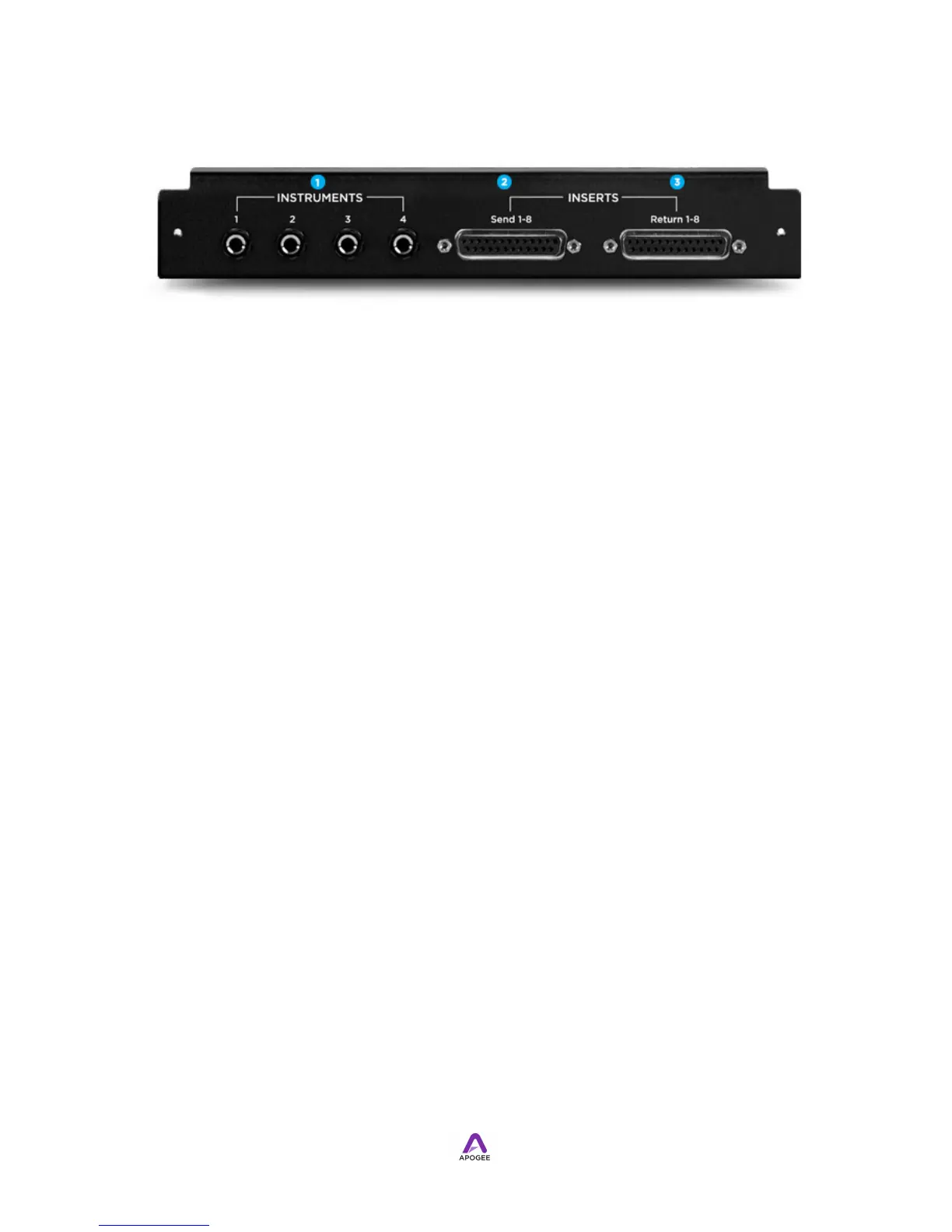

Mic Pre I/O Module
1. INSTRUMENTS 1-4 - These 1/4" TS connectors accept input from a wide range of
instruments, including keyboards, guitars and other electronic instruments. The
input impedance is high enough to avoid the loading of input sources such as
passive electric guitars and basses.
2. INSERTS Send 1-8 - This DB-25 connector provides 8 analog balanced line level
sends routed after each channel's mic preamp stage. See Analog OUT Pinout for
detailed wiring information.
3. INSERTS Return 1-8 - This DB-25 connector aceepts 8 analog balanced line level
returns routed before each channel's A/D conversion stage. See Analog IN Pinout
for detailed wiring information.Use the INSERT sends and returns to insert analog
line level gear (such as compressors and equalizers) between a channel's mic
preamp and A/D conversion stage.
