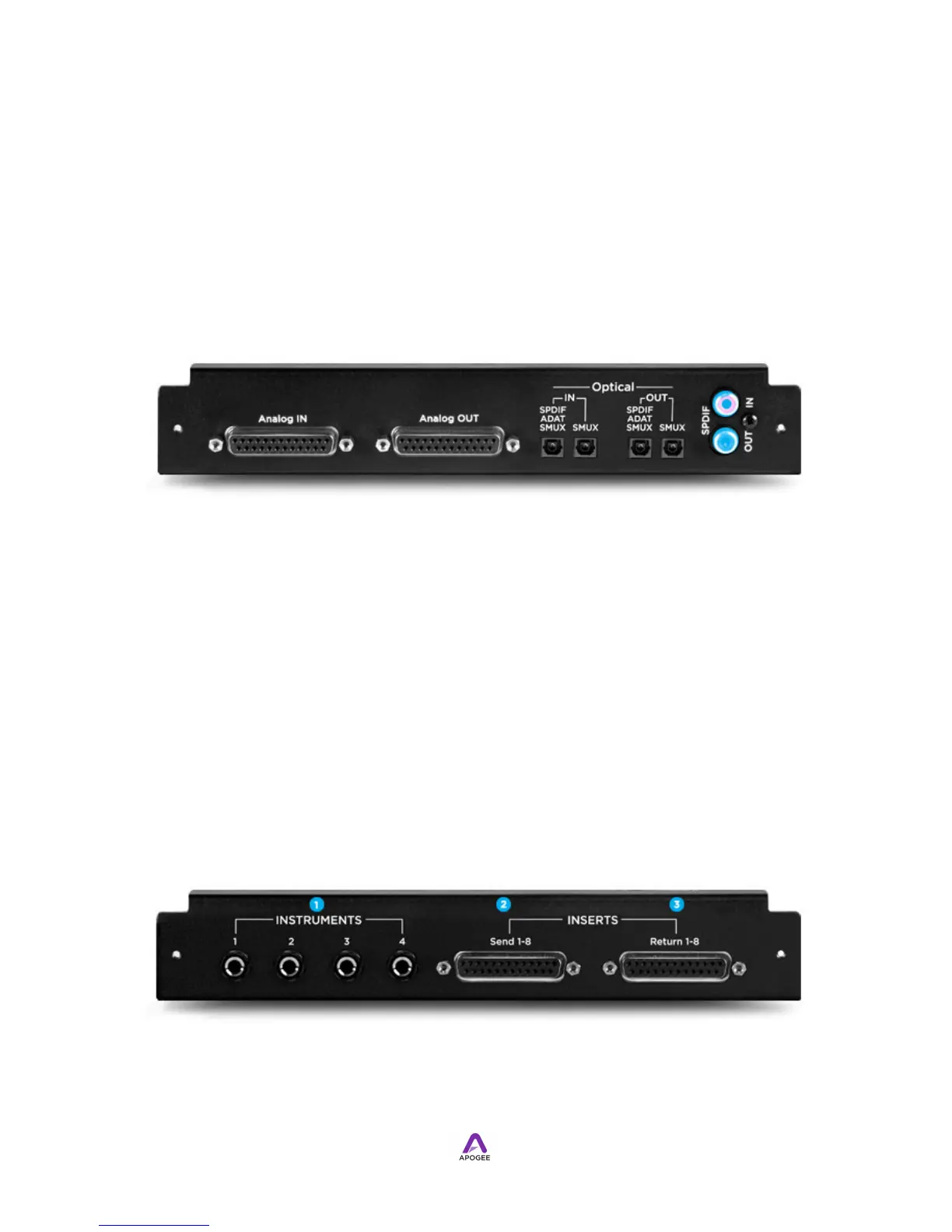

S/PDIF In/Out
The S/PDIF In/Out connectors are found on these IO Modules:
!
•
8 Analog I/O + 8 Optical I/O
•
8 Analog I/O + 8 AES I/O
•
16 Analog In + 16 Optical Out
•
16 Optical In + 16 Analog Out
!
• Connect S/PDIF coax inputs and outputs to the S/PDIF RCA connectors. Set S/PDIF
Replaces and S/PDIF Mirrors (in Maestro’s Input and Output tab windows).
Mic Pre I/O Module
Mic Pre I/O Modules must be installed in the Card 2 (upper) slot in conjunction with one
of the following I/O Modules:
•
8 Analog I/O + 8 Optical I/O
•
8 Analog I/O + 8 AES I/O
•
16 Analog In + 16 Optical Out
Connect mics to the Analog IN connector of the lower I/O Module. When an input's
Analog Level is set to Mic (or Instrument) in Maestro, the signal is routed from the lower
