4.5.6. Alarms

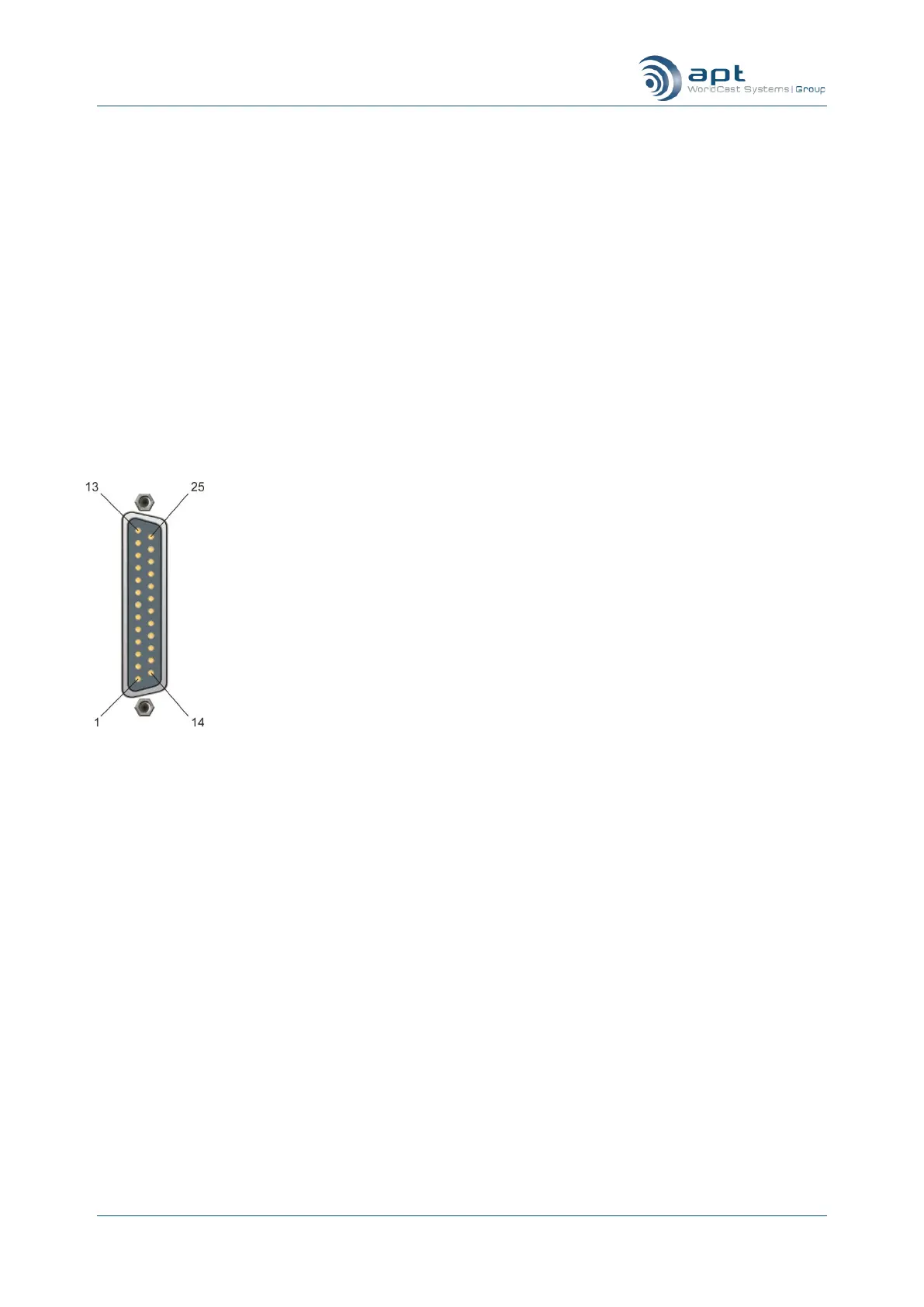

25 pin male connector
contact view
Selected by pins
Pin
Description
Function
Alarm Number
1
Loss of dig i/p com
Loss of dig input
Alarm 1
2
Loss of dig i/p n.c.
Loss of dig input
3
Loss of dig i/p n.o.
Loss of dig input
4
AutoSync com.
Autosync Alarm
Alarm 2
5
AutoSync n.c.
Autosync Alarm
6
AutoSync n.o.
Autosync Alarm
7
Connect com.
Connect Alarm
Alarm 3
8
Connect n.c.
Connect Alarm
9
Connect n.o.
Connect Alarm
10
Imux Unlock com.
Imux Unlock Alarm
Alarm 4
11
Imux Unlock n.c.
Imux Unlock Alarm
12
Imux Unlock n.o.
Imux Unlock Alarm
13
Silence Alarm (L) com.
Silence Alarm (L)
Alarm 5
14
Silence Alarm (L) n.c.
Silence Alarm (L)
15
Silence Alarm (L) n.o.
Silence Alarm (L)
16
Silence Alarm (R) com.
Silence Alarm (R)
Alarm 6
17
Silence Alarm (R) n.c.
Silence Alarm (R)
18
Silence Alarm (R) n.o.
Silence Alarm (R)
19
X21 Rate com.
X21 Rate Alarm
Alarm 7
20
X21 Rate n.c.
X21 Rate Alarm
21
X21 Rate n.o.
X21 Rate Alarm
22
Summary com.
(Power Fail)
Summary Alarm
(Power Fail)
Alarm 8
23
Summary n.o.
(Power Fail)
Summary Alarm
(Power Fail)
24
Summary n.c.
(Power Fail)
Summary Alarm
(Power Fail)
25
N.C.
Alarm Port
*) n.c. = normally closed
*) n.o. = normally open
*) N.C. = Not Connected
This alarm port supplied on a 25 pin D-type connector provides six relay contact clo-
sures to indicate the status of the alarms. Each relay provides three contacts where the
“com” pin is the switch toggling between normally open (n.o.) and normally closed (n.c.).
The summary alarm is indicated by an LED on the front panel – this also acts as a pow-
er fail alarm with contacts 22 and 24 being open whenever power is removed from the
unit.
