4.5.10. Debug
The debug port will provide diagnostic information on the codec. You may be asked by APT Customer
Support to provide a capture from the debug port if you are experiencing problems.
Pin
Signal
Description
1
N/C
No Connection
2
Rx
Receive
3
Tx
Transmit
4
DTR
Data Terminal Ready
5
GND
Ground
6
N/C
No Connection
7
N/C
No Connection
8
N/C
No Connection
9
N/C
No Connection

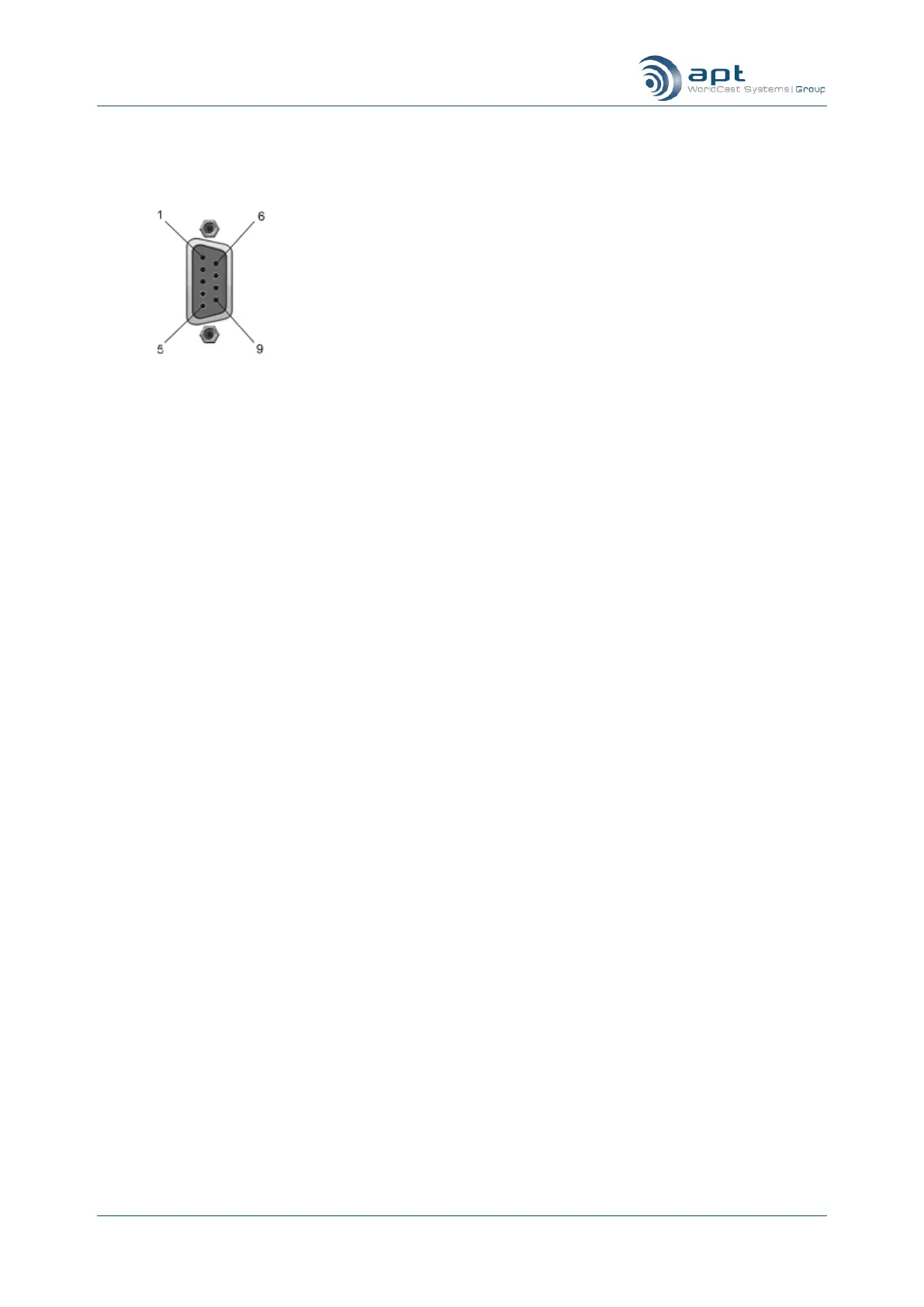

9 pin female connector
contact view
This is a SELV connection and
must only be connected to other
SELV ports
A cross over cable is required to con-
nect from this debug port to a PC. It is
the same connection type that is used
for the auxiliary data port.
