- 24 -
Engine of the Computer

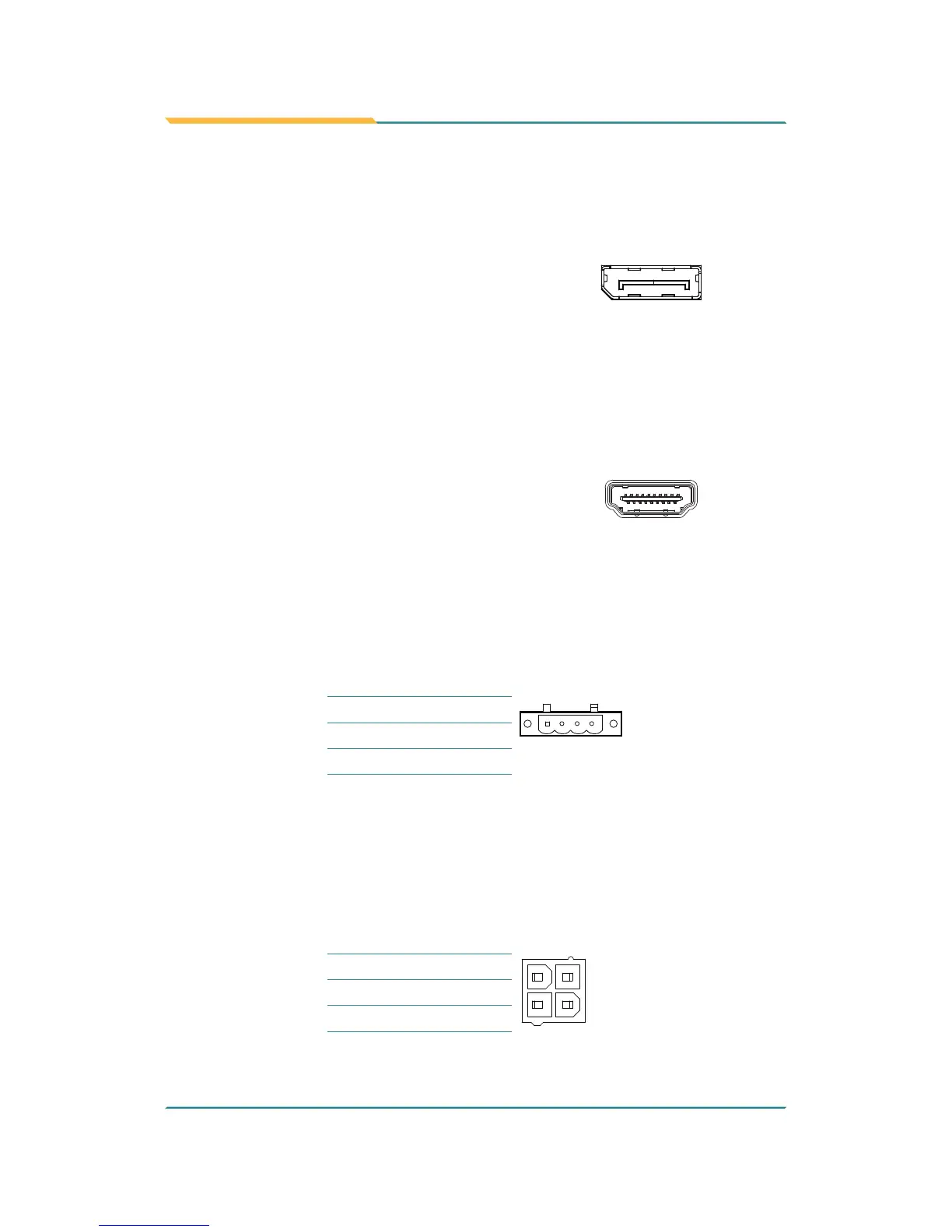

⑭ HDMI1_DP1
Function:
HDMI/DP combo connector
Connector Type:
19-pin HDMI / DisplayPort connector
Pin Assignment:
The pin assignments conform to the
industry standard.
⑮ HDMI1
Function:
HDMI connector
Connector Type:
19-pin HDMI connector
Pin Assignment:
The pin assignments conform to the
industry standard.
18
1
2
19
⑯ PWRIN1
Function: DC Adapter Power Input
Connector Type:
4-pin Terminal block
Pin Assignment:
Pin Desc.
1 2 3 4
1
VIN+
2
VIN-
3
Switch -
4
Switch +
⑰ POEOUT1
Function: PoE Power Connector
Connector Type:
2.54mm-pitch 4-pin header
Pin Assignment:
Pin Desc.
1
2
3
4
1
GND
2
GND
3
DCIN
4
DCIN
