Arbor Technology FPC-7900 - Page 37

- 25 -
Engine of the Computer

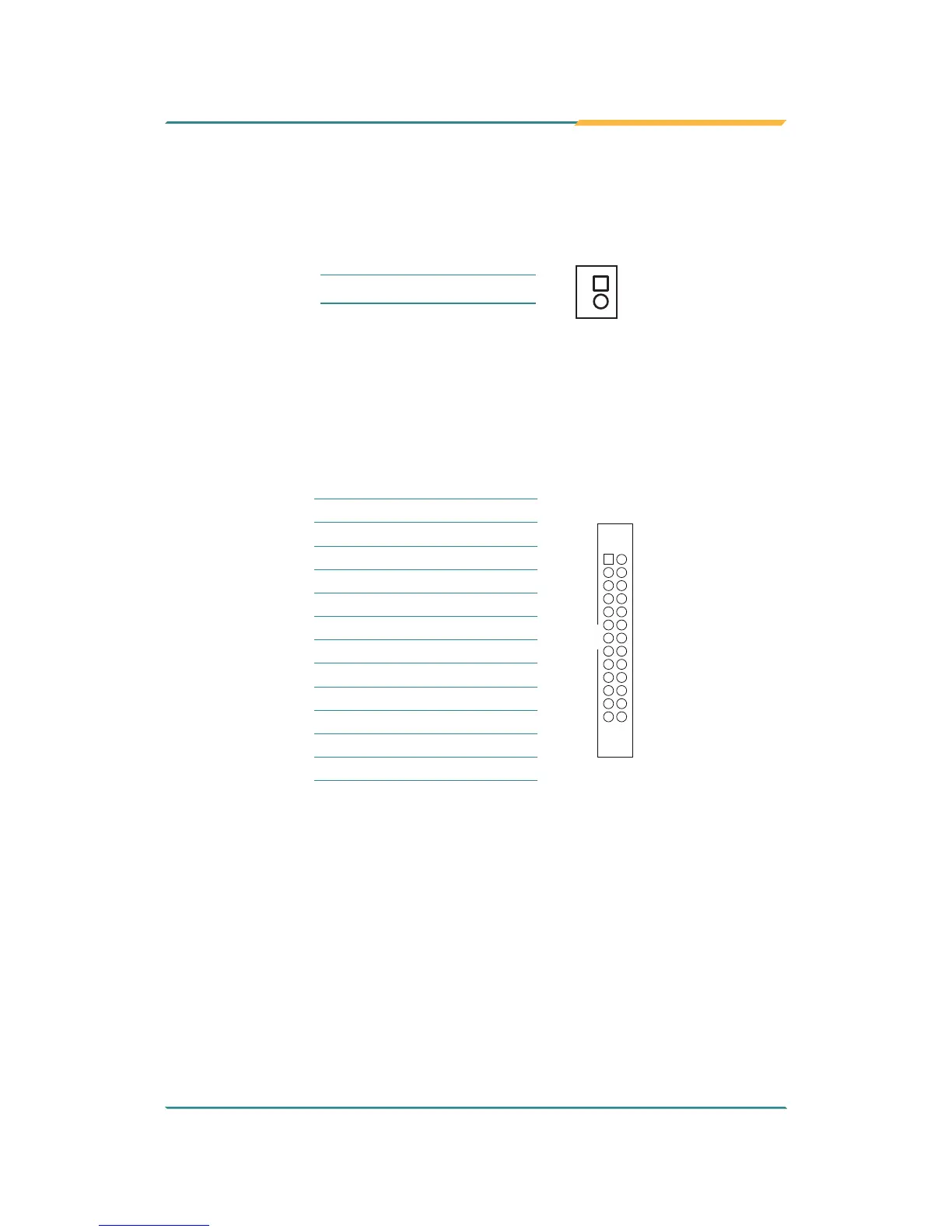

⑱ JACCON1
Function:
Ignition Power Connector
Connector Type:
Onboard 2x1-pin box connector
Pin Assignment:
Pin Desc.
1
1 Acc_ON
2 GND
⑲ DIO1
Function:
Digital IO Connector
Connector Type:
2.0mm pitch 2x13 pin box header
Pin Assignment:
Pin Desc. Pin Desc.
141
2613
1 DIO0 14 DIO8
2 DIO1 15 DIO9
3 DIO2 16 DIO10
4 DIO3 17 DIO11
5 DIO4 18 DIO12
6 DIO5 19 DIO13
7 DIO6 20 DIO14
8 DIO7 21 DIO15
9 +5V 22 GND
10 +5V 23 GND
11 N.C 24 N.C
12 N.C 25 N.C
13 N.C 26 N.C
