Engine of the Computer

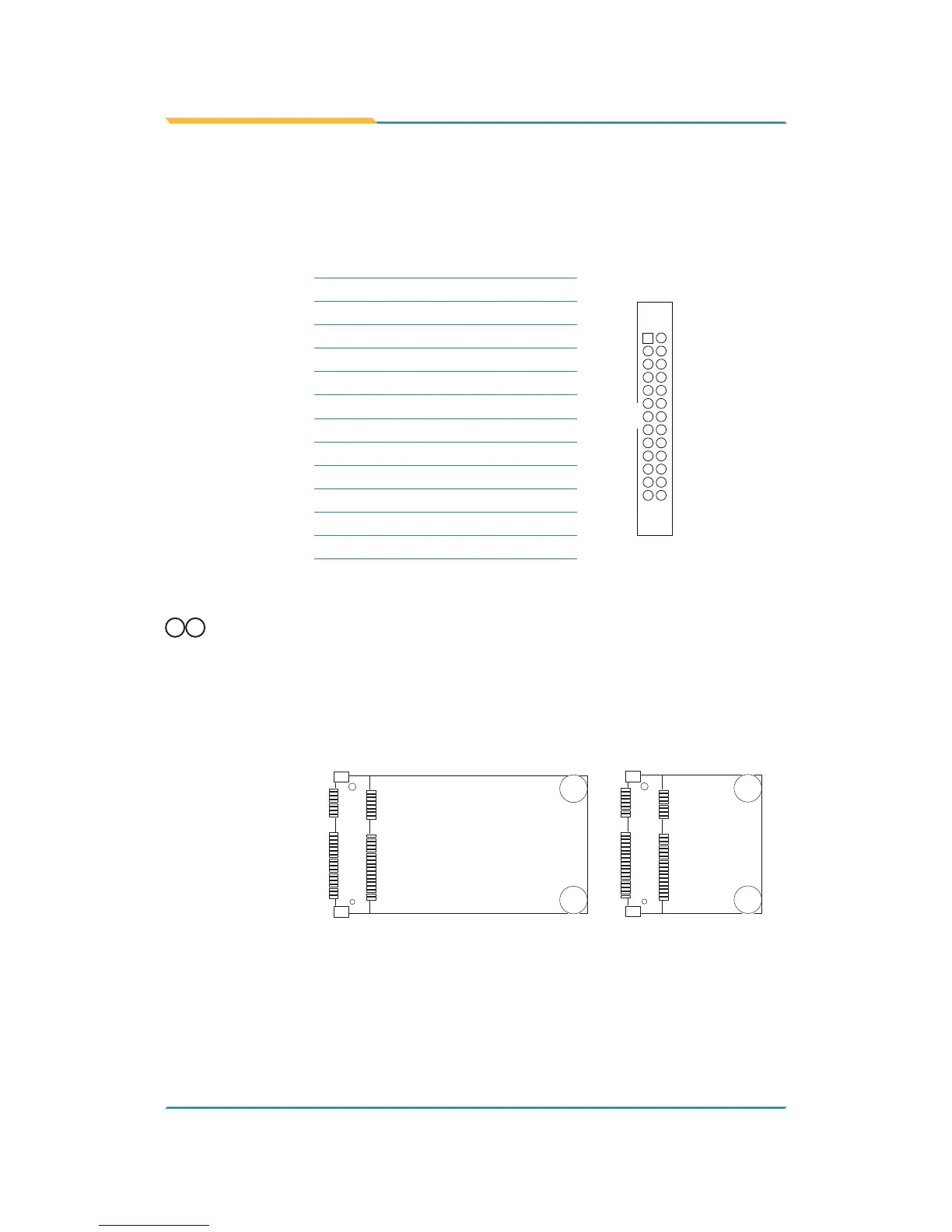

⑳ LPT1
Function:
On-board Parallel Port Connector
Connector Type:
2.00mm pitch 2 x13-pin box header
Pin Assignment:
Pin Desc. Pin Desc.
141
2613
1 STB# 14 AFD#
2 PD0 15 ERR#
3 PD1 16 INIT#
4 PD2 17 SLIN#
5 PD3 18 GND
6 PD4 19 GND
7 PD5 20 GND
8 PD6 21 GND
9 PD7 22 GND
10 ACK# 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SLCT 26 N.C
21
22
MC1, 2
Function:
MC1: PCI Express Mini-card Full Size socket
MC2: PCI Express Mini-card Half Size socket
Connector Type:
Onboard 0.8mm pitch 52-pin edge card connector
Pin Assignment:
The pin assignments conform to the industry standard.
52
51
16 18
15
17
2
1
52
51
16 18
15
17
2
1
MC1 MC2
