- 27 -
Engine of the Computer

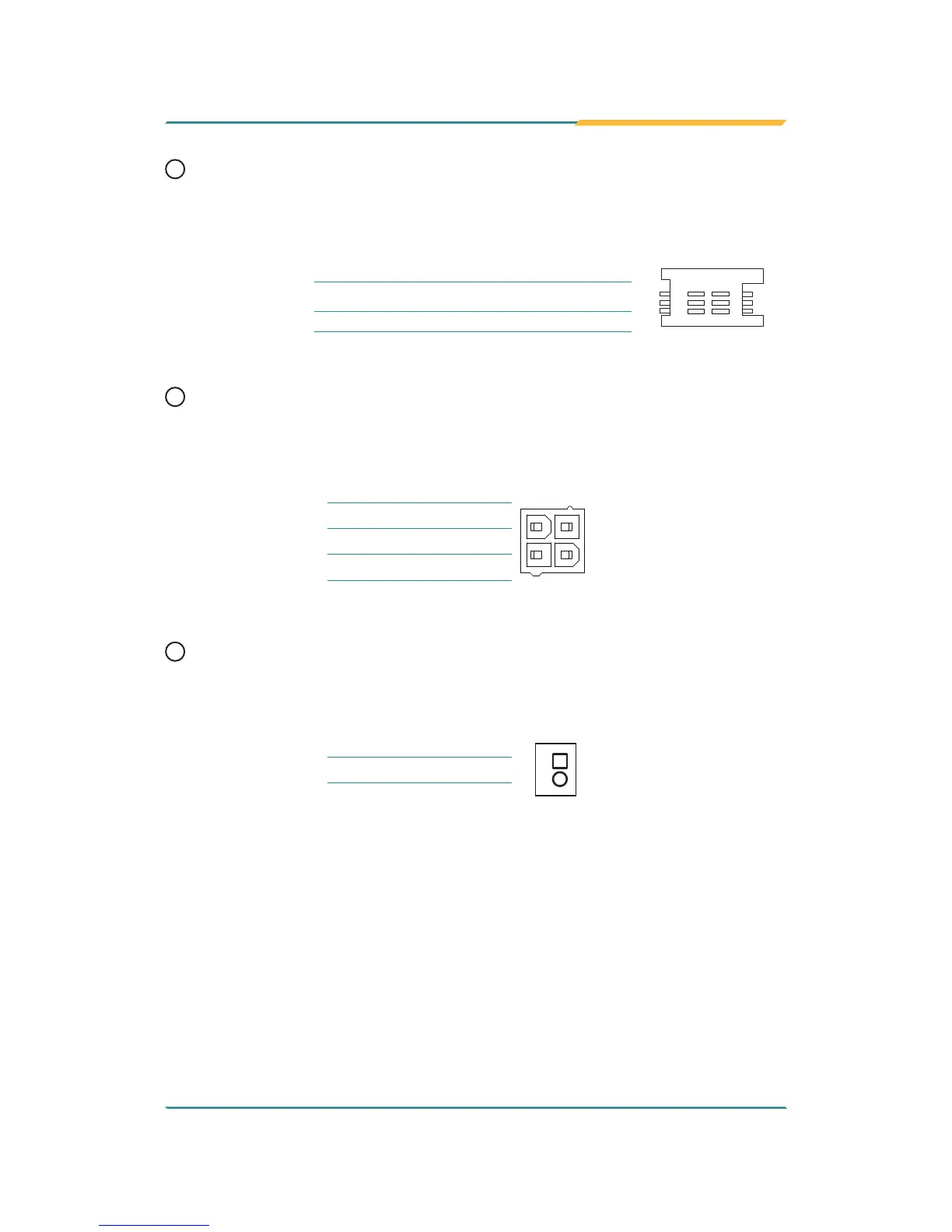

24
SIM1
Function:
SIM Card Socket
Connector Type:
6-pin SIM card socket
Pin Assignment:
Pin Desc. Pin Desc
C1
C2
C3
C5
C6
C7
C5 GND C1 POWER VOLTAGE
C6 NC C2 RESET SIGNAL
C7 I/O C3 CLOCK SIGNAL
25
SCPIN1
Function: Supercapacitor power in
Connector Type:
2.54mm-pitch 4-pin header
Pin Assignment:
Pin Desc.
1
2
3
4
1
GND
2
GND
3
+12V
4
+12V
26
SCPIN2
Function: Supercapacitor power out
Connector Type:
2.00mm-pitch 2-pin header
Pin Assignment:
Pin Desc.
1
1
+12V
2
GND
