- 28 -

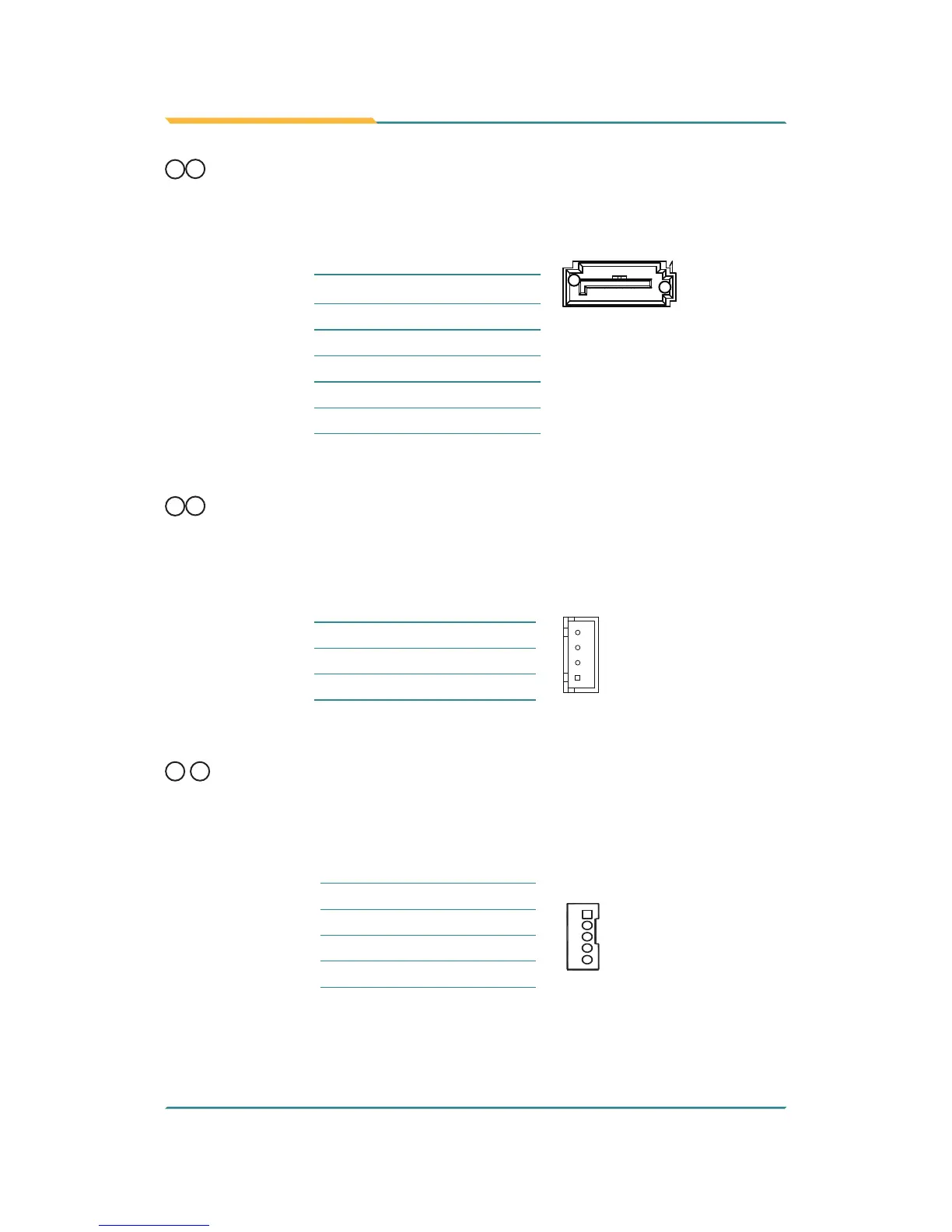

Engine of the Computer
27
28
SATA1~2
Function:
Serial ATA Connector
Connector Type:
On-board Serial ATA Connector
Pin Assignment:
Pin Description
1 7
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
29
30
PWROUT1, 2
Function:
SATA HDD Power Connector
Connector Type:
2.54mm pitch 1x4-pin one-wall connector
Pin Assignment:
Pin Desc.
1
4
1 +5V
2 GND
3 GND
4 +12V
31 32
USB2, 1
Function:
USB 3.0/2.0 Connectors
Connector Type:
On-board 1.25mm pitch 1x5 pin wafer connector
Pin Assignment:
Pin Description.
1
1
+5V
2
D-
3
D+
4
GND
5
GND
