- 37 -
Installation & Maintenance

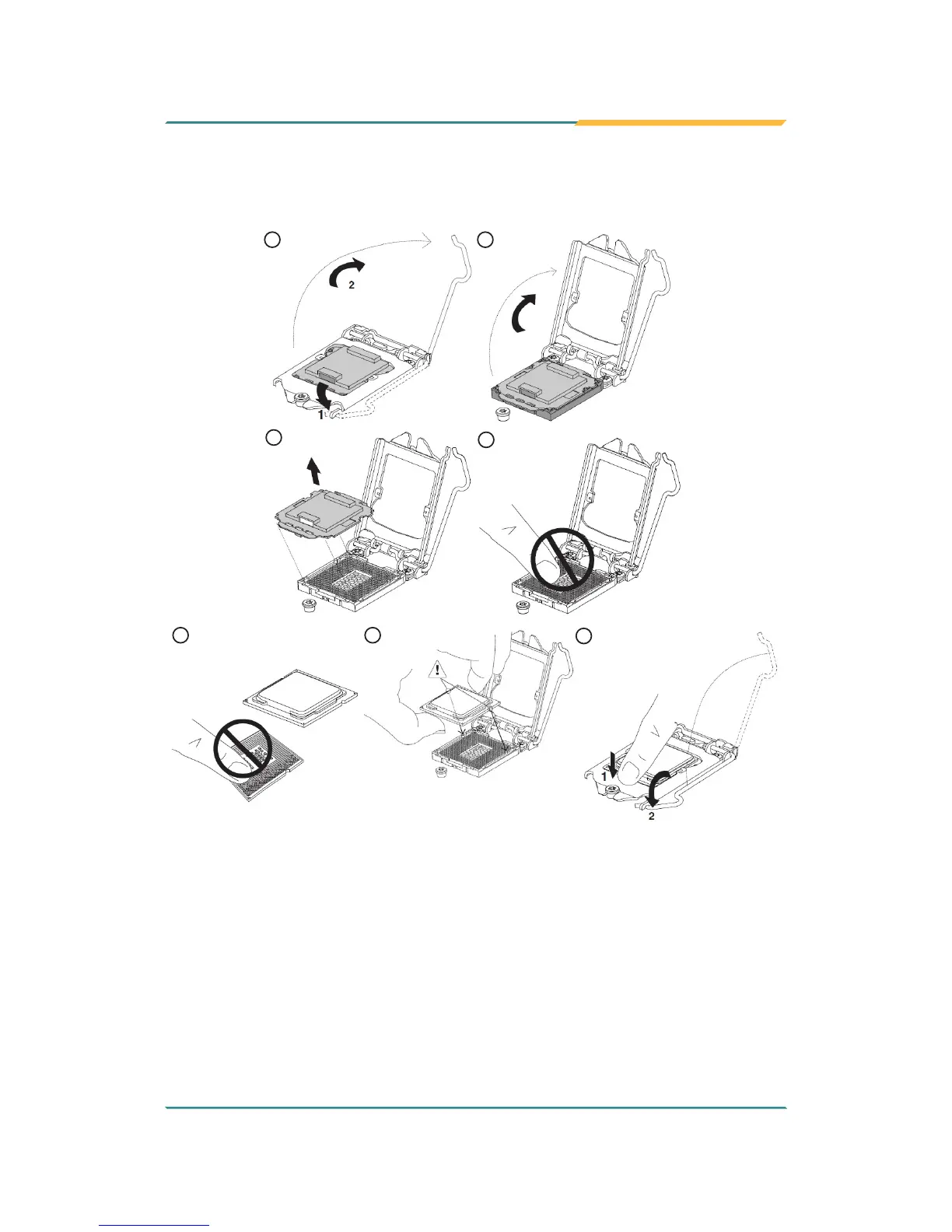

The processor socket comes with a lever to secure the processor. Please refer
to the pictures step by step as below and note that the cover of the socket must
always be installed during transportation to avoid damage to the socket.
1
3
2
4
5 6
7
