FUV Owner's Guide - 70

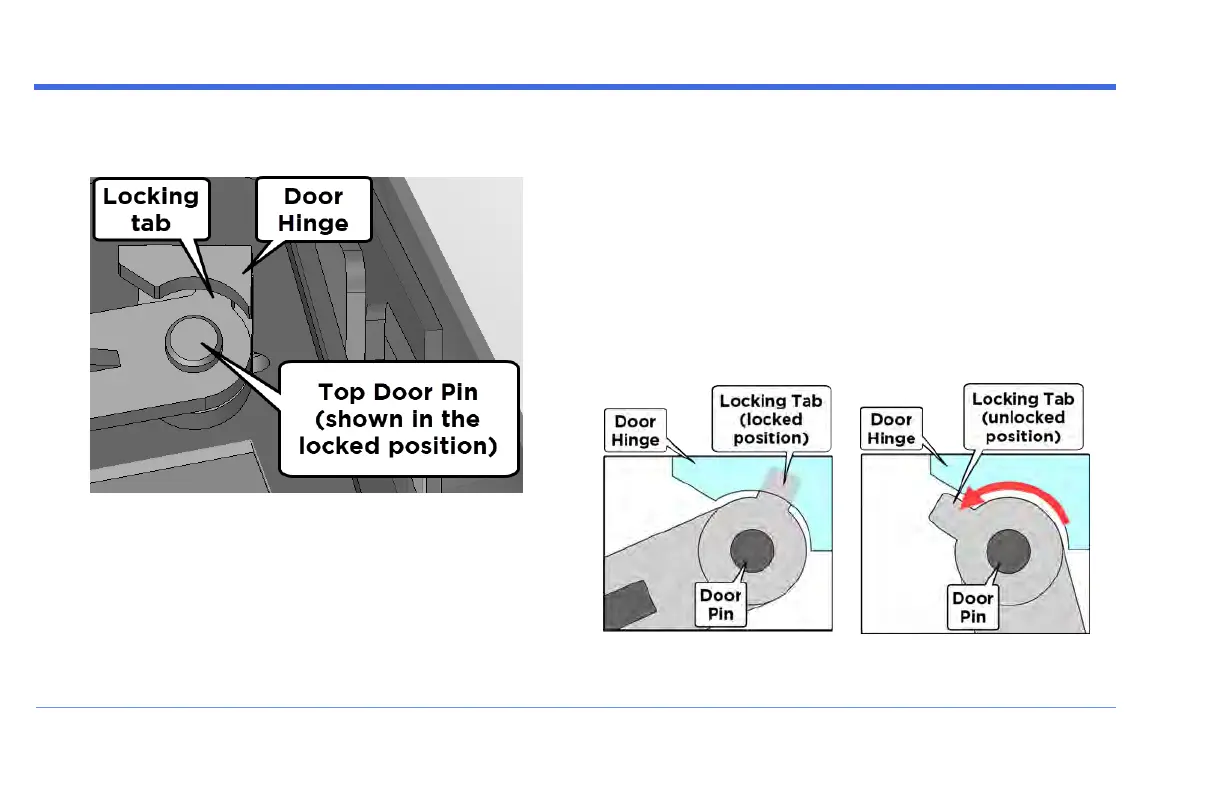

The top pin on each door has a locking tab that prevents
the doors from being removed during normal use:
The process of removing the detachable doors is the
same for all four doors: open the door wide enough to
unlock the top door pin, and lift the door up and off of the
hinge, as described below:
1. Unlatch the door and open it as far as possible - the
Door Strap prevents the door from opening too far.
2. Unhook the door strap from the strap hook on the
inside of the door: pull it up and off.
When the door strap is unhooked, the door is free to
open much further.
3. Open the door further, and observe the top door
pin. The Locking Tab needs to be rotated out of the
Door Hinge to unlock the door for removal:
EXTERIOR COMPONENTS
