EXTERIOR COMPONENTS
When the door is opened wide enough, the door
can be lifted up and out of the hinge.

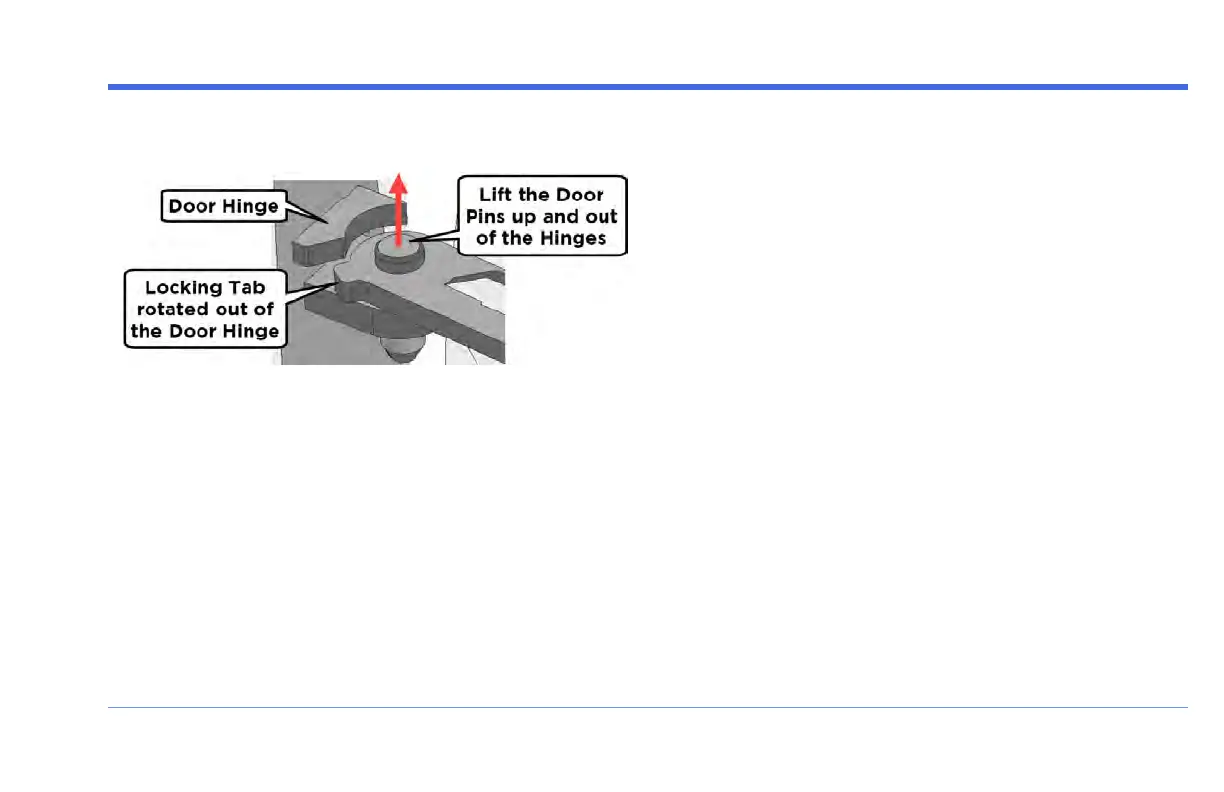

4. Grasp the inside of the door and lift straight upward
to slide the Pins on the door up and out of the Door
Hinges.
Installing the Doors
1. Position the door so that both pins on the door are
aligned with the hinges on the frame.
2. Open the door and observe the top door pin. The
Locking Tab needs to be rotated out of the Door
Hinge to allow the Door Pin to slide into the Hinge.
3. Lower the door, making sure that each pin is
inserted into its respective hinge. It may be
necessary to push downward slightly to seat the
pins fully within the hinges.
4. Once the pins are fully seated in the hinges,. close
the door to latch it shut.
5. Replace the door strap.
FUV Owner's Guide - 71
