5.5. Overview Arkel ArLine-S-INT
6. Installation
6.1. Installation of Arkel ArLine-M
Arkel ArLine-M main unit:
• If the machine room is available, it must be installed in a suitable place within the machine room (Preferably within the
lift control panel or near the panel).
• In hydraulic lifts, it should preferably be installed at the top of the lift shaft (Since the GSM signal level may not be
sufficient in the machine room).
• In the operations without machine room, (Preferably in the lift control panel or near the lift panel), it must be installed
at the top of the shaft.
• Do not install on the car.
The main unit must be installed in an easily accessible place when needed. The button on the unit must be easily accessible and
the LEDs should be visible. Appropriate space should be left for the intervention in the SIM card, antenna and all connectors.
The main unit and the antenna must be installed in the place with the best possible reception. The unit and the antenna can be
placed in a temporary location until the first operation stage. Once the necessary connections and settings have been made and
the GSM communication of the alarm system has been activated, the best location for the antenna can be selected using the GSM
light on the main unit. Whenever you change the position of the antenna, wait for 10 seconds for the GSM signal level to be
detected again. The fact that the GSM light is on means that the alarm system receives enough reception to operate.
A standard mobile phone can also help with the determination of the installation place. For this purpose, the operator of the
mobile phone and the SIM card to be used on the Arkel ArLine-M device must be identical. Place the mobile phone in the area
where you intend to install the product. Make a call and speak. If there is a distortion or interruption in the conversation, select
another location and repeat the same steps.
The following points should be taken into consideration when selecting the installation place:
• The cable length of the antenna is limited to 3m.
• The antenna must be fixed in an upright position on a metal plate that is in horizontal position.
• The antenna must be placed at least 1 meter away from electronic devices to prevent GSM interference.
• Metal cabinets/doors/covers weaken the GSM signal. The antenna must not be placed in a closed metal cabinet.
• For the antenna, parts/walls of the building close to the outside should be preferred.
• If the position of the antenna is changed, the GSM signal level must be checked again.
The location and dimensions of the mounting holes of this unit are shown in the “Dimensions” section of this manual. Install the
unit on a stable surface using suitable screws.
6.2. Installation of Arkel ArLine-S-COP
The Arkel ArLine-S-COP unit is designed to be installed at the rear side of the operating panel inside the car.
For the installation of the products, necessary assembly preparations must have been made in the operating panel.

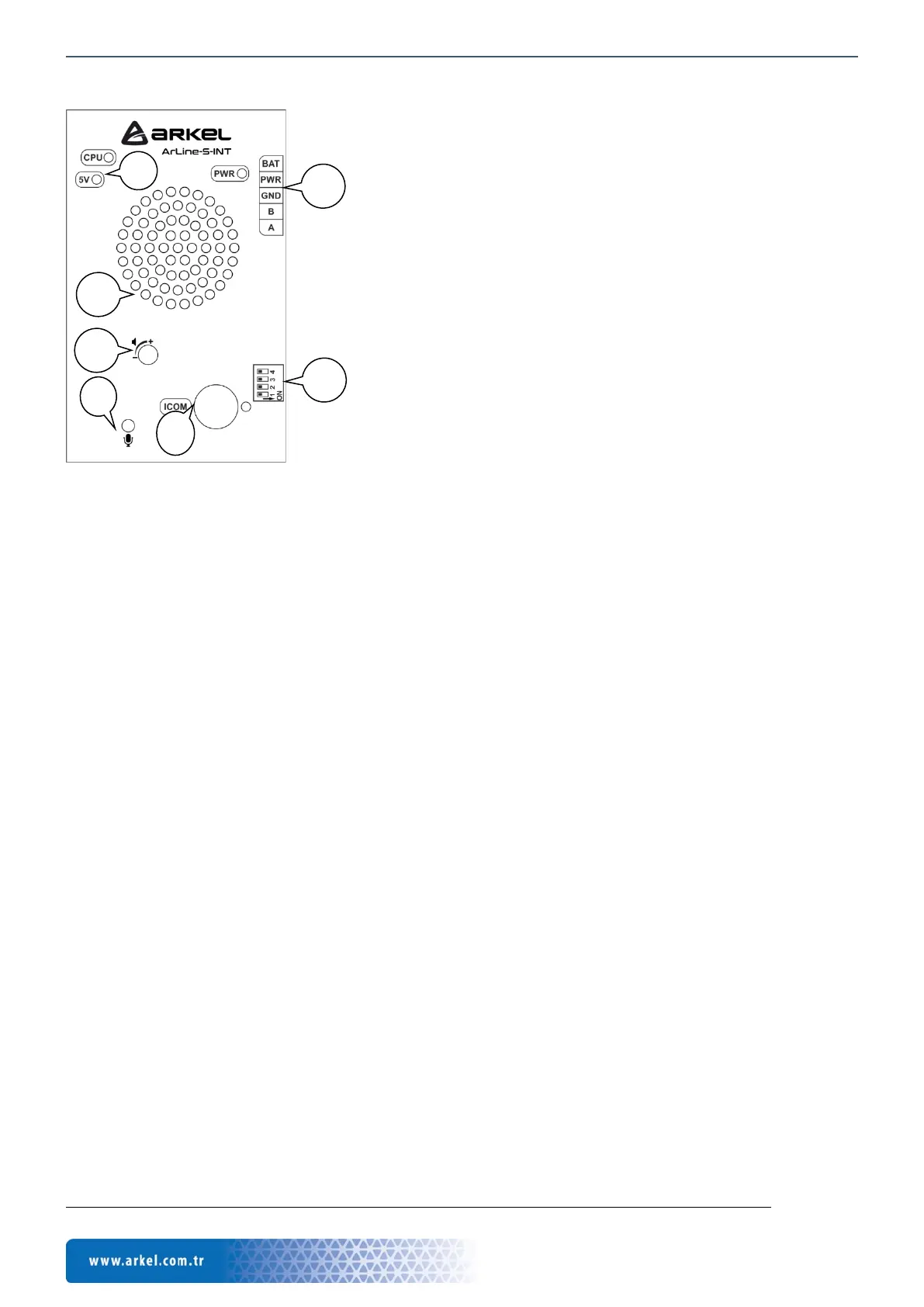

1. Arkel ArLine-M (Main unit) connection
2. Dip switch (Identification)
3. Intercom button
4. Volume adjustment trimpot
5. Microphone
6. Speaker
7. Information LEDs
Figure 5 Arkel ArLine-S-INT appearance
