5.2. Overview Arkel ArLine-M

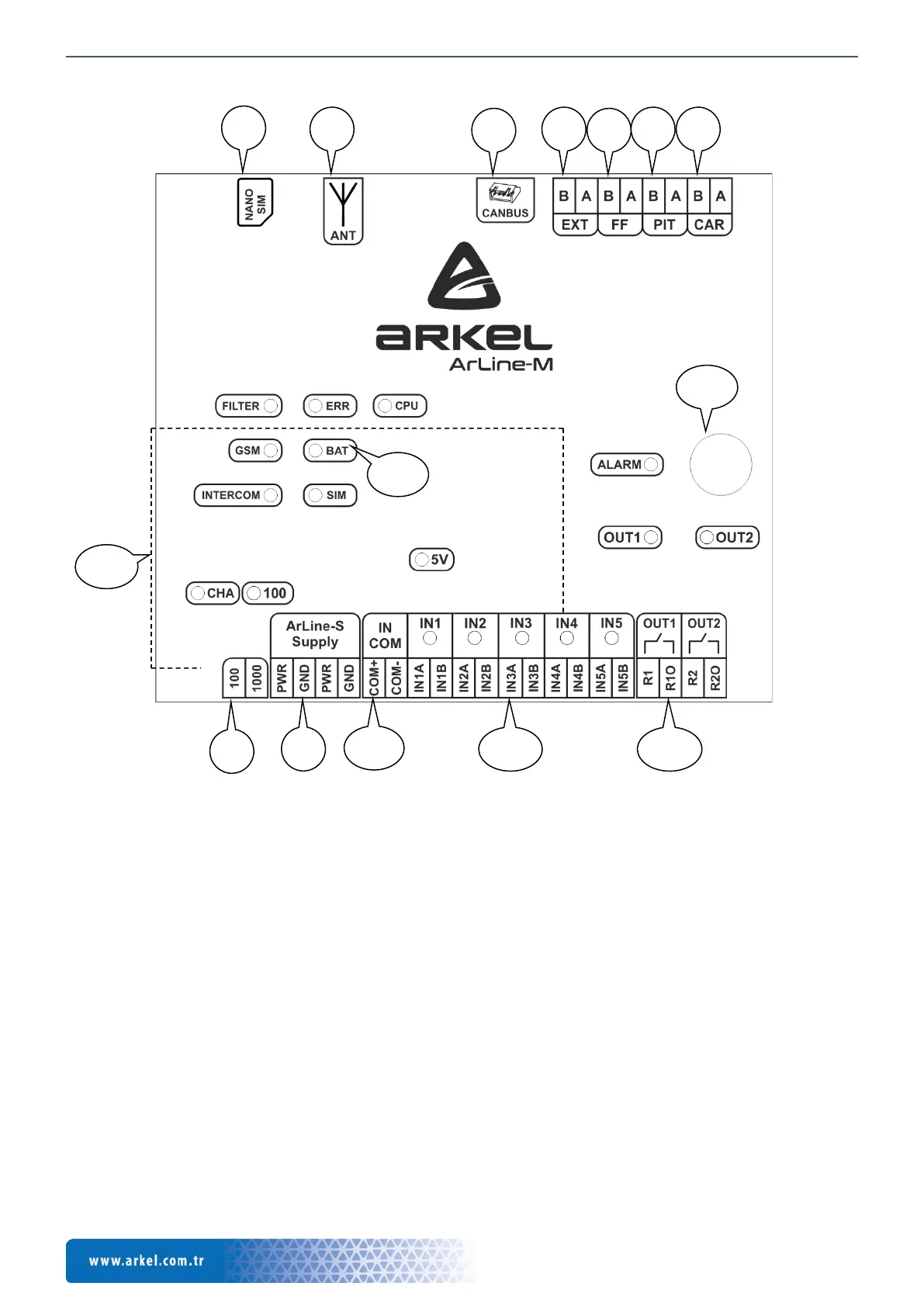

Figure 2 Arkel ArLine-M appearance
1. Nano SIM card slot
2. Antenna connection connector
3. CANbus connector (Only compatible with ARKEL products)
4. EXT: Group lift connection (Design phase)
5. FF: Machine room/control panel intercom unit connection
6. PIT: Pit alarm unit connection
7. CAR: Car alarm unit connection (Inside the car, top of car and under car)
8. 100, 1000: Supply inputs
9. Arkel ArLine-S Supply (PWR, GND): Supply outputs for Arkel ArLine-S units
10. INCOM (COM +, COM-): Supply outputs for programmable inputs
11. IN1-IN5: Programmable inputs
12. OUT1-OUT2: Programmable relay outputs
13. User button (Alarm termination/device shutdown)
14. Information LEDs
15. Battery (In box)
