Arkel ArLine User Manual V1.24

27. Dimensions

27.1. Arkel ArLine-M

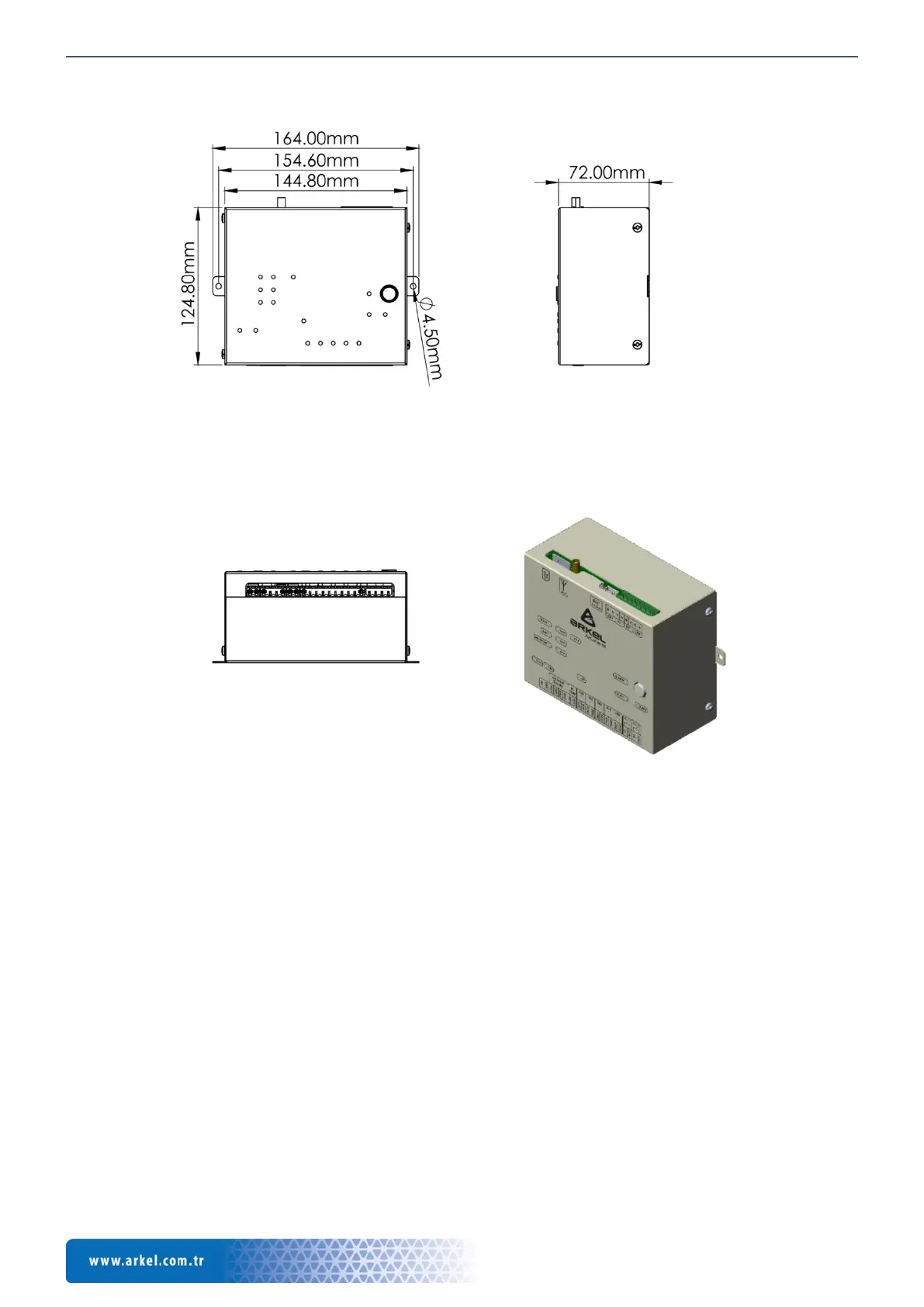

Figure 26 Arkel ArLine-M mechanical dimensions
