1080p24 Pass-Through
The Additional HDMI Settings menu screen is illustrated and defined below:

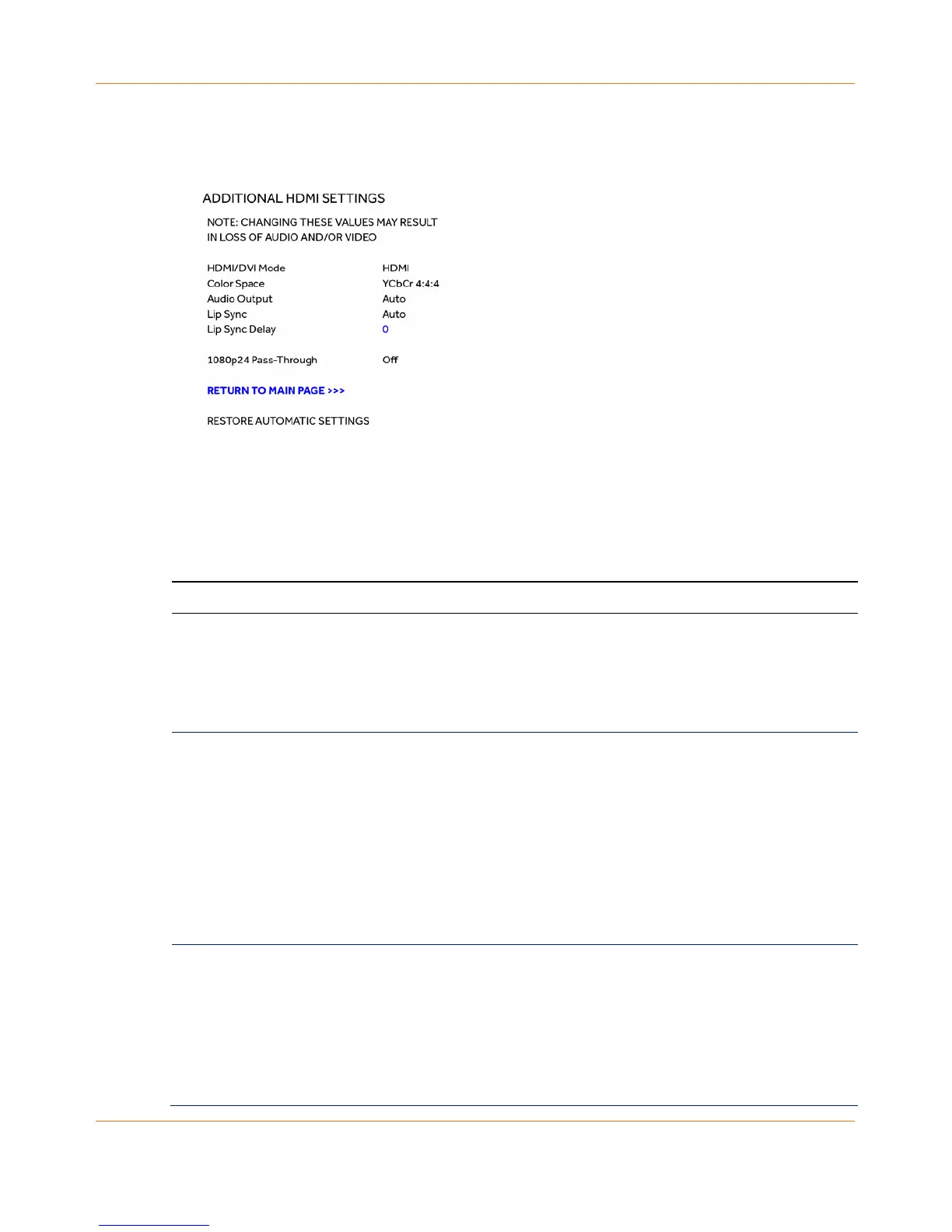

Figure 12: Additional HDMI Settings Screen
Table 12 – Additional HDMI Settings Fields
Field Description
Additional HDMI Settings The Additional HDMI Settings option is available whenever an HDMI
connection is in place.
Selecting this option will present a new menu screen with settings
specific to the HDMI connection, for example DVI/HDMI mode,
Color Space, Audio Output, and Lip Sync settings.
HDMI/DVI Mode The HDMI/DVI Mode setting allows you to optimize the HDMI
output to work with both DVI-equipped televisions and
HDMI-equipped televisions.
By default, this option is set to HDMI. The options are used as
follows:
HDMI — The IPC4100 is optimized to work with an HDMI television
or home theater receiver.
DVI — The IPC4100 is optimized to work with a DVI television or
display device (connected via an HDMI-to-DVI adapter).
Color Space The Color Space setting allows you to adjust the color space used by
the IPC4100 to generate the video signals on the HDMI output. By
default, this option is set to YCC 4:4:4. The options are used as
follows:
YCC 4:4:4 — The IPC4100 will generate video signals within the YCC
color space.
RGB — The IPC4100 will generate video signals within the RGB color
