Field Description
Number of Bytes
Downloaded
Indicator of the download progress provides the current value of the
number of bytes received
Download Start Time Date and time (local time) when the object download started.
Download Complete
Time
Date and time (local time) when the object download completed
CDL % Complete Indicator of download progress provides the current percent
complete of the object download.
Multicast IP The Multicast address required for the object download. Meaningful,
only if the object is downloaded via IP multicast.
Multicast Destination
Port
Multicast Destination port for the object download. Meaningful, only
if the object is downloaded via IP multicast
Object PID PID for the object in the DSMCC carousel;
Note: The number of objects will increase the number of pages
displayed, as necessary.
d04 Channel and Session Menu
This diagnostic displays current channels and services entering the home, including screens
for Current Channel Status. Six screens will display for the six IB tuners and a seventh screen
will display for the IP stream.

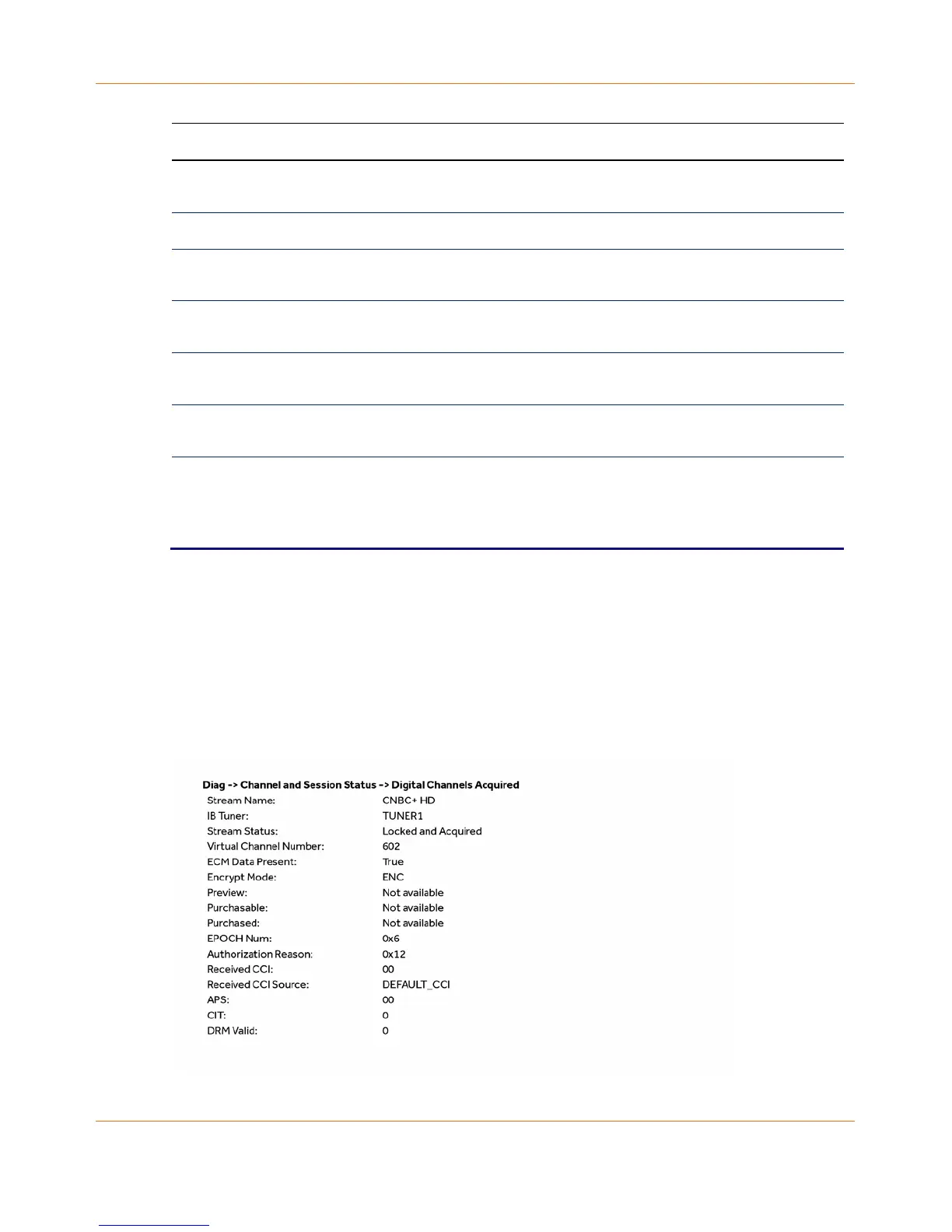

The following screens illustrate information for IB tuner 1, IB Tuner 2, and IP Stream:
