Chapter 10:
STANDARD 365-095-33577 Revision x.1 IPC4100 Release 1.0 Installation and Operation Guide
76

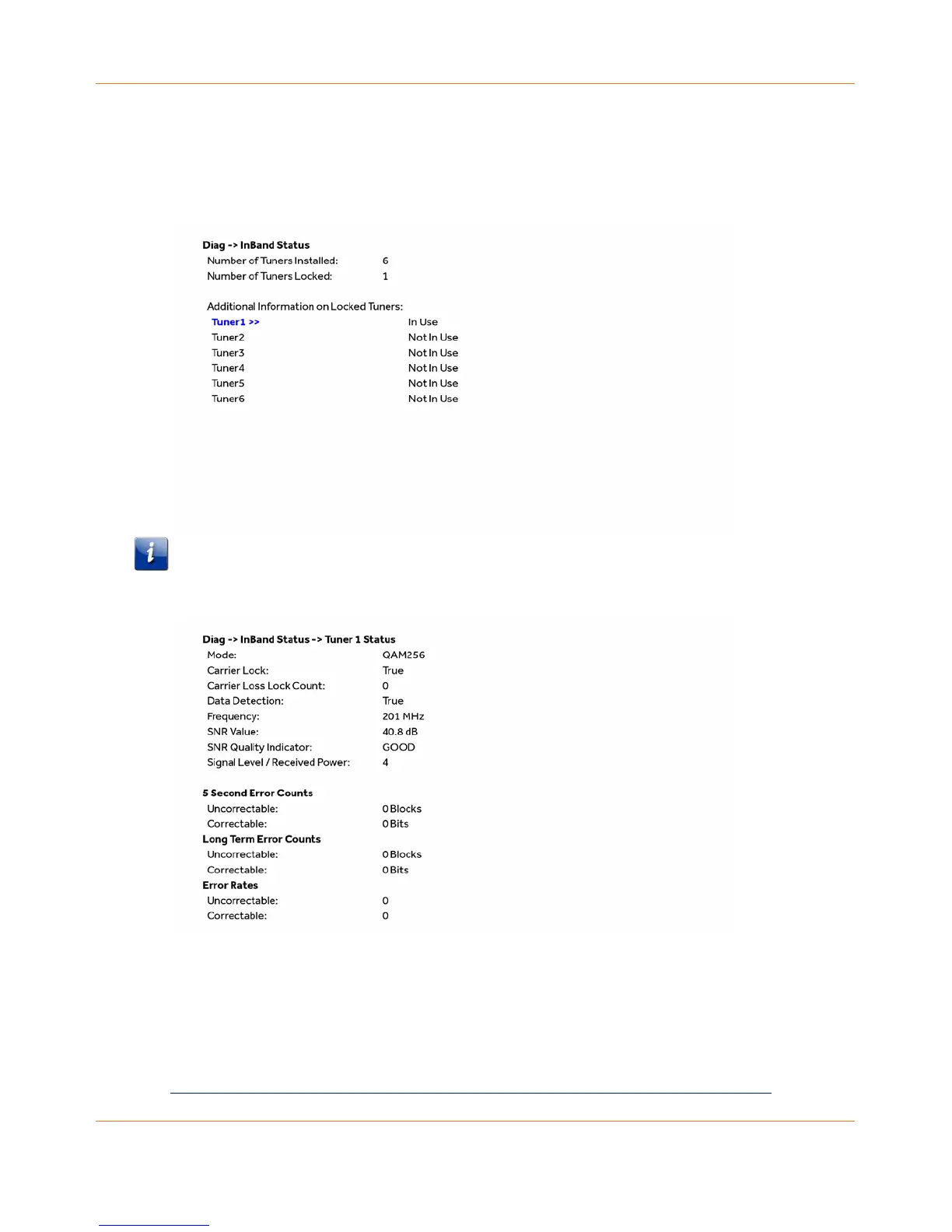

d10 IN BAND Status
This diagnostic displays the in-band status for the last attempted tuned channel. The
information is updated every five seconds.
Note: Additional information is available for the remaining five tuners on pages 3 thru 12.
Scroll down to display for each additional tuner.
Table 25. In Band Status Fields (Page 1)
Field Description
Mode The values displayed are:
64 QAM — 64 QAM digital channel
256 QAM — 256 QAM digital channel
