d11 Out-of-Band (OOB) Status

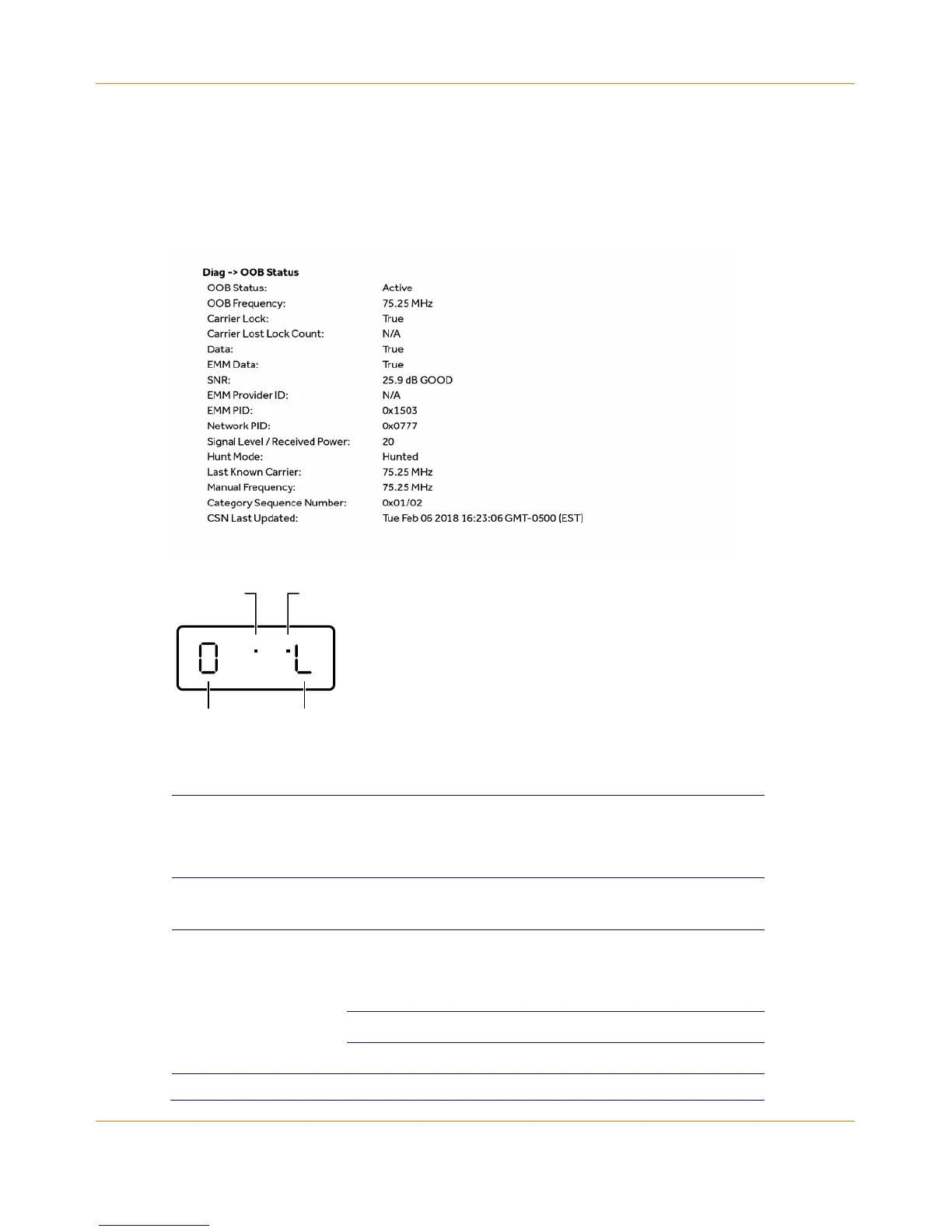

This diagnostic indicates the out-of-band control channel status. The information is updated
every five seconds.
OOB
diagnostic
indicator
Carrier lock indicator
(L=locked, U=unlocked)
Data activity
indicator
EMM data activity
indicator
Table 27. Out-of-Band Status Fields
Field Description
OOB Status Indicates if the control channel is activated from both
head-end connect and ACS activation.
OOB Frequency Indicates the OOB tuner center frequency, from 70 to 130
MHz.
Carrier Lock Indicates whether the OOB receiver is locked to the
carrier:
Front Panel Description
L Carrier locked
U Carrier unlocked
Carrier Lock Loss
Indicates the cumulative number of times the OOB tuner
