Field Description
LKC will remain blank during hunting if a valid carrier has
not been found, and will be populated once a valid OOB is
found.
Man Freq Only displayed when IPC4100 series is not hunting and
the operator presses "menu" button. The operator can
then scroll up or down to one of the specific OOB
frequencies.

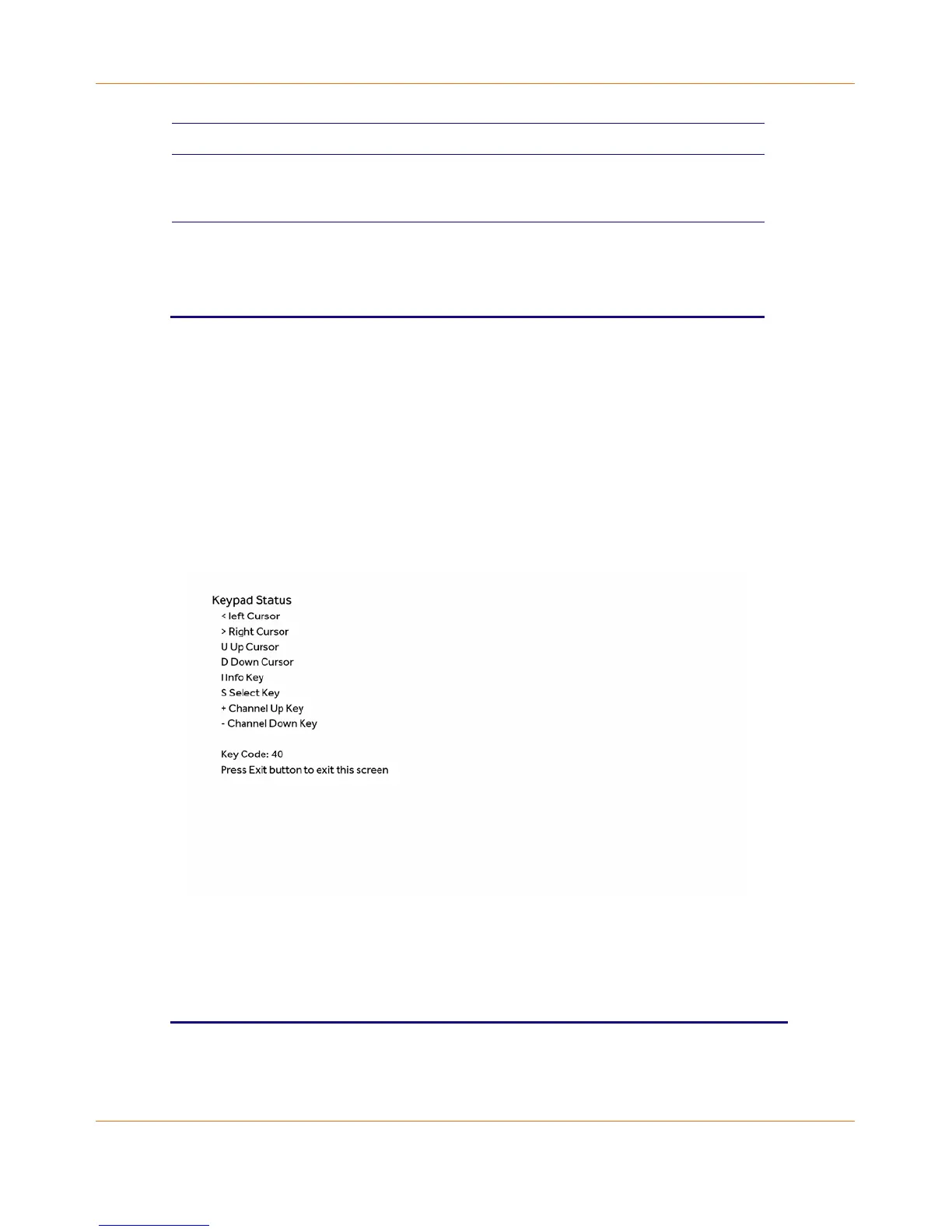

d12 Keypad Status
This diagnostic verifies the functionality of the front panel indicators and the front panel
keypad. Each highlighted character corresponds with a front panel key press.
The front panel key presses should also highlight the corresponding character and a front
panel indication. Also, a segment on the front panel 7-segment display should illuminate
with each press of a front panel key.
Table 28. Keypad Status Fields
Field Description
Key Code Indicates the key code of a front panel key or an IR Key to press.
