SAFETY
AU103170 H5B
14

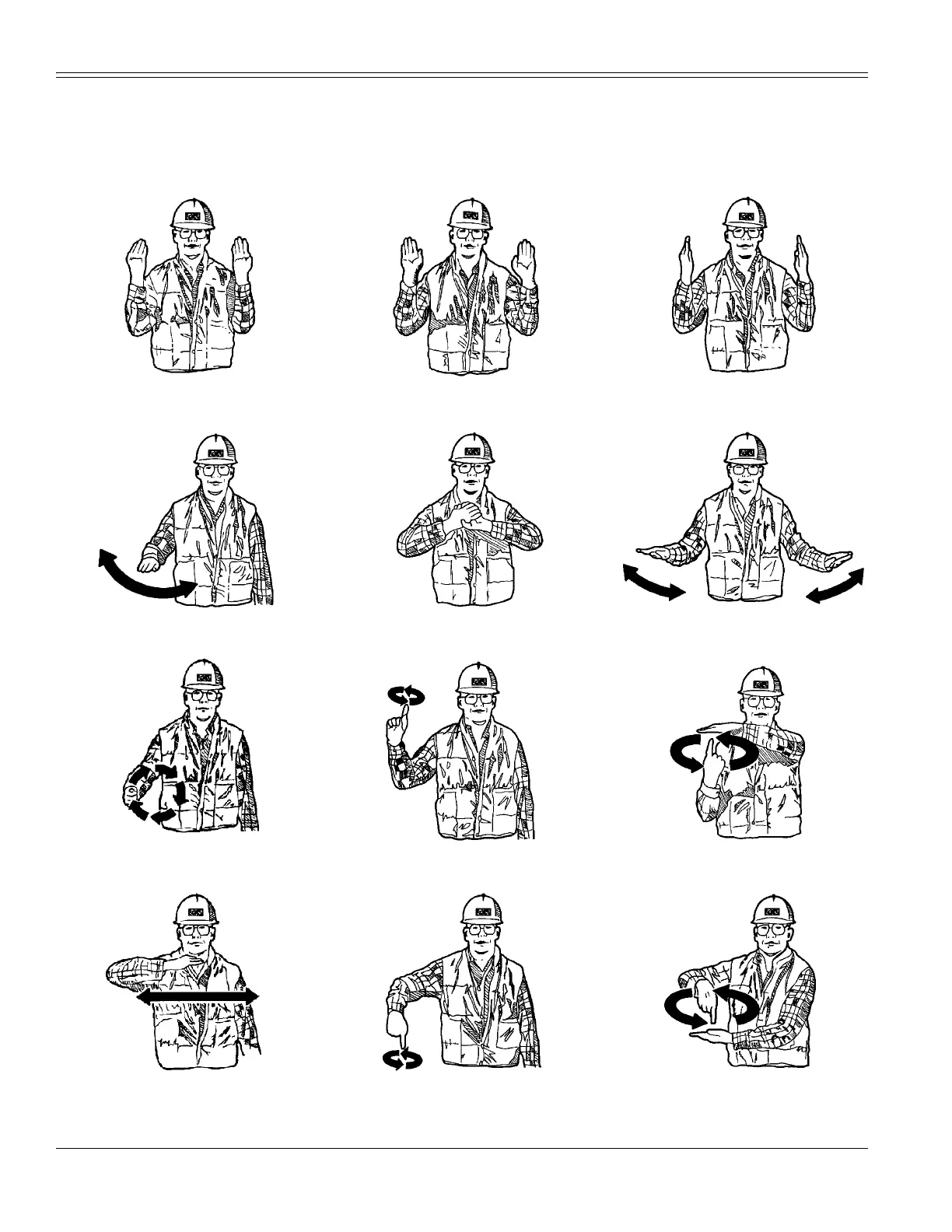

HAND SIGNALS
It is recommended t
hat you and
the flagman on the job us
e hand signals for communications. Before you start, make
sure that you both understand the signals that will be used.
PDE0003A
COME TO ME
PDE0005A
STOP
PDE0002A
START ENGINE
PDE0002
STOP ENGINE
PDE0003
MOVE AWAY FROM ME
PDE0004
ALL STOP AND HOLD
PDE0006A
RAISE LOAD OR BUCKET
PDE0006
LOWER LOAD OR BU
CKET
PDE0004A
GO THIS FAR
PDE0005
EMERGENCY STOP
PDE0007
RAISE LOAD OR BUCKET SLOWLY
PDE0007A
LOWER LOAD OR BUCKET SL
OWLY
17
19
Table of Contents
Default Chapter
3
Table of Contents
3
To the Owner
5
Trencher
5
After Delivery Check
6
Right, Left, Front and Rear of Machine
6
Identification Numbers
7
Safety/Decals/Hand Signals
9
Safety Message
9
Personal Safety
9
Utility Safety
9
Before Operation
10
Failure in Operation
11
Machine Operation
11
Parking the Machine
11
Cast Ductile Iron
11
Maintenance
12
Burn Prevention
12
Pressurized Hydraulic Fluid and Gases
12
Hazardous Chemicals
12
Fire and Explosion Prevention
13
Fire Extinguisher
13
Read Operators Manual
13
Safety Decals
14
Hand Signals
18
Instruments and Controls
21
Instrument Panel and Controls
21
Ground Drive Control Levers
23
Backfill Blade Controls
23
Plow Control and Lift Levers
23
Hydra-Borer Control Lever
24
Selector Valve Control Lever
24
Backhoe Control Levers
24
Backhoe Transport Links
25
Parking Brake
26
Operator's Seat
26
ETHER STARTING AID (if Equipped)
26
Seat Belt
26
Operating Instructions
29
Engine Operation
29
Run-In Maintenance Schedule
29
Operating in Hot Weather
29
Operating in Cold Weather
29
Starting the Engine
30
Engine Speed
31
Engine Starting Aids
31
Cold Weather Start
31
Booster Batter Connections
32
Parking and Stopping the Engine
33
Machine Operation
33
Trencher Operation
34
Trencher Boom Types
34
Trencher Chain and Teeth
34
Before You Operate
37
Cutting a Trench
37
Backhoe Operation
39
Cable Plow Operation
40
Hydra-Borer Operation
41
Dry Boring
43
Wet Boring
44
Transporting the Machine Ona Trailer
45
Moving a Disabled Machine
45
Wheels/Tires
47
Wheels and Tires
47
Lubrication
49
General Safety before You Service Machine
49
Plastic and Resin Parts
49
Environment
49
Engine Hourmeter
49
Capacities and Lubricants
50
Lubrication/Maintenance Chart
51
Lubrication Points - 10 Hours
53
Lubrication Points - 100 Hours
55
Engine Lubrication
56
Air Cleaner
58
Fuel System
60
Hydraulic Oil System
61
Transmission
64
Axles
64
Hydra-Borer
65
Maintenance/Adjustments
67
Engine Drive Belt
67
Pump Drive Belt
67
Jackshaft Drive Belts
68
Trencher Drive Chain
69
Digging Chain Tension
70
Parking Brake
71
Roll-Over Protective Structure
71
Clutch Adjustments
73
Fire Extinguisher
73
Electrical System
75
Batteries
75
Instrument Panel Fuse
76
Seat Interlock System
76
Storage
77
Storing the Machine
77
Removal from Storage
77
Specifications
79
Digging Chain
79
Chain Identification
79
Chain Component Identification
80
Engine Data
88
Travel Speeds
88
Electrical System
88
Tire Air Pressures
88
Backhoe Buckets
88
Weights
88
Basic Machine Dimensions
89
Hardware
93
Detail Index
103
After Delivery Check
103
