LUBRICATION
49 AU103170 H5B

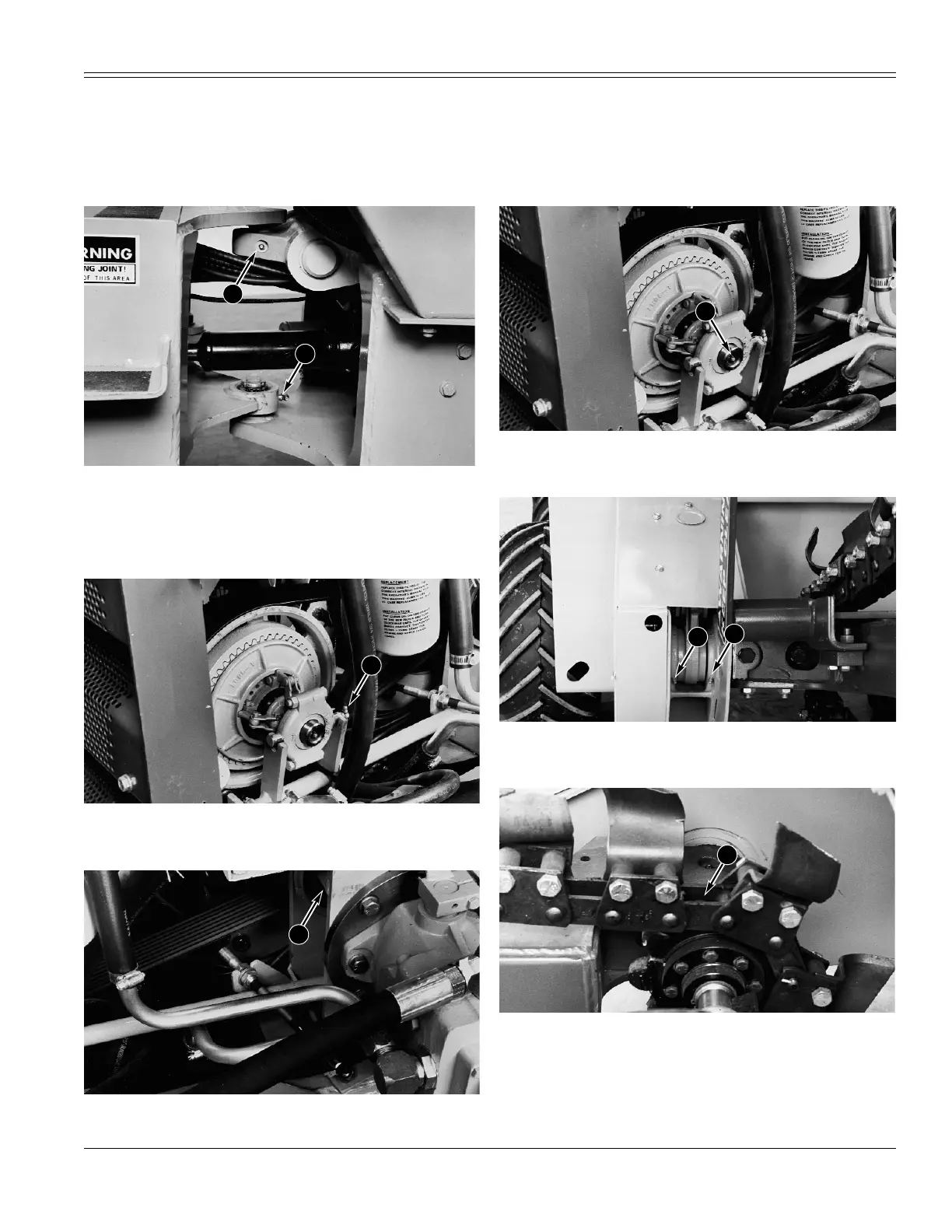

LUBRICATION POINTS - 10 HOURS
NOTE:
Use Astec Moly HT grease. Clean each grease fitting before and after you lubricate the pivot or bearing.
Chassis Pivots
866362
2 FITTINGS - TOP AND BOTTOM
NOTE:
Use a dry lubricant (graphite/silicon) on the upper
slide pin if slide begins to stick or make noise.
Clutch Throwout Bearing
A18919
1 FITTING
Sheave Coupling
A18927
2 FITTINGS - SHEAVE / SHAFT JOINT (NOT SHOWN)
Clutch Main Bearing
A18919
1 FITTING
Boom Pivot
866335
2 FITTINGS
Headshaft Bearing
866347
1 FITTING
2
1
1
1
1
2
1
1
