INSTRUMENTS/CONTROLS
AU103170 H5B 20

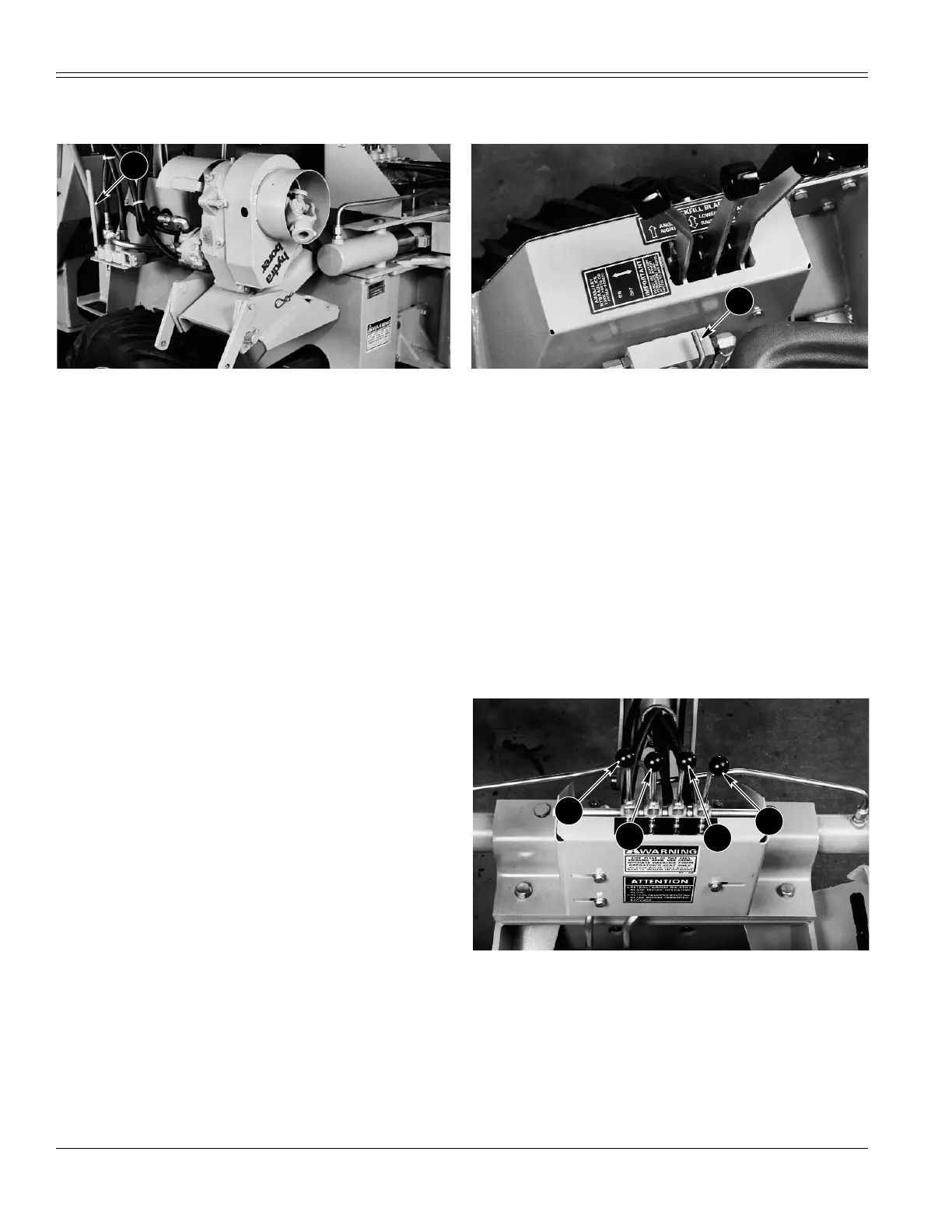

HYDRA-BORER CONTROL LEVER
966211
1. HYDRA-BORER CONTROL LEVER
1. HYDRA-BORER CONTROL LEVER
The Hydra-Borer control lever has three positions:
1. Boring Forward (at front of machine)
A. FORWARD: Push the lever toward the front of the
machine to rotate the shaft for the Hydra-Borer
clockwise.
B. NEUTRAL: Move the lever to this position to stop
the rotation of the shaft of the Hydra-Borer.
C. REVERSE: Pull the lever toward the rear of the
machine to rotate the shaft for the Hydra-Borer
counterclockwise.
2. Boring Backward (at rear of machine)
A. FORWARD: Push the lever toward the front of the
machine to rotate the shaft for the Hydra-Borer
counterclockwise.
B. NEUTRAL: Move the lever to this position to stop
the rotation of the shaft of the Hydra-Borer.
C. REVERSE: Pull the lever toward the rear of the
machine to rotate the shaft for the Hydra-Borer
clockwise.
SELECTOR VALVE CONTROL LEVER
866217
1. SELECTOR VALVE CONTROL LEVER
1. SELECTOR VALVE CONTROL LEVER
The Selector Valve Control Lever has two positions:
1. ON: Push the lever forward to the ON position for
Hydra-Borer (Side Ports) operation. When the Hydra-
Borer (Side Ports) is not in operation, this control
lever must be in the OFF position.
2. OFF: Pull the lever all the way to the rear (OFF) for
plow, backhoe, operation. This lever must be in this
position except during Hydra-Borer (Side Ports)
operation.
BACKHOE CONTROL LEVERS
Four Lever Controls
866214
1. BOOM CONTROL LEVER 3. CROWN (DIPPER) CONTROL LEVER
2. SWING CONTROL LEVER 4. BUCKET CONTROL LEVER
1. BOOM CONTROL LEVER
Push this lever to lower the boom. Pull this lever to lift
(raise) the boom.
2. SWING CONTROL LEVER
Push this lever to swing the boom to the right. Pull this
lever to swing the boom to the left.
1
1
3
1
4
2
