OPERATING INSTRUCTIONS
37 AU103170 H5B

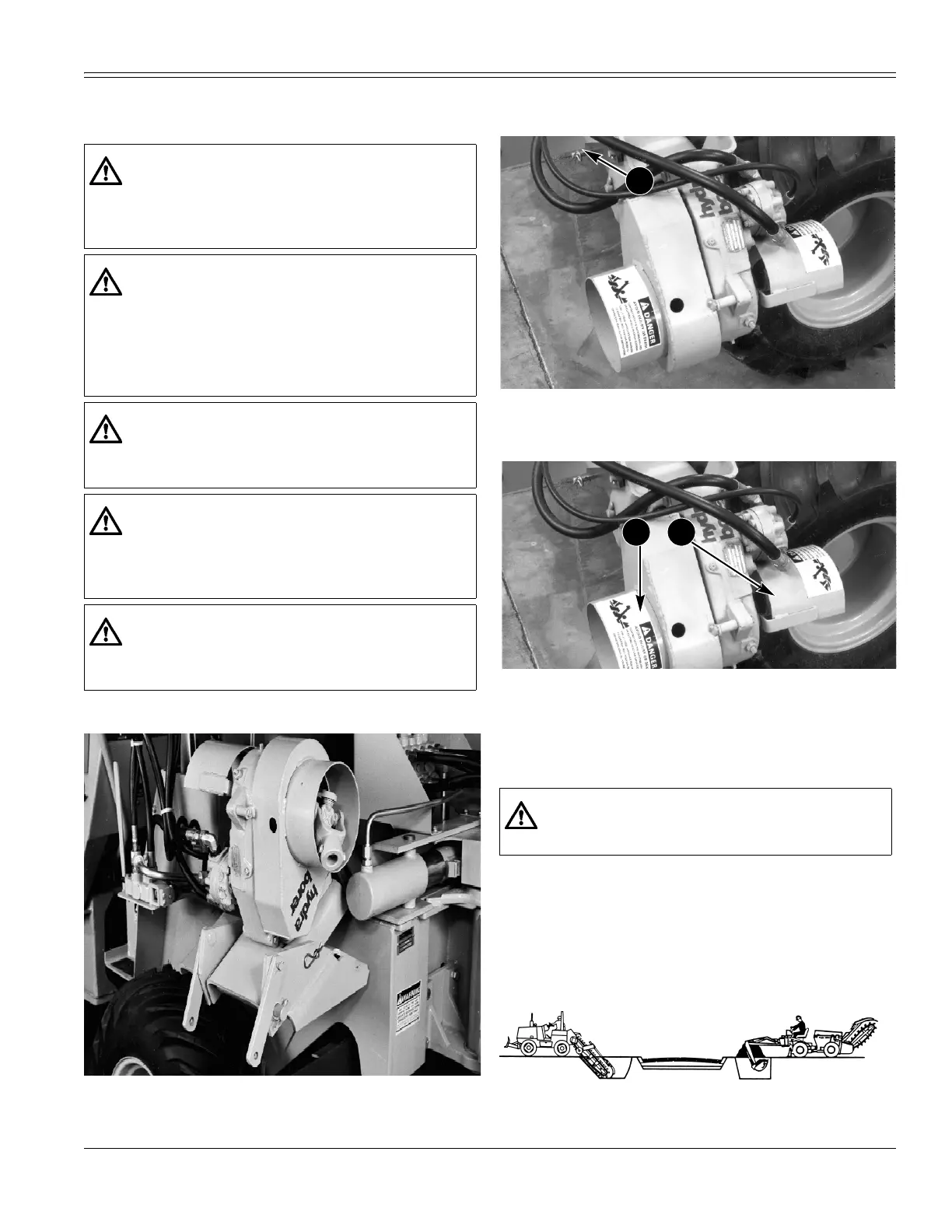

HYDRA-BORER OPERATION
Transport Position
866211
Operating Position
A19239A
1. MOUNTING PIN
Before You Operate
A19239A
1. ALWAYS KEEP GUARDS INSTALLED AS SHOWN
IMPORTANT:
Before beginning Hydra-Borer operations,
always check with appropriate local utility companies to
determine if any underground cables, wires, pipes, etc.
may be encountered during operations.
CM115
Operating
Before boring operations begin do the following:
1. Locate and dig a target hole. This hole should be
large enough for a man to work in, approximately
1.83 x 0.61 x 1.22 m (6 x 2 x 4 ft.).
B865081J
WARNING:
Do not hold or stand on the drill
stem during Hydra-Borer operation. Personal
injury or death can result. If the drill stem breaks
or needs adjustment, stop the machine and turn
off the engine.
WARNING:
Contact with the rotating parts of
the Hydra-Borer can cause severe personal
injury. During Hydra-Borer operations, keep all
persons out of the trench and the target hole. If
work must be done in the trench or the target
hole, always stop the Hydra-Borer and stop the
engine.
WARNING:
Rotating machine parts, stay clear,
keep shields installed to help protect from
clothing entanglement and injury. Wear close-
fitting clothing.
WARNING:
During Hydra-Borer operation,
keep all persons out of the trench and the target
hole. If work must be done in the trench or target
hole stop the Hydra-Borer and the machine
engine.
WARNING:
The rotating parts of the Hydra-
Borer can cause injury or death. Do not stand
closer than 1.5 m (5 feet) from the rotating parts
during machine operation.
WARNING:
Replace all covers or guards after
servicing or cleaning the machine. NEVER operate
the machine with covers or guards removed
1
11
STARTING HOLE
TARGET HOLE
