ASTEC RT360 User Manual

SPECIFICATIONS
85 AU103170 H5B

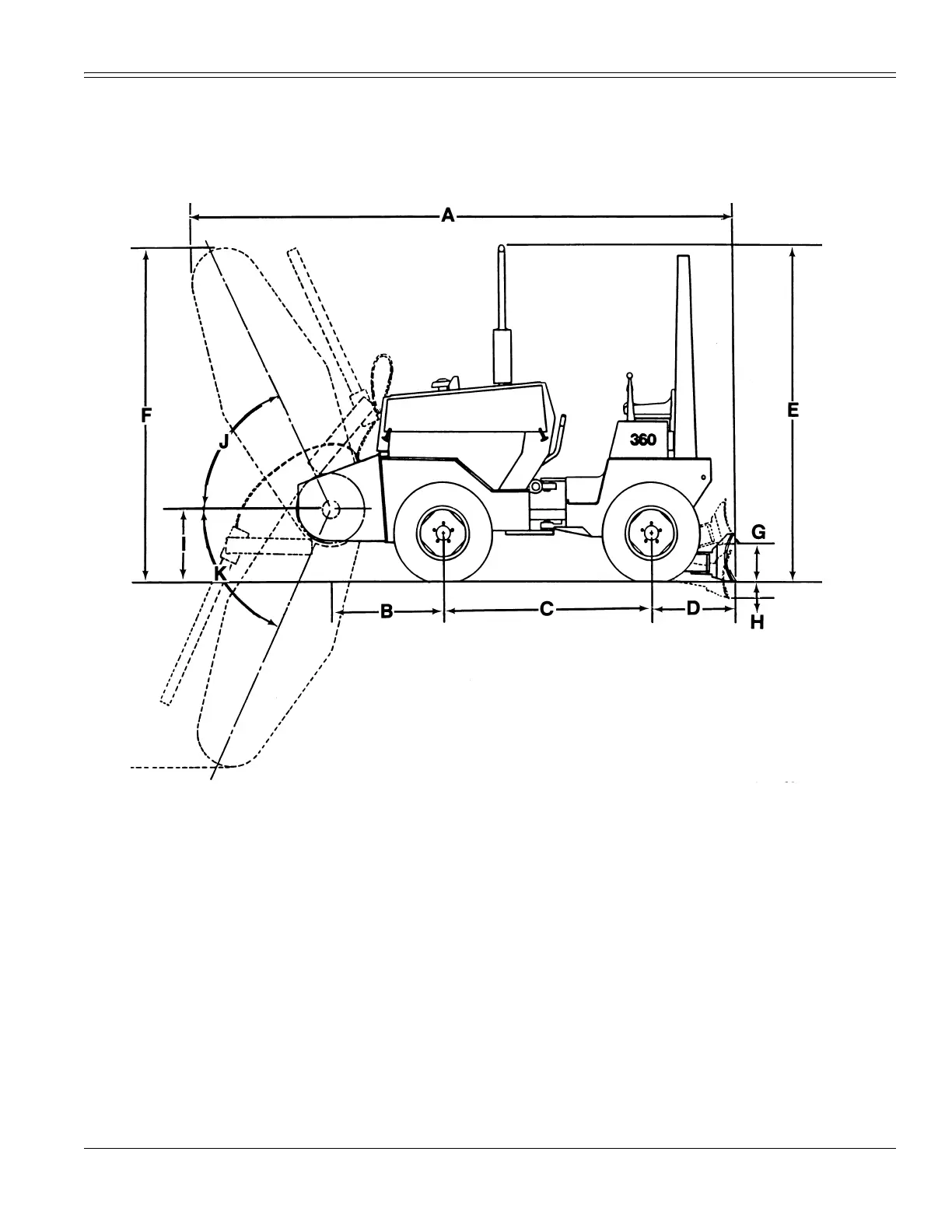

BASIC MACHINE DIMENSIONS
Trencher and Backfill Blade
861195
A. Length (Backfill Blade and 12.129 mm (48 Inch) Boom ...........................................................3625 mm (142.7 in)
B. Trencher Headshaft to Axle Centerline....................................................................................... 741 mm (29.2 in)
C. Wheel Base........................................................................................................................... 1400 mm (55.1 in)
D. Backfill Blade to Axle Centerline ............................................................................................... 570 mm (22.4 in)
E. Height to Top of Exhaust Pipe................................................................................................. 2200 mm (86.6 in)
F. Boom Transport Height (1219 mm (49 Inch) Boom) ................................................................. 2172 mm (85.5 in)
G. Backfill Blade Ground Clearance ............................................................................................... 254 mm (10.0 in)
H. Backfill Blade Depth Cut ............................................................................................................ 102 mm (4.0 in)
I. Headshaft Height ..................................................................................................................... 475 mm (18.7 in)
J. Boom Travel (Up).............................................................................................................................. 65 Degrees
K. Boom Travel (Down) ......................................................................................................................... 65 Degrees
