INSTRUMENTS/CONTROLS
21 AU103170 H5B
3. CROWN (DIPPER) CONTROL LEVER
Push this lever to move the dipper out. Pull this lever to
move the dipper in.
4. BUCKET CONTROL LEVER
Push this lever to dump the bucket. Pull this lever to curl
(load) the bucket.

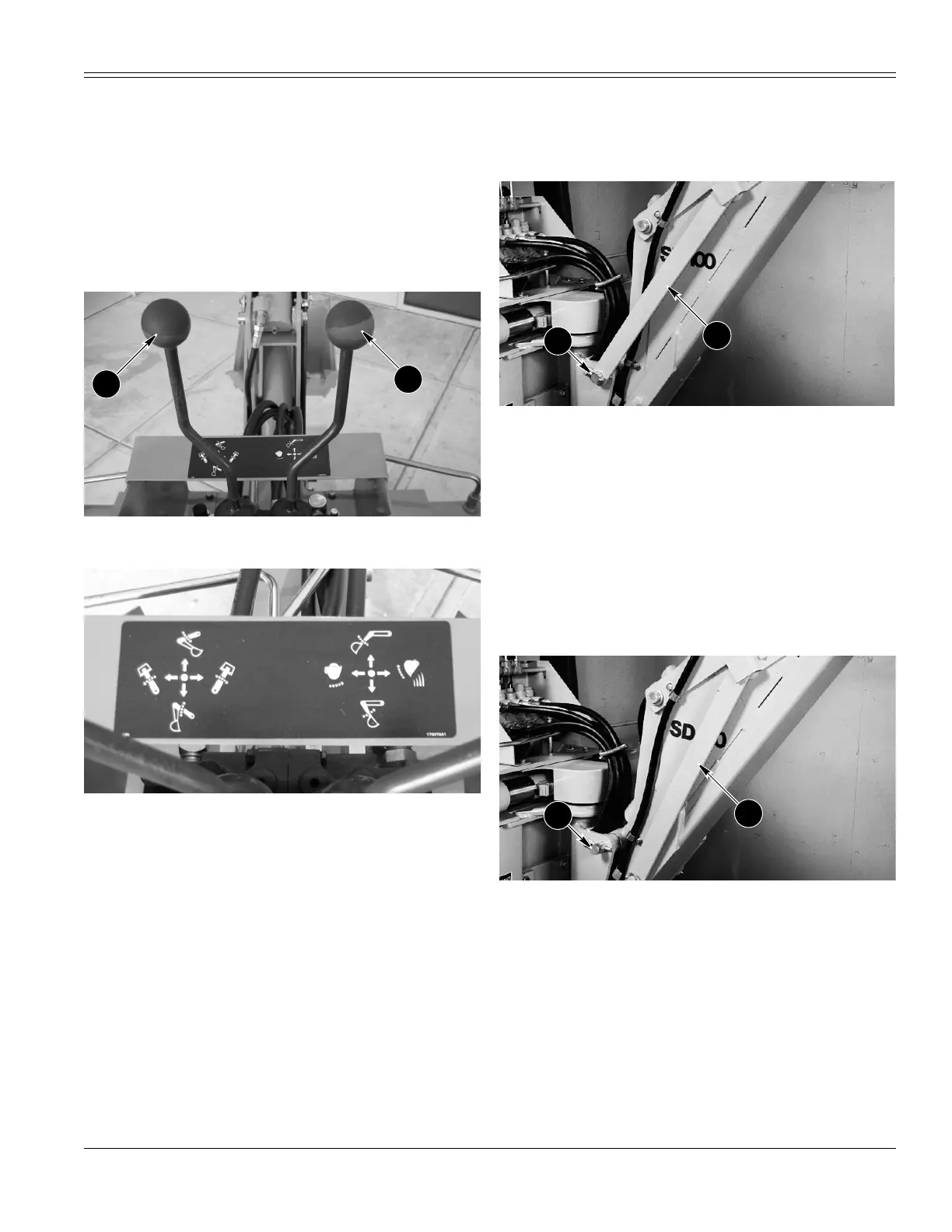

Dual Lever Controls
866214B
1. BOOM AND SWING CONTROL LEVER
2. DIPPER AND BUCKET CONTROL LEVER
29L93B
1. BOOM AND SWING CONTROL LEVER
A. Move this lever forward to lower the boom.
B. Move this lever back to raise the boom.
C. Move this lever to the left to swing the boom to the
left.
D. Move this lever to the right to swing the boom to
the right.
2. DIPPER AND BUCKET CONTROL LEVER
A. Move this lever forward to move the dipper out.
B. Move this lever back to move the dipper in.
C. Move this lever to the left to curl (load) the bucket.
D. Move this lever to the right to dump (unload) the
bucket.
BACKHOE TRANSPORT LINKS
Transport Position
866185
1. KLIK PIN 2. TRANSPORT LINK
Put the transport links in the transport position when you
are not digging with the backhoe.
1. Remove the Klik pin.
2. Move the transport link to the storage position.
3. Install the Klik pin.
4. Repeat steps 1, 2 and 3 for the transport link on the
other side of the boom.
Operating Position
866184
1. KLIK PIN 2. TRANSPORT LINK
Put the transport links in the operating position when you
are going to dig with the backhoe.
1. Remove the Klik pin.
2. Move the transport link to the storage position.
3. Install the Klik pin.
4. Repeat steps 1, 2 and 3 for the transport link on the
other side of the boom.
