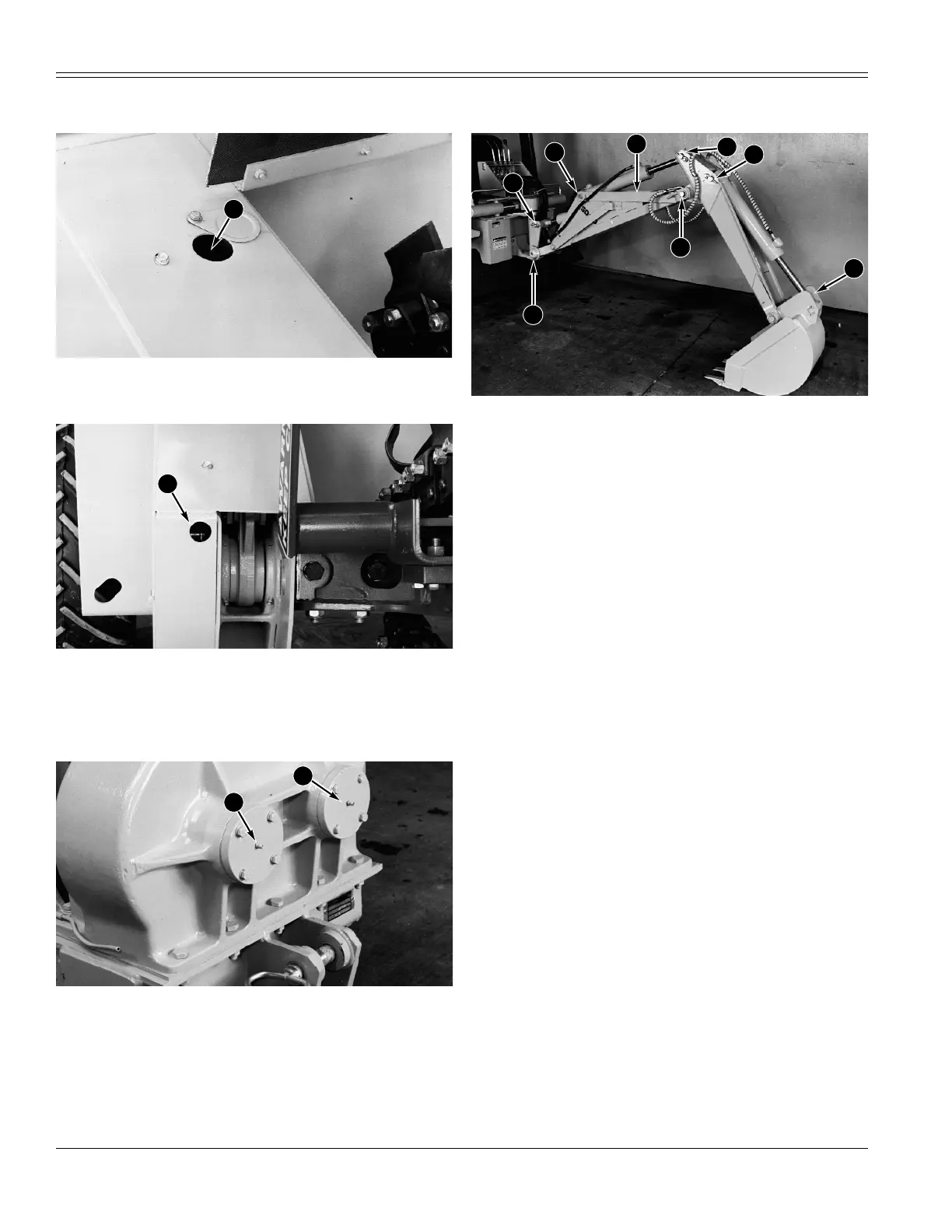

LUBRICATION
AU103170 H5B 50
Boom Cylinder Pivot
866346
1 FITTING
Trencher Drive Chain
866335
1 POINT
NOTE: Use engine oil or Astec Chain and Open Gear
Lubricant.
Plow Bearings
866201
4 FITTINGS (2 EACH SIDE)
NOTE: Use a hand operated grease gun and only two (2)
applications per fitting. Use only lithium base grease.
Backhoe (if equipped)
866209
1. Boom Pivot Point...........................................1 Fitting
2. Boom Cylinder (Closed End Pivot Point) .......... 1 Fitting
3. Boom Cylinder (Rod End Pivot Point) ..............1 Fitting
4. Dipper Cylinder (Closed End Pivot Point) .........1 Fitting
5. Dipper Cylinder (Rod End Pivot Point) .............1 Fitting
6. Dipper Pivot Point..........................................1 Fitting
7. Bucket Cylinder (Closed End Pivot).................. 1 Fitting
8. Bucket Cylinder (Rod End Pivot) .....................1 Fitting
