ADJUSTMENT/MAINTENANCE
AU103170 H5B 68
Before you operate the machine replace all ROPS
components that are damaged.
See your dealer for replaceable components.
IMPORTANT:
Do not try to weld or straighten the ROPS.

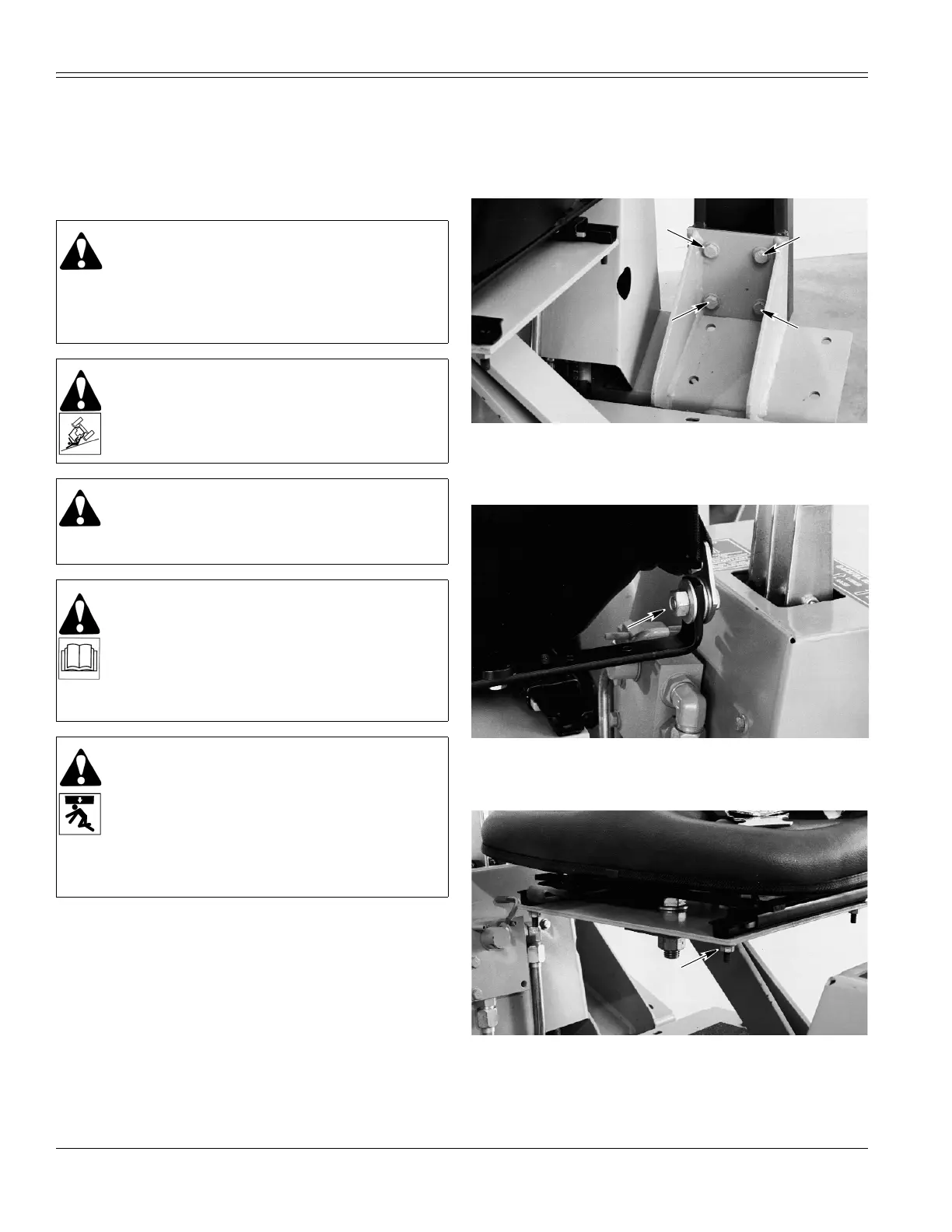

Torque Specifications
NOTE:
Torque Specifications are for clean, dry threads
.
ROPS Structure
866337
8 Bolts and Nuts (4 each side) ....94-129 Nm (70-95 lb ft)
Seat Belt Mounting
866333
2 Bolts (1 each side) ....................47-61 Nm (35-45 lb ft)
Operator’s Seat
866338
4 Bolts (2 each side) ....................15-20 Nm (10-15 lb ft)
WARNING:
Do not modify ROPS in any manner.
Unauthorized modifications such as welding,
drilling, cutting or adding attachments can
weaken the structure and reduce your protection.
Replace ROPS if subjected to roll-over or damage.
Do not attempt to repair.
WARNING:
If you try to operate this machine
without a ROPS and the machine rolls over, you
can be injured or killed. Remove the ROPS only
for service or replacement. Do not operate this
machine with the ROPS removed.
WARNING:
Adding additional weight
(attachments, etc). to the machine can cause
injury or death. Do not exceed the gross weight
printed on the ROPS label.
WARNING:
Improper ROPS inspection or
maintenance can cause injury or death. Do the
recommended ROPS inspection shown in this
manual. If you must replace the ROPS, ROPS
parts, or ROPS mounting hardware, use only the
replacement parts shown in the Astec parts
catalog for this machine.
WARNING:
You are protected by the ROPS
(Roll-Over Protective Structure) system on this
machine. The seat belt is an important part of
that ROPS system. Before you operate this
machine, always fasten the seat belt. If the
machine rolls over and you DO NOT have the seat
belt fastened, you can be crushed by the ROPS or
the machine.
