Standard 260 Digging Chain, 2 Pitch, 6” - 10” Digging Widths (50,000 lb)
Mixed - Cup and Carbide Cutters Assembly

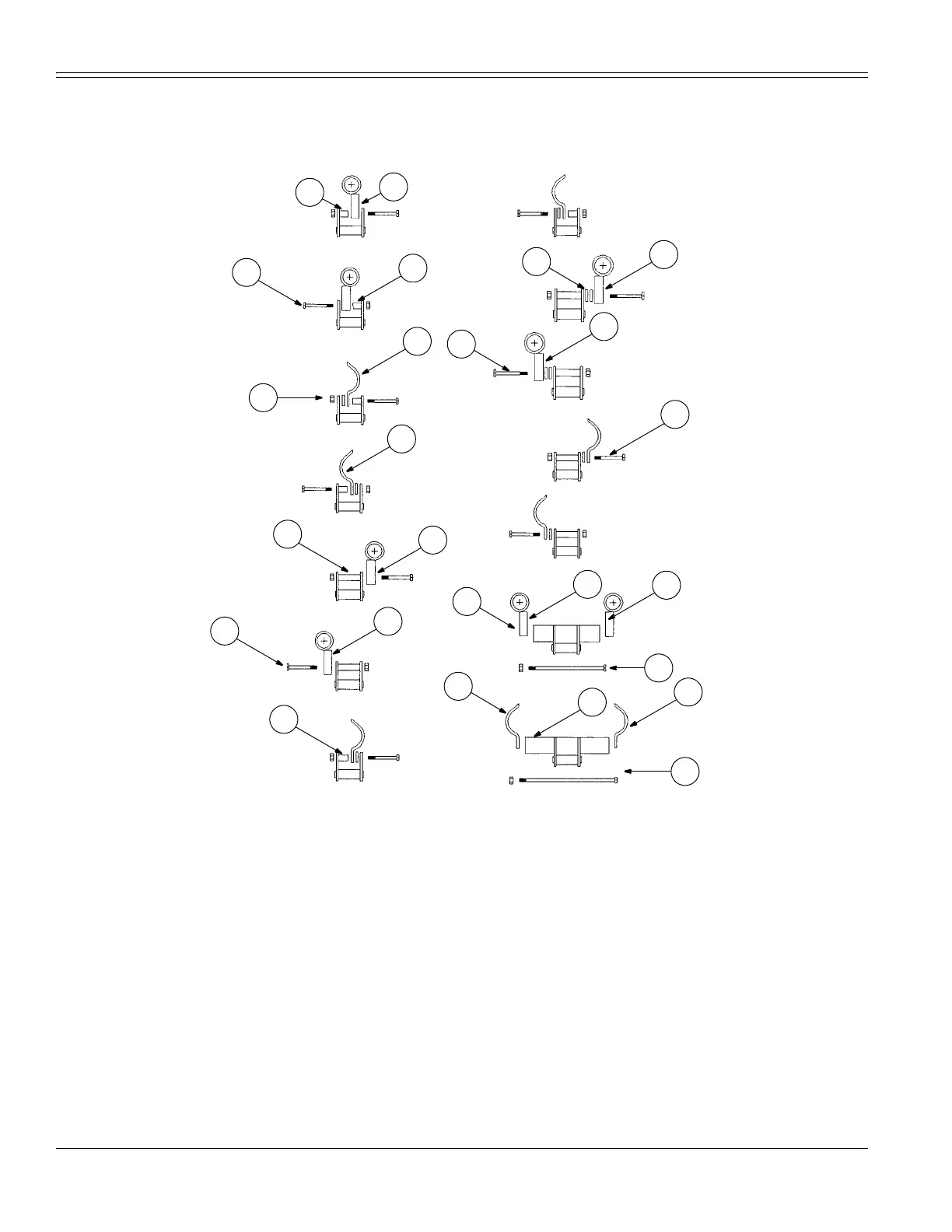

BS99G078
1. HOLDER - CARBIDE BIT, RIGHT HAND, CENTER CUT (AND 10 INCH CUT), IF REQUIRED
2. HOLDER - CARBIDE BIT, LEFT HAND, CENTER CUT (AND 10 INCH CUT,) IF REQUIRED
3. CUTTING TOOTH - LEFT HAND
4. CUTTING TOOTH - RIGHT HAND
5. HOLDER - CARBIDE BIT, LEFT HAND, 6 INCH CUT (AND 8 INCH CUT), IF REQUIRED
6. HOLDER - CARBIDE BIT, RIGHT HAND, 6 INCH CUT (AND 8 INCH CUT), IF REQUIRED
7. SPACER - TUBE, INSIDE MOUNT - USED WITH CUTTING TOOTH
8. SPACER - TUBE, INSIDE MOUNT - USED WITH CARBIDE HOLDER
9. SPACER - TUBE, OUTSIDE MOUNT
10. SPACER - FLAT - FOR 8 INCH CUT, IF REQUIRED
11. BOLT - HEX HEAD 5/8 X 3 INCH CENTER, 4 INCH CARBIDE CUT, AND 6 INCH CUTTING TOOTH CUT
12. BOLT - HEX HEAD 5/8 X 3-3/4 INCH, 6 INCH CARBIDE CUT, AND 8 INCH CUTTING TOOTH CUT, IF REQUIRED
13. BOLT - HEX HEAD 5/8 X 4-3/4 INCH, 8 INCH CARBIDE CUT, IF REQUIRED
14. BOLT - HEX HEAD 5/8 X 8-1/2 INCH, 10 INCH CARBIDE CUT, IF REQUIRED
15. BOLT - HEX HEAD 5/8 X 6-1/2 INCH, 10 INCH CUTTING TOOTH CUT, IF REQUIRED
16. LOCKNUT -5/8 INCH
17. ADAPTER FOR 10 INCH CARBIDE CUT (IF REQUIRED)
18. ADAPTER FOR 10 INCH CUTTING TOOTH CUT (IF REQUIRED)
NOTE:
Repeat the tooth sequence shown until the chain is complete.
NOTE:
If additional information is needed, see your Astec dealer for part numbers and quantities of items shown when
replacing worn or missing parts.
