SPECIFICATIONS
83 AU103170 H5B
Standard 260 Digging Chain, 2 Pitch, 6” Digging Width (50,000 lb)

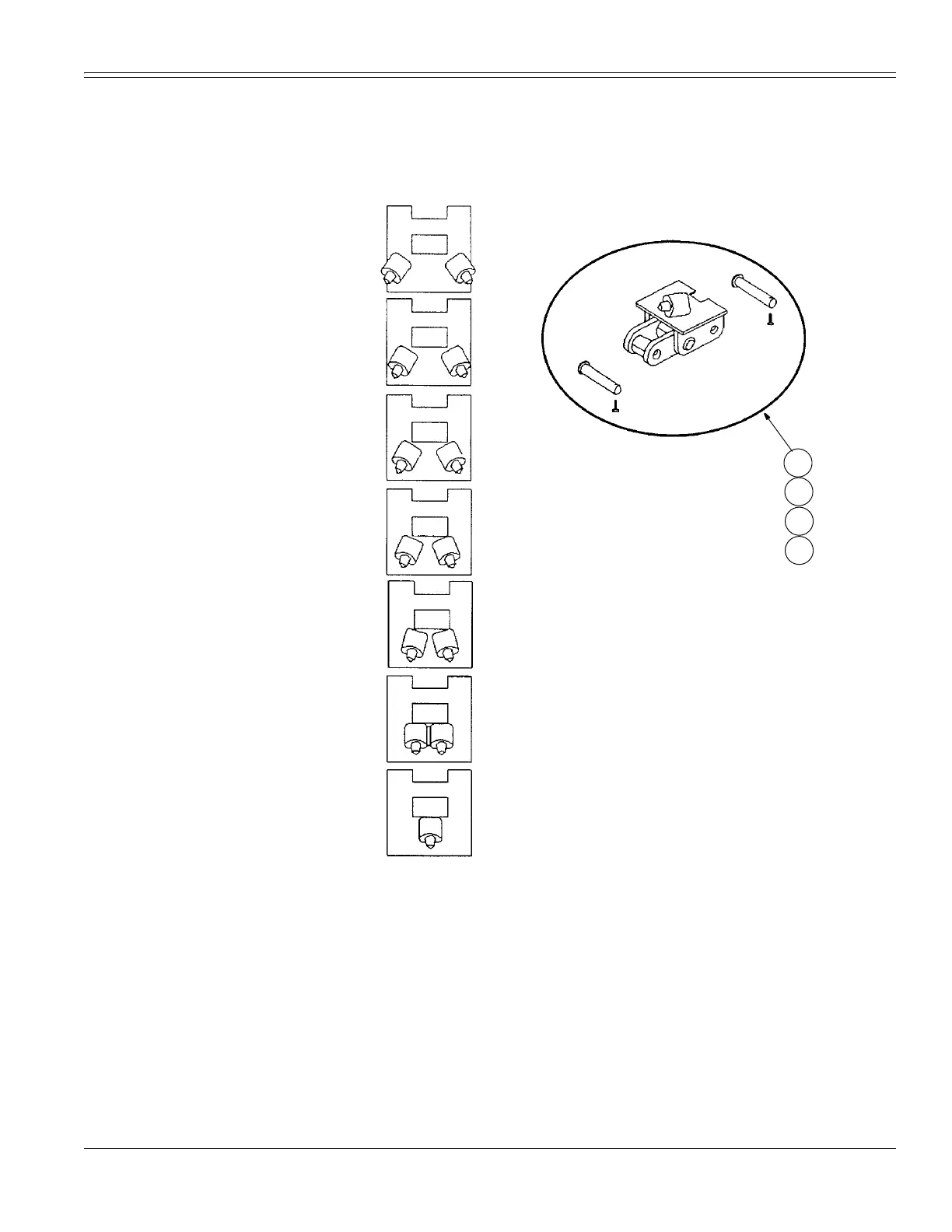

Alligator Style Cutter Assembly
BS99G102
1. 2 INCH REPAIR SECTION, INCLUDES CONNECTOR PINS 4. 4-3/4 INCH REPAIR SECTION, INCLUDES CONNECTOR PINS
2. 3 INCH REPAIR SECTION, INCLUDES CONNECTOR PINS 5. 5-1/4 INCH REPAIR SECTION, INCLUDES CONNECTOR PINS
3. 4 INCH REPAIR SECTION, INCLUDES CONNECTOR PINS 6. 6 INCH REPAIR SECTION, INCLUDES CONNECTOR PINS
NOTE:
Repeat the tooth sequence shown until the chain is complete.
NOTE:
If additional information is needed, see your Astec dealer for part numbers and quantities of items shown when
replacing worn or missing parts.
3
4
1
10.16 cm (4 in) CUT
7.62 cm (3 in) CUT
5.08 cm (2 in) CUT
CENTER CUT
2
15.24 cm (6 in) CUT
13.34 cm (5-1/4 in) CUT
12.07 cm (4-3/4 in) CUT
To Next Page
