LUBRICATION
AU103168 C7B 30

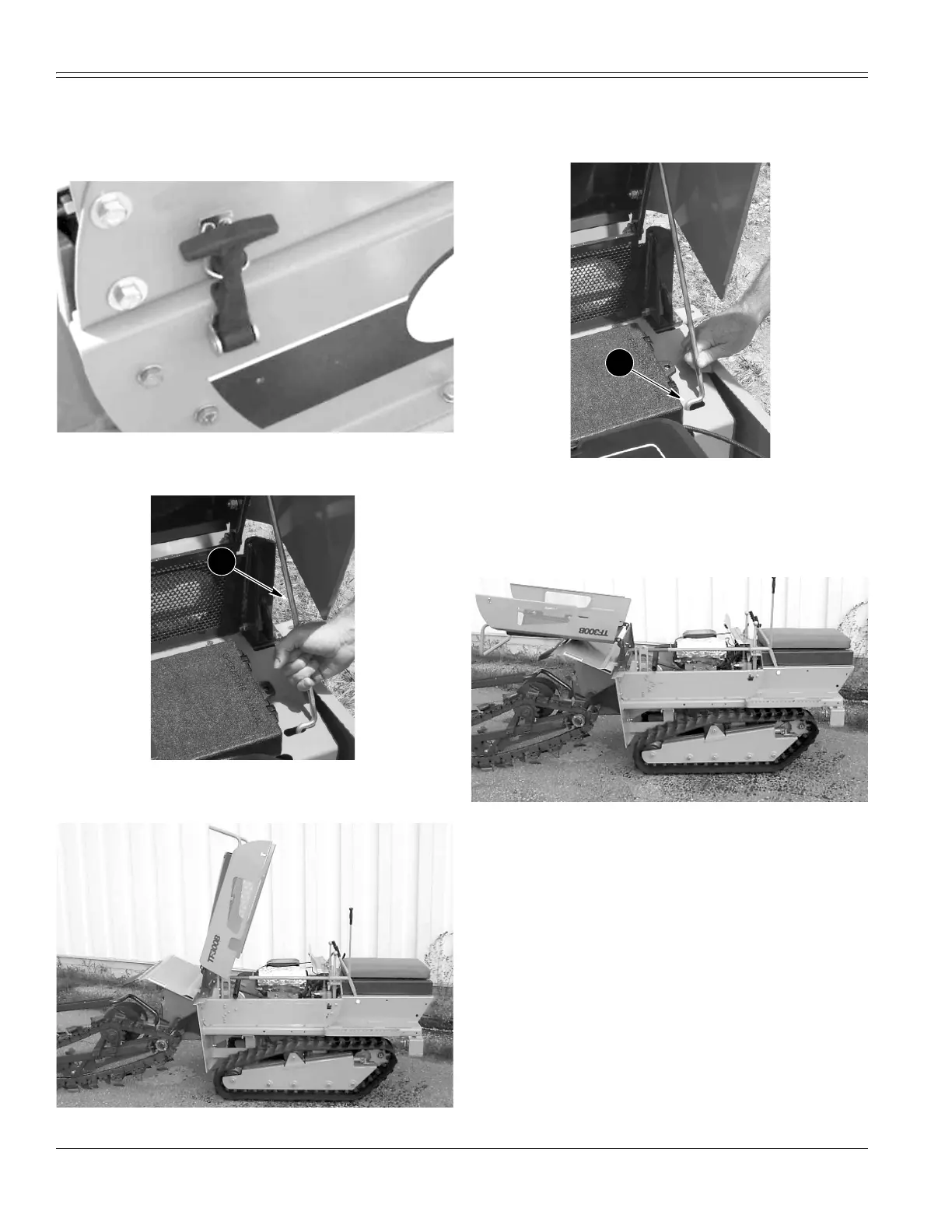

ACCESS DOORS AND COVERS
HOOD
BD01C051
Unlatch hood and raise until support rod locks into place.
One latch on each side of hood.
BD01G013
Check that rod (1) is positioned correctly in slot before
releasing grip on hood.
PIC00123
HOOD SHOWN OPEN
BD01F326
For increased service access the hood may be positioned
over center onto the front dirt guard. Push forward
slightly on the hood and push the latch toward the left
side of the slot (2), then continue to push the hood over
center.
PIC00124
HOOD OVER CENTER, FULL ACCESS
To close the hood from the wide open position, pivot hood
to the vertical position; position the rod toward the left of
the slot and enter the rod into the slotted hole.
1
1
