LUBRICATION
AU103168 C7B 40
TRANSMISSION AND GEAR
REDUCTION HOUSING

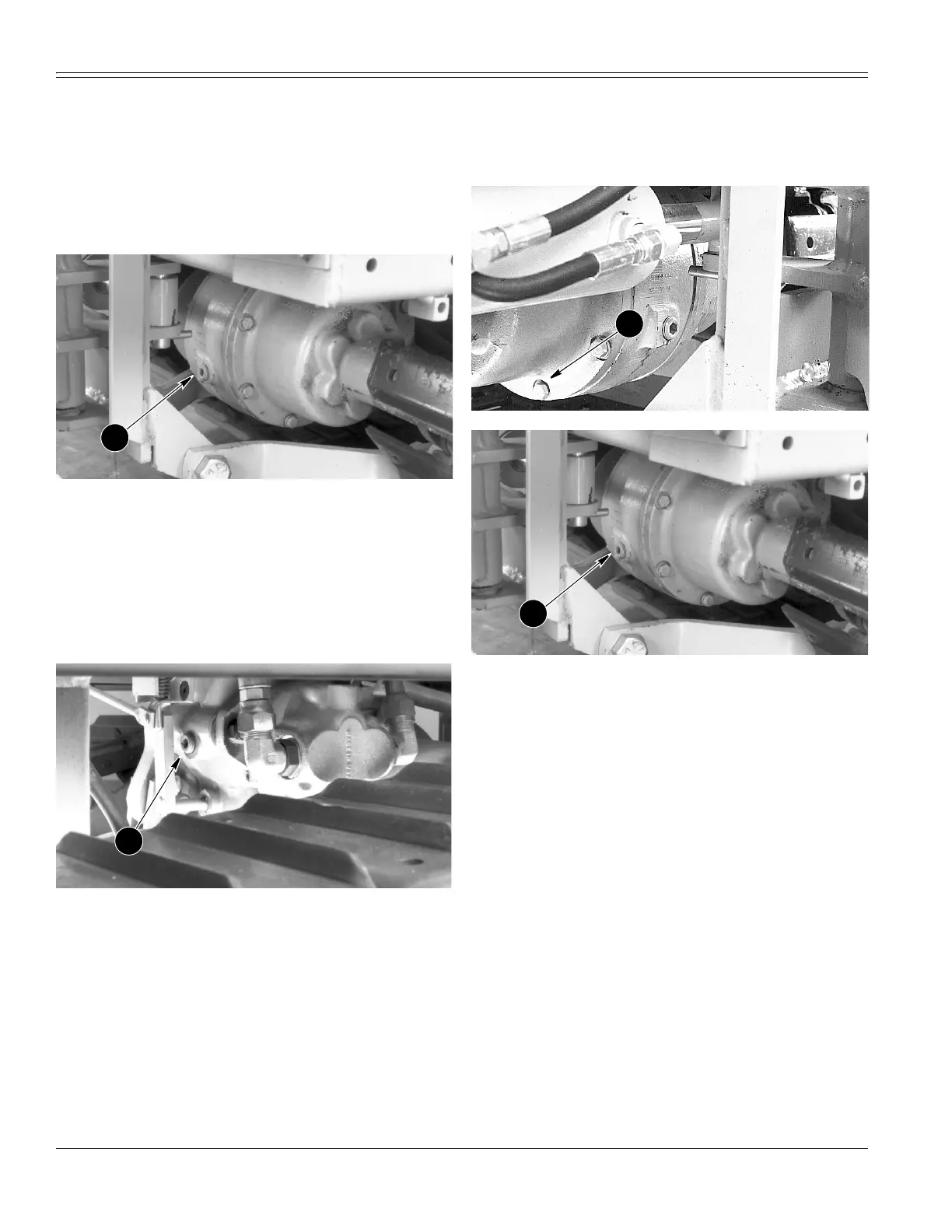

Transmission Oil Level
The transmission oil level should be checked every 250
hours of operation.
B4033690
Check the transmission oil level with the engine stopped,
key removed and the machine parked on a level surface.
Loosen and remove the level plug (1). The oil must be
even with the hole for the level plug. Add oil as necessary.
Gear Reduction Housing Oil Level
The gear reduction housing oil should be replaced every
1,000 hours of operation.
B4040890
Check the housing oil level with the engine stopped, key
removed and the machine parked on a level surface.
Loosen and remove the level plug (2). The oil must be
even with the hole for the level plug. Add oil as necessary.
Transmission Oil Change
The transmission oil should be changed every 1,000 hours
of operation.
B4040990
B4033690
1. Make sure the transmission oil is at operating
temperature.
2. Park the machine on a level surface, stop the engine
and remove the key.
3. Move the Steering Brake Levers all the way
REARWARD to lock the brakes.
4. Put a drain pan below the transmission. The
transmission holds approximately 0.95 L (1 U.S. Qt.)
of oil.
5. Loosen and remove the lowest bolt (1) on the LEFT
side of the transmission housing to drain the oil.
6. When all the oil is drained from the transmission,
install and tighten the bolt.
7. Fill the transmission through the level plug hole (2)
until the oil is even with the bottom of the hole.
8. Install and tighten the level plug.
1
2
1
2
