LUBRICATION
AU103168 C7B 38
BD01C055

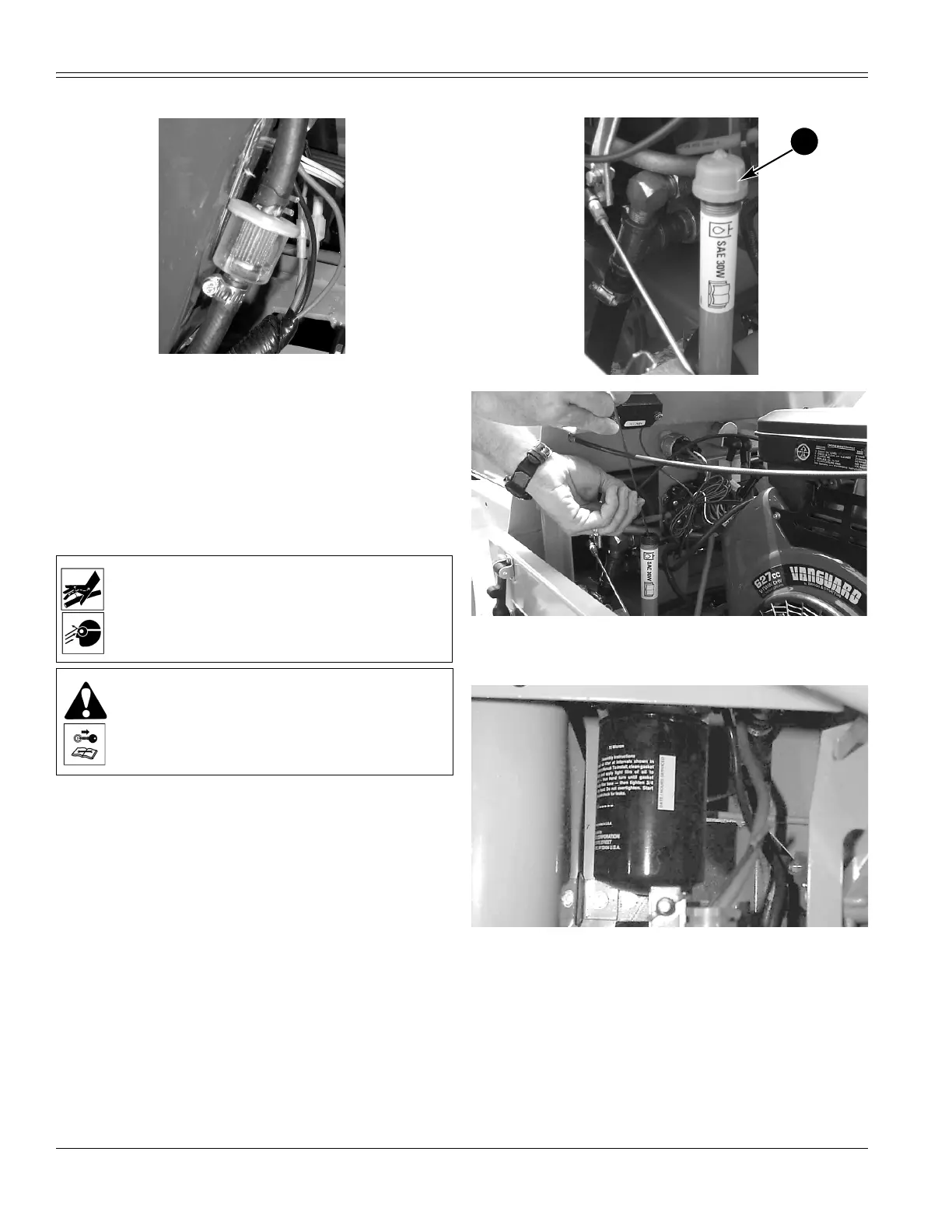

5. Remove the in-line fuel filter element clamps.
Remove old filter from fuel lines and install new
filter. Inspect fuel lines during replacement. Install
clamps.
6. Inspect routing of fuel lines to prevent rubbing on
any moving components or sharp objects.
HYDRAULIC OIL SYSTEM
Hydraulic Oil Level
Check the hydraulic reservoir oil level every 10 hours of
operation or one time each day, whichever occurs first.
1. Park the machine on a level surface.
2. Stop the engine and remove the key.
3. Open the hood.
4. Loosen and remove the dipstick (1) to check the
hydraulic oil level in the hydraulic reservoir.
5. If the oil level is below the ADD mark, add oil until the
oil level is at the FULL mark.
6. Install the dipstick after checking the oil level.
BD01F329
BD01F328
HYDRAULIC RESERVOIR DIPSTICK AND FILL TUBE
Hydraulic Filter Change
BD01C057
HYDRAULIC FILTER
1. Park the machine on a level surface and stop the
engine. Remove the key.
2. Move the Steering Brake Levers all the way
REARWARD to lock the brakes.
3. Remove the seat and seat plate.
WARNING:
Fluid under pressure can pierce
skin and cause injury or death. Stay away.
WARNING:
Shut off engine and remove key
before performing maintenance or repair work.
