ASTEC TF300B - SPECIFICATIONS

55 AU103168 C7B
SPECIFICATIONS
Boom Identification
RB97F026
* NOTE: Requires special boom mounting for 28,000 and 34,000 pound four pitch chain. Maximum width cut for
28,000 and 34,000 pound two pitch digging chain is 10 inches. Contact your dealer for additional information.
Boom Length
in Inches
Boom
Part No.
Chain
Pitch
Maximum Dig
Depth in Inches
Maximum Dig
Width in Inches
SPROCKET BOOM - One Sprocket, 164 and 165 Digging Chain
28.6 H560565 56 26 16*
45.6 H560573 76 40 10
52.2 H560938 84 45 8
SPROCKET BOOM - Two Sprockets, 164 and 165 Digging Chain
62.5 H567818 96 54 8
78.6 H567826 116 66 4
CHANNEL BOOM - 164 and 165 Digging Chain
29.2 H615559 56 26 16*
45.8 H615492 76 40 10
52.2 H615419 84 45 8

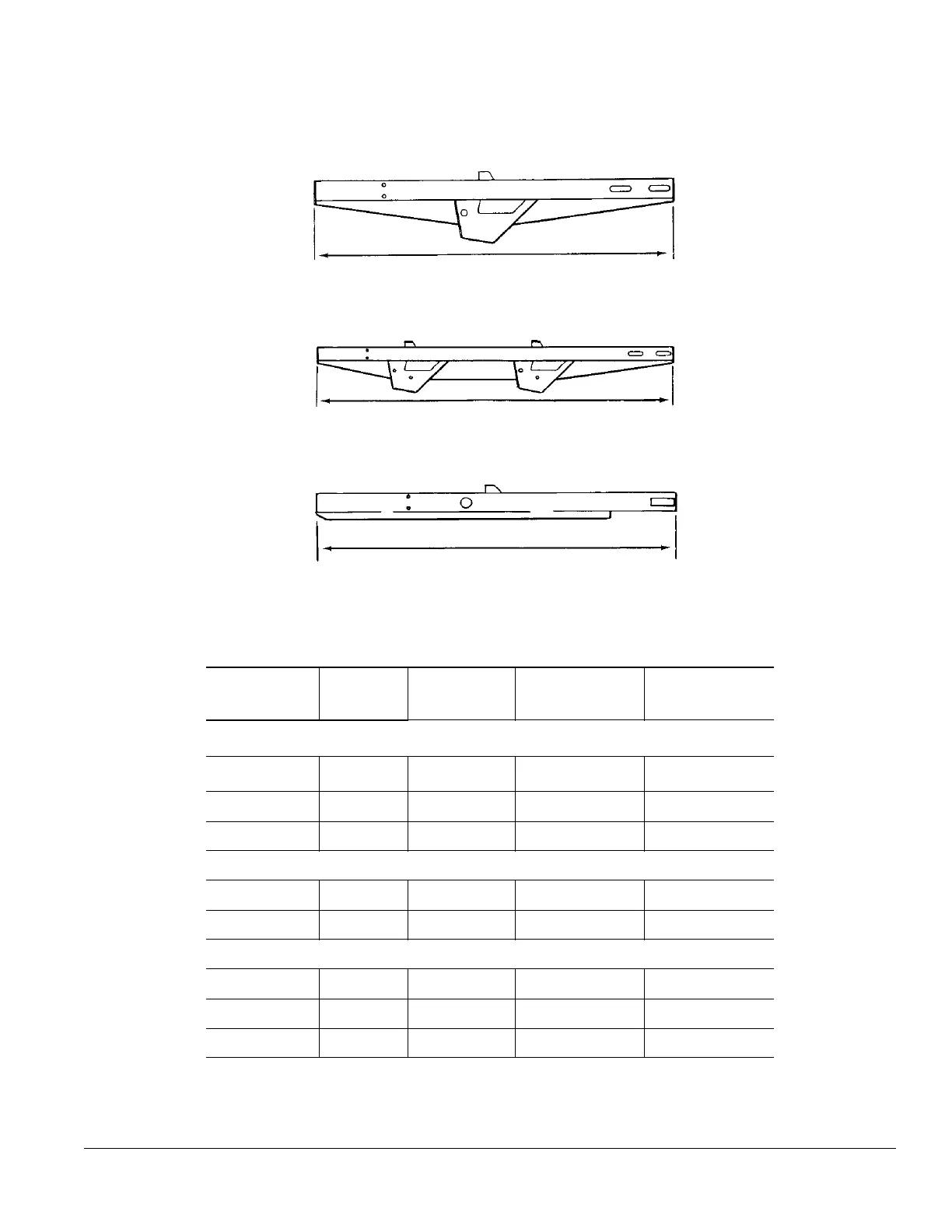

BOOM LENGTH
BOOM LENGTH
BOOM LENGTH
SPROCKET BOOM, ONE SPROCKET
SPROCKET BOOM, TWO SPROCKETS
CHANNEL BOOM, TWO SPROCKETS
