LUBRICATION
AU103168 C7B 32
LUBRICATION
BASIC MACHINE
BC01C152
1. TRENCHER BOOM MOUNT 4. TRENCHER CLUTCH YOKE
2. TRENCHER SHAFT 5. STEERING BRAKE LEVER
3. TRENCHER SHEAVE 6. TRENCHER DRIVE CHAIN

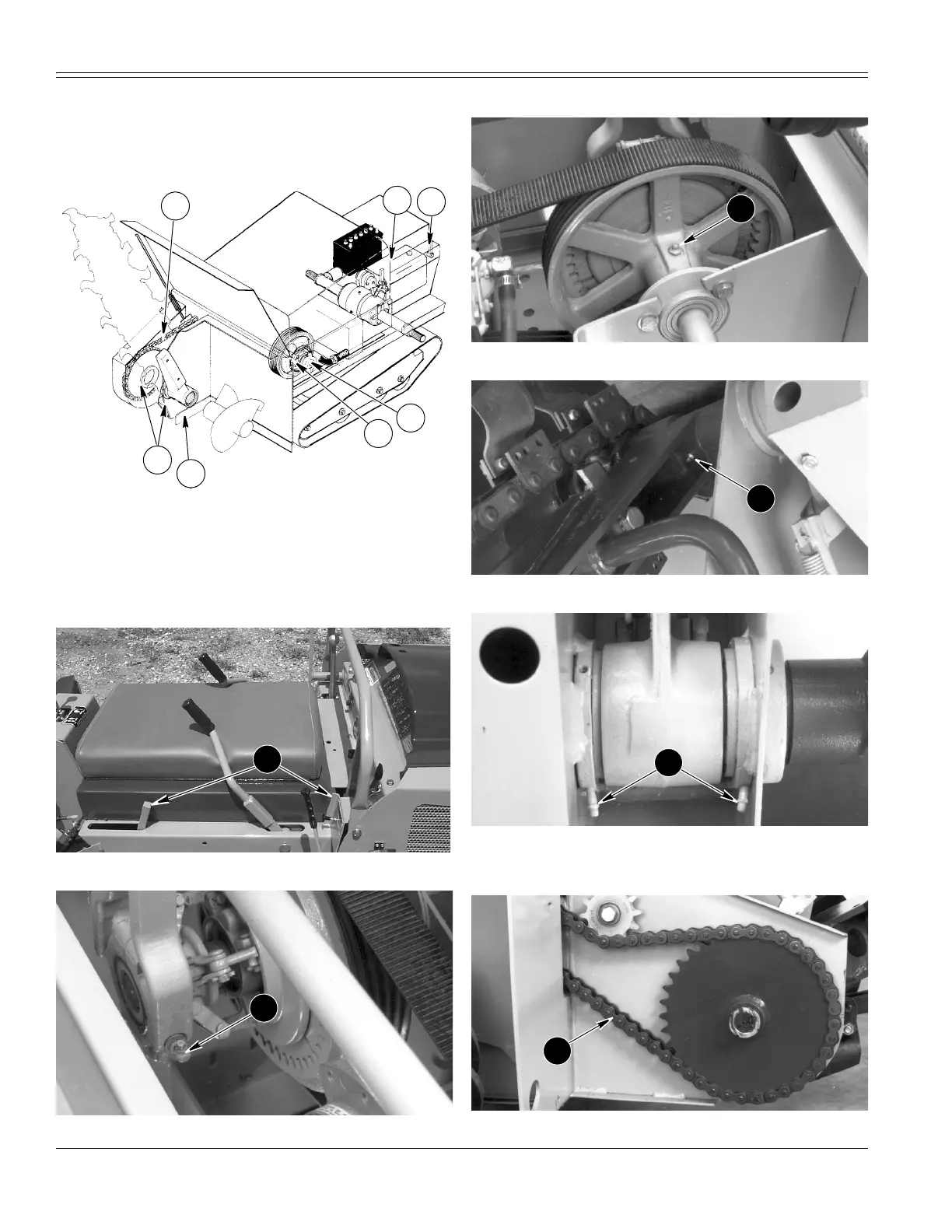

LUBRICATION POINTS
10 Hours
BD01F318
1. STEERING BRAKE LEVER (4)
B4034490
2. TRENCHER CLUTCH YOKE FITTING
B4033790
3. TRENCHER SHEAVE
B4032290
4. TRENCHER BOOM MOUNT FITTING
B4032190
5. TRENCHER SHAFT FITTINGS (2)
100 Hours
B4022588
6. TRENCHER DRIVE CHAIN
6
1
2
3
4
5
5
1
2
3
4
5
6
