ELECTRICAL
BATTERY
Battery Service
NOTE:
The electrical system in this machine is 12 volts.
Before you service components in the electrical system,
always disconnect the negative (-) battery cable.
Do not run the engine with the battery disconnected or
the alternator wires disconnected.
Do not use a steam cleaner or cleaning solvent to clean
the alternator.

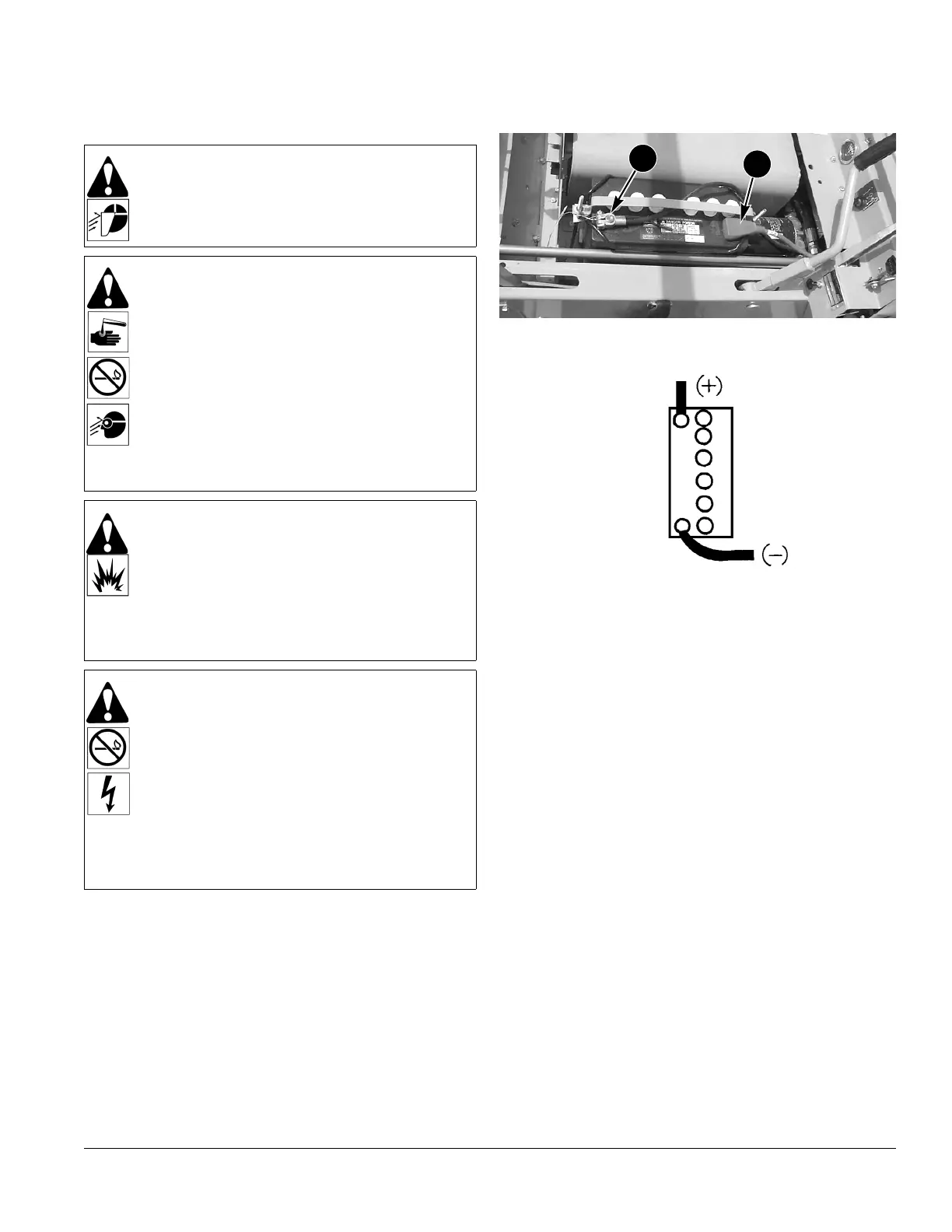

Battery Connections
BD01F315
1. NEGATIVE TERMINAL (-)
2. POSITIVE TERMINAL (+)
RT160033
BATTERY TERMINALS
Battery Fluid Level
Check the fluid level in the battery every 50 hours of
operation. Add clean drinking water or distilled water to
each cell until the fluid level is at the split ring in each cell
opening.
IMPORTANT:
If the temperature is 0 C (32 F) or below
and you have added water to the battery do the
following: Connect a battery charger to the battery or run
the engine for two hours to mix the water with the
electrolyte.
Cleaning the Battery
Check the battery regularly for dirt, corrosion and
damage. Dirt, mixed with electrolyte or moisture on the
top of the battery, can cause a discharged condition in the
battery. Use one of the following methods to clean the
battery.
1. Use Astec Battery Saver, Astec part number REN280.
Follow the instructions on the container. This cleaner
does not need water.
2. Use baking soda or ammonia and flush the outside of
the battery with water. If you do not have Astec
Battery Saver, use other special cleaners to prevent
corrosion on the battery terminals.
WARNING:
Before you service a battery,
always wear face protection, protective gloves
and protective clothing. Battery acid or battery
explosion can cause serious injuries.
WARNING:
Battery acid causes severe burns.
Batteries contain sulfuric acid. Avoid contact with
skin, eyes or clothing. Antidote - EXTERNAL: flush
with water. INTERNAL: drink large quantities of
water or milk. DO NOT induce vomiting. Seek
medical attention immediately. BATTERIES
PRODUCE EXPLOSIVE GASES. Keep sparks,
flame, lit cigars and cigarettes away. Ventilate
when charging or using in enclosed area. Always
wear eye protection when working near batteries.
Wash hands after handling. KEEP OUT OF REACH
OF CHILDREN.
WARNING:
When the battery electrolyte is
frozen, the battery can explode if, (1) you try to
charge the battery, or (2) you try to jump start
and run the engine. To prevent the battery
electrolyte from freezing, try to keep the battery
at full charge. If you do not follow these
instructions, you or others in the area can be
injured.
WARNING:
Sparks or flame can cause
hydrogen gas in a battery to explode. To prevent
an explosion, do the following:
1. When you disconnect the battery cables,
always disconnect the negative (-) battery cable
first.
2. When you connect the battery cables, always
connect the negative (-) cable last.
3. Do not short circuit the battery posts with
metal items.
4. Do not weld, grind, or smoke near a battery.
1
