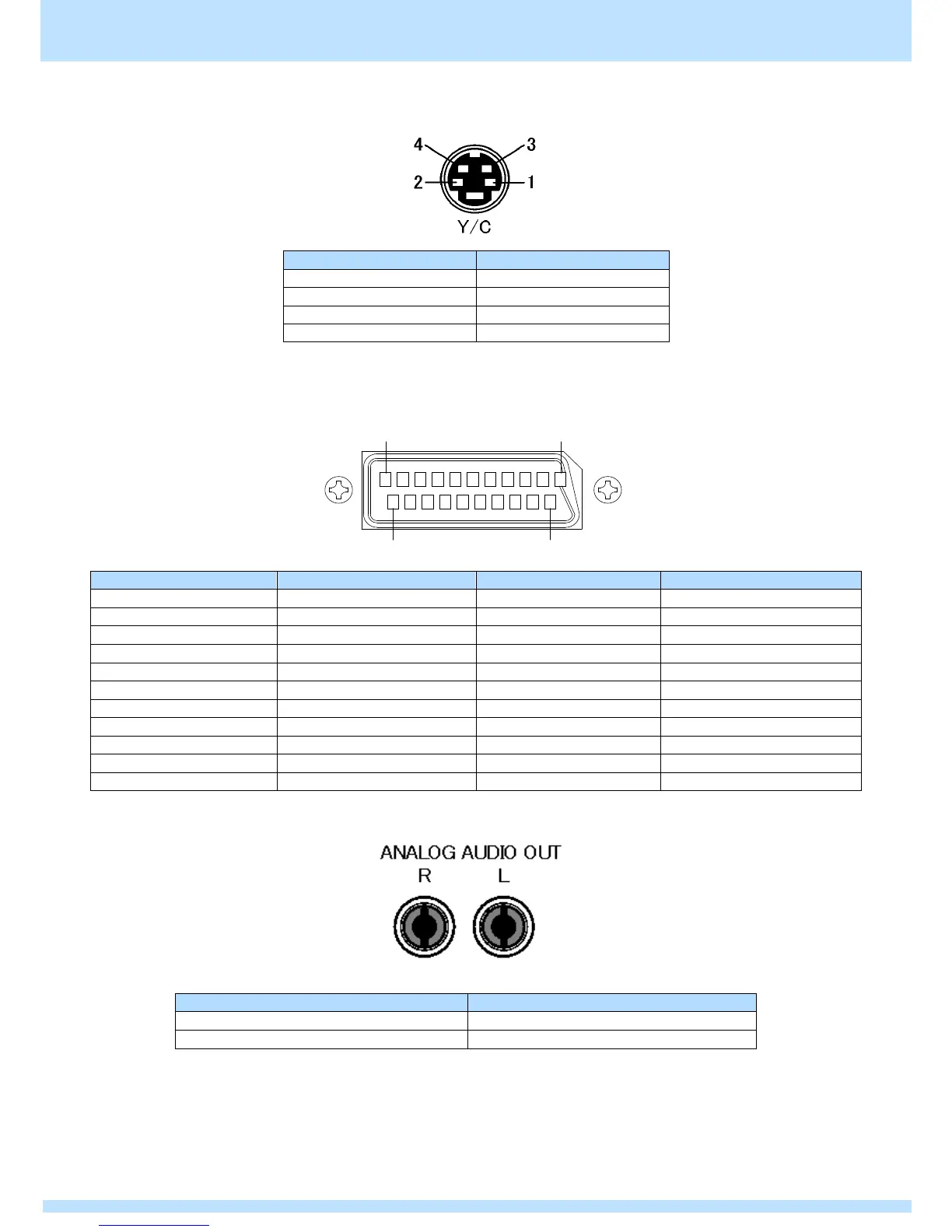

Chapter 3 Analog Output Settings (ANALOG OUTPUT)
13
● Y/C output
Pin No.
Signal
1
GND
2
GND
3
Y
4
C
● SCART output
Pin No.
Signal
Pin No.
Signal
1
Audio R output
11
Component G output
2
NC
12
NC
3
Audio L output
13
GND
4
GND
14
GND
5
GND
15
Component R output / C output
6
GND
16
RGB status
7
Component B output
17
GND
8
Video Staus
18
GND
9
GND
19
Composite / Y output / CS
10
NC
20
NC
21
GND
● Analog audio output
Connector name
Signal
R
Audio R
L
Audio L
2
1
20
21
