Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
38

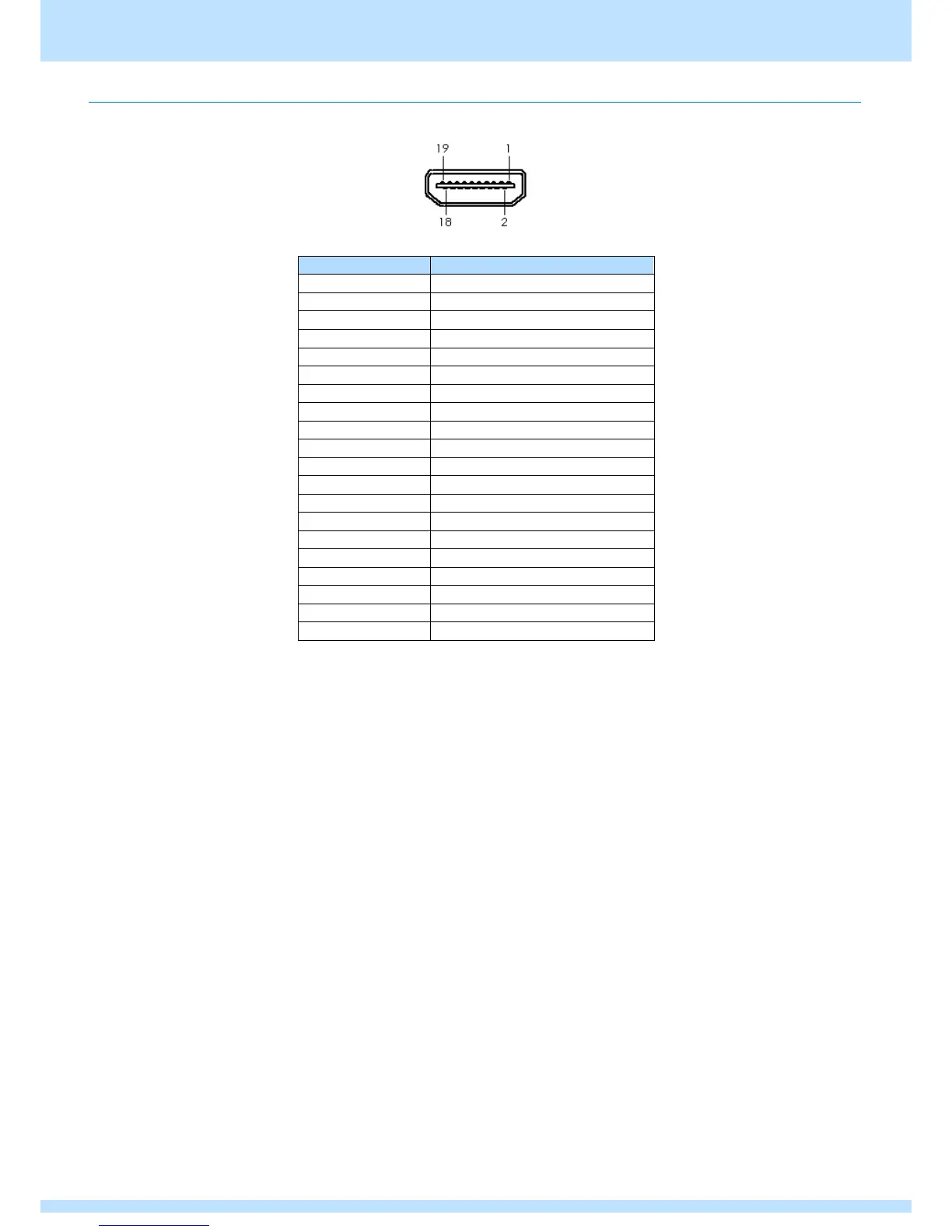

4.1.6 Connector and pin assignment
● Connector: HDMI Type A
Pin No.
Signal
1
TMDS DATA2+
2
TMDS DATA2 SHIELD
3
TMDS DATA2-
4
TMDS DATA1+
5
TMDS DATA1 SHIELD
6
TMDS DATA1-
7
TMDS DATA0+
8
TMDS DATA0 SHIELD
9
TMDS DATA0-
10
TMDS CLK+
11
TMDS CLK SHIELD
12
TMDS CLK-
13
CEC
14
RESERVE/HEAC+
15
DDC CLK
16
DDC DATA
17
GROUND (for +5V)
18
+5 V (DDC power supply*1)
19
HOT PLUG DETECT/HEAC-
Shell
FG
*1 The supply current of the DDC power supply is limited. For details, refer to “5.1 DDC power supply max power current
consumption”.
