Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
83
4.3 SDI unit functions and settings
The applicable unit is as follows.
4.3.1 SDI Unit VM-1876-M5

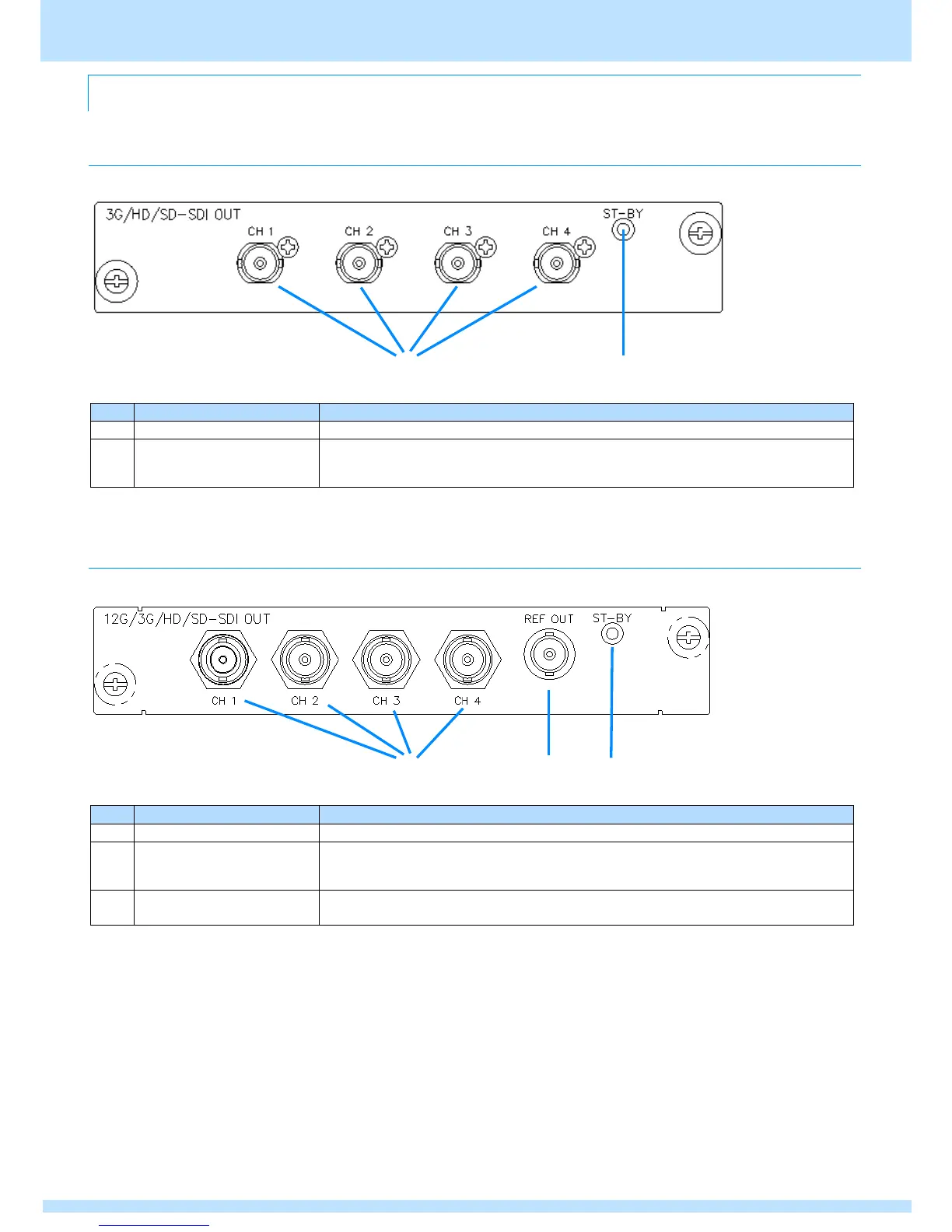

● Unit exterior diagram
No.
Name
Description
①
SDI output
Outputs in the specified format from four BNC connectors.
②
Standby LED
Lights when output preparation is complete.
On: Normal
Off: Error (module damaged, wrong slot, etc.)
4.3.2 12G-SDI Unit VM-1876-MB
● Unit exterior diagram
No.
Name
Description
①
SDI output
Outputs in the specified format from four BNC connectors.
②
Standby LED
Lights when output preparation is complete.
On: Normal
Off: Error (module damaged, wrong slot, etc.)
③
External synchronization
output
Outputs an external synchronization signal (3CS/BB). * Support is planned for the future.
