5.1 DDC power supply max power current consumption
DDC power supply runs to each VG outlet.
The maximum DCC power supply current value is as follows.
・ HDMI output・・・・・・・・・ 0.05 A total for 2CH
・ DVI output・・・・・・・・・・ 0.5 A total for 2CH
・ Analog output・・・・・・・・・ 0.5 A from VGA output
DDC power supply is output as follows.

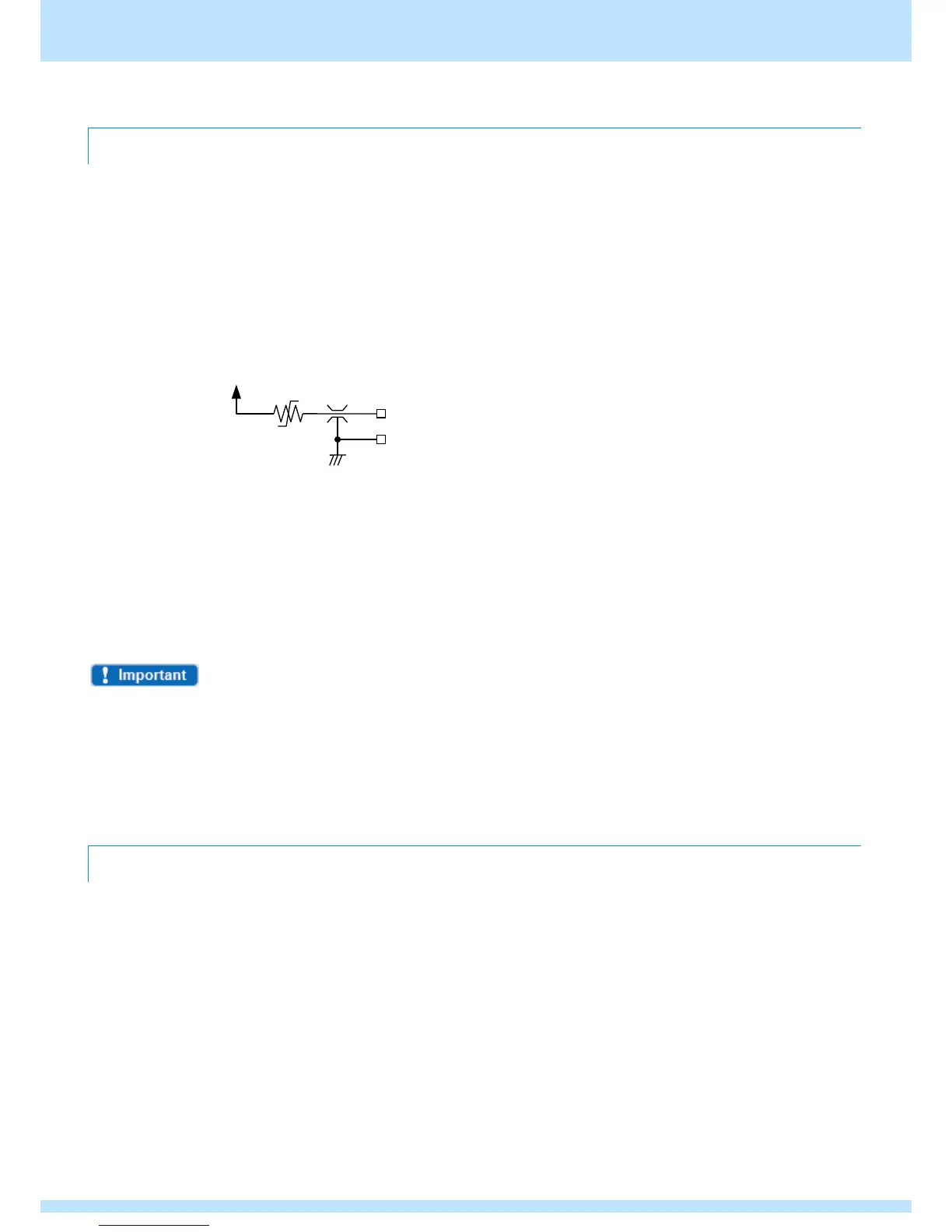

DDC power supply output circuit
1） The supply voltage differs depending on the output connector.
・ HDMI output・・・・・・・・ Fixed to +5 V
・ DVI output・・・・・・・・・ Fixed to +5 V
・ Analog (D-SUB) output・・・・ Fixed to +5 V
● Although the DDC power supply is equipped with an overcurrent protection element, avoid using it with
amperage that exceeds rated values.
● Never supply power to the DDC power supply from the connected device. When connected, the VG or
connected device may be damaged.
5.2 Trademarks
HDMI, HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
