4.6 Synchronization unit (multiple VG unit synchronization) functions and
settings
The applicable unit is as follows.
4.6.1 VM-1876-MX output parts

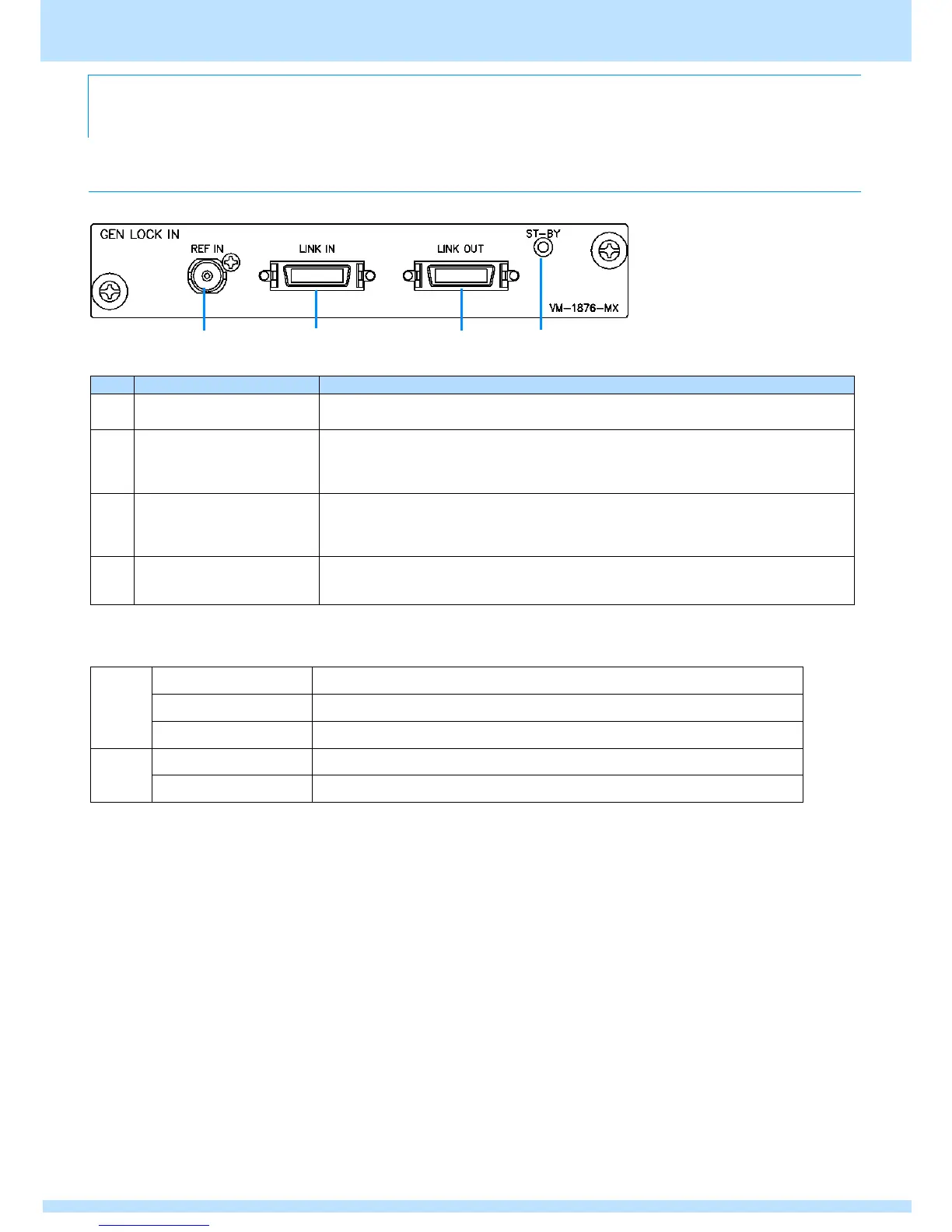

● Unit exterior diagram
No.
Name
Description
①
External synchronization
signal input
For future expansion.
②
Multi link input
Dedicated terminal for synchronization operation between other VG-876 synchronization
units.
(MDR 26-pin connector)
Connect this with the multi link output of the synchronization unit at the previous stage.*
③
Multi link output
Dedicated terminal for synchronization operation between other VG-876 synchronization
units.
(MDR 26-pin connector)
Connect this with the multi link input of the synchronization unit at the subsequent stage.*
④
Standby LED
Lights when output preparation is complete.
On: Normal
Off: Error (module damaged, wrong slot, etc.)
● Specifications
REF IN
Connector
BNC x1
Signal level
For future expansion.
Signal standard
For future expansion.
LINK
IN/OUT
Connector
1 of each MDR -26-pin connector
Signal level
LVDS
①
②
③
④
