Chapter 3 Analog Output Settings (ANALOG OUTPUT)
9
Chapter 3 Analog Output Settings (ANALOG OUTPUT)
3.1 Analog unit functions and settings
The applicable unit is as follows.
3.1.1 Analog Unit VM-1876-MA

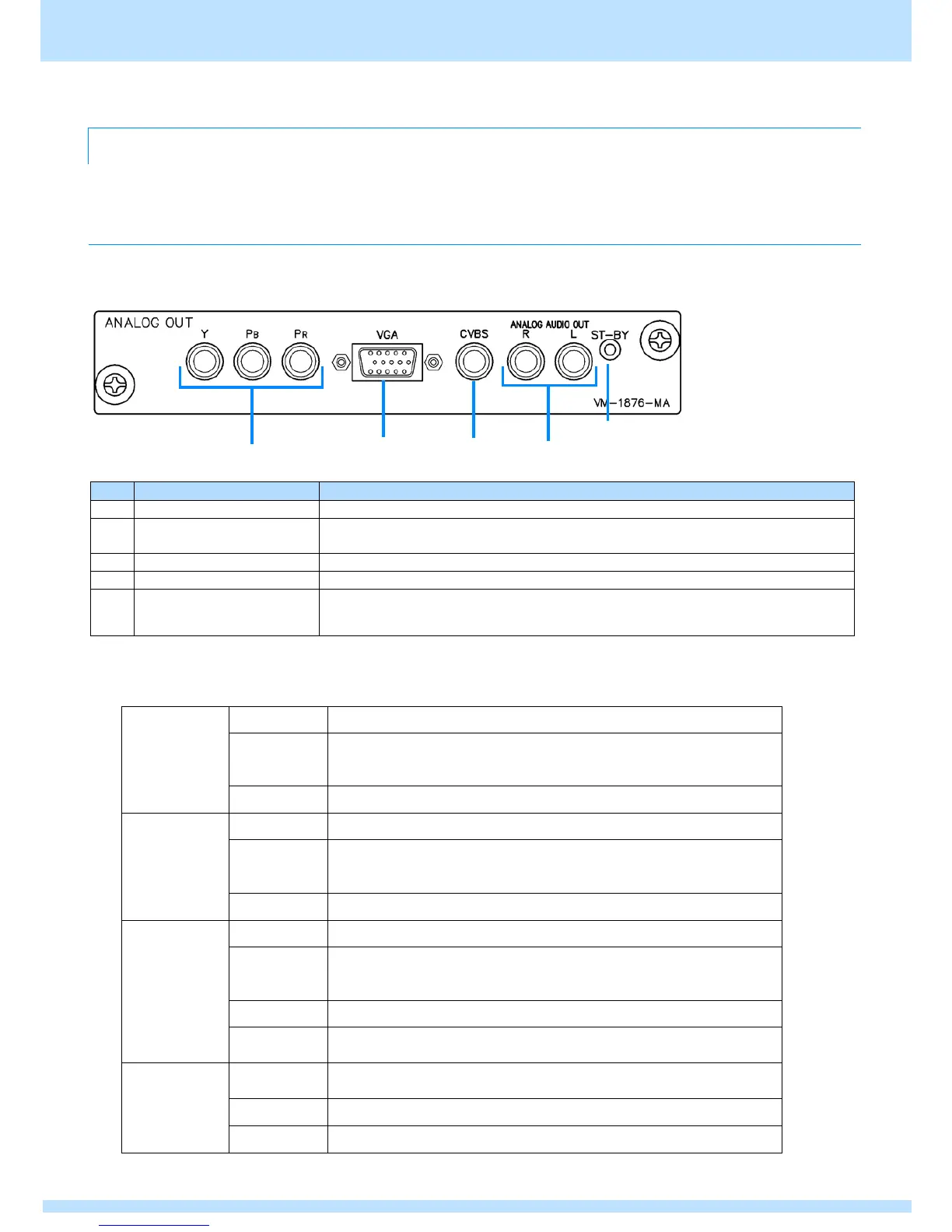

● Unit exterior diagram
No.
Name
Description
①
Component output
Can output YPBPR analog component signals. (RCA connector)
②
VGA output
Can output analog component signal (RGB) and H/V separate sync. (DSUB connector,
shrink D-Sub 15-pin)
③
CVBS output
Can output NTSC/PAL composite (VBS) signal. (RCA connector)
④
Analog audio output
Can output analog audio (L/R). (RCA connector)
⑤
Standby LED
Lights when output preparation is complete.
On: Normal
Off: Error (module damaged, wrong slot, etc.)
● Specifications
VGA
DotCLK
5 to 165 MHz
Number of
colors, bit
length
RGB - 8 bit each
Connector
Dsub x1
YPbPr
Resolution
HDTV, SDTV
Number of
colors, bit
length
YPbPr - 8 bit each
Connector
RCA x3
CVBS
Resolution
NTSC-M/J/443, PAL (B/D/G/H/I)/M/Nc
Number of
colors, bit
length
YPbPr - 8 bit each
Connector
RCA x1
Added
functions
Teletext, ClosedCaption, Vchip, Macrovision*
AUDIO
L/R
Output
frequency
100 to 20 kHz (Sampling frequency: 48 kHz)
Output level
0 to 4000 mV
Connector
RCA x2
* Macrovision function is available when a license is purchased.
①
②
③
④
⑤
