Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
32
4.1.3 HDMI HDCP2.2 Unit VM-1876-M7

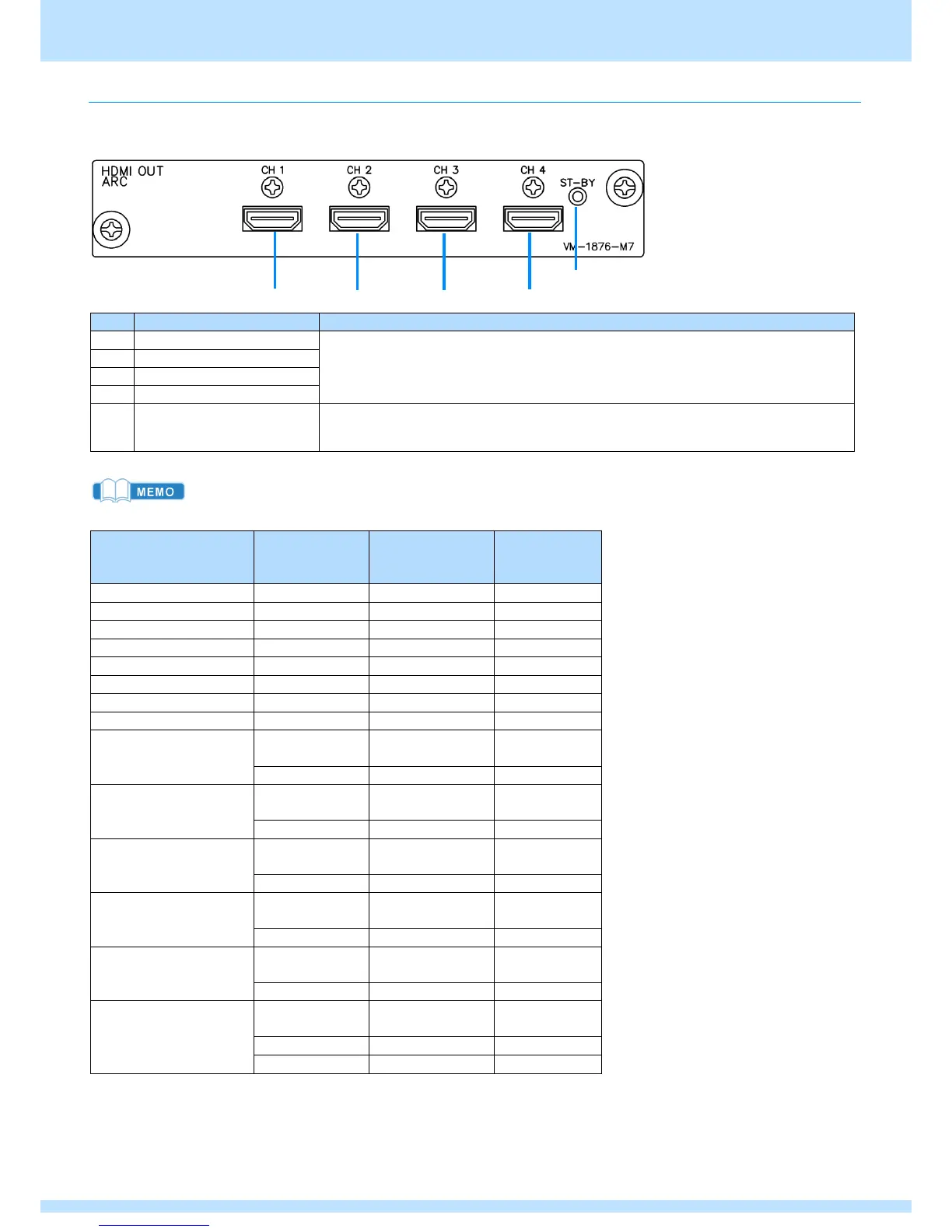

● Unit exterior diagram
No.
Name
Description
①
HDMI 1
This is HDMI digital video/audio output terminal 1 to 4. (Supports HDCP)
②
HDMI 2
③
HDMI 3
④
HDMI 4
⑤
Standby LED
Lights when output preparation is complete.
On: Normal
Off: Error (module damaged, wrong slot, etc.)
[Compatible Formats]
2D Video Resolution
Pixel Format
Color Depth
(bits per pixel)
Maximum
Frame Rate
(Hz)
VGA
RGB
24
60
WVGA
RGB
24
60
SVGA
RGB
24
60
XGA
RGB
24
60
UXGA
RGB
24
60
WUXGA
RGB
24
60
QXGA
RGB
24
60
WQXGA
RGB
24
60
480p/i
RGB
YCbCr 4:4:4
24, 36
60
YCbCr 4:2:2
16, 24
576p/i
RGB
YCbCr 4:4:4
24, 36
50
YCbCr 4:2:2
16, 24
720p
RGB
YCbCr 4:4:4
24, 36
50/60
YCbCr 4:2:2
16, 24
1080i
RGB
YCbCr 4:4:4
24, 36
50/60
YCbCr 4:2:2
16, 24
1080p
RGB
YCbCr 4:4:4
24, 36
50/60
YCbCr 4:2:2
16, 24
4K x 2K
RGB
YCbCr 4:4:4
24, 36
24/25/30
YCbCr 4:2:2
16, 24
YCbCr 4:2:0
12
50/60
①
②
③
④
⑤
