Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
34
4.1.4 HDMI 6G HDCP2.2 Unit VM-1876-M8

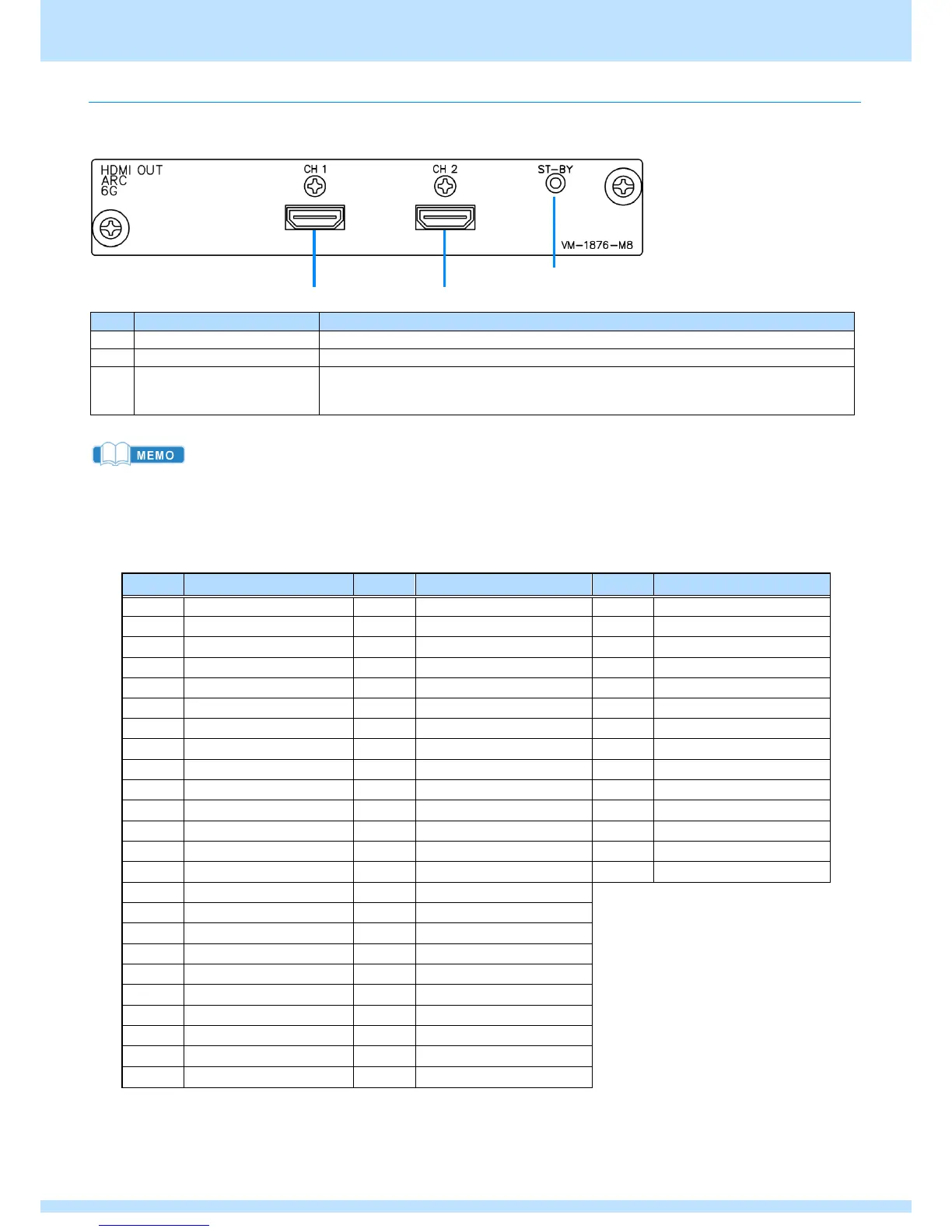

● Unit exterior diagram
This is HDMI digital video/audio output terminal 1. (Supports HDCP)
This is HDMI digital video/audio output terminal 2. (Supports HDCP)
Lights when output preparation is complete.
On: Normal
Off: Error (module damaged, wrong slot, etc.)
● Data transfer speed (TMDS clock) is CEA-861-F standard Video Identification Code
Only (VIC) VIC1 to 90, 93 to 108, and the following VESA compatible format Timing are available for output.
● 3D display is only compatible with Top and Bottom and Side By Side (Half).
[VESA Compatible Formats]
To Next Page
